Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the oil filler cap and the engine appearance cover. Install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
Disconnect the vacuum pump inlet tube coupling.

Courtesy of FORD MOTOR COMPANY
NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.

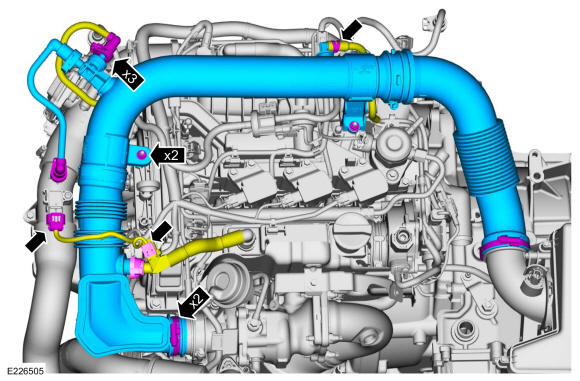

1. Loosen the air cleaner outlet pipe clamps, remove the nuts. Disconnect the vacuum tube from air outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer
  Torque

  :1: 97 lb.in (11 Nm)2: 35 lb.in (4 Nm)
2. Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
3. Disconnect the PCV coupling.
4. If equipped, disconnect the crankcase pressure sensor electrical connector.
5. Disconnect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.
6. Clean, inspect, and cover all open ports.
Courtesy of FORD MOTOR COMPANY

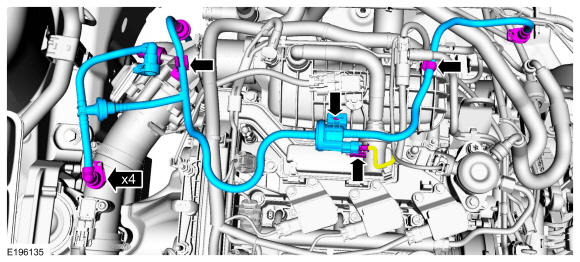

- Disconnect the fuel evaporative tube quick release couplings. Refer to: Quick Release Coupling .
- Disconnect the EVAP canister purge valve electrical connector. Detach the retainers and remove the fuel evaporative tube assembly.
Courtesy of FORD MOTOR COMPANY

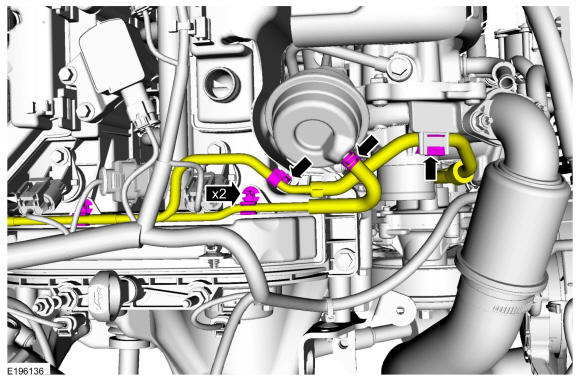

Detach the retainers, clamp and position the vacuum tubes aside. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Refer to: Fuel Rail .
2. Refer to: High-Pressure Fuel Pump .

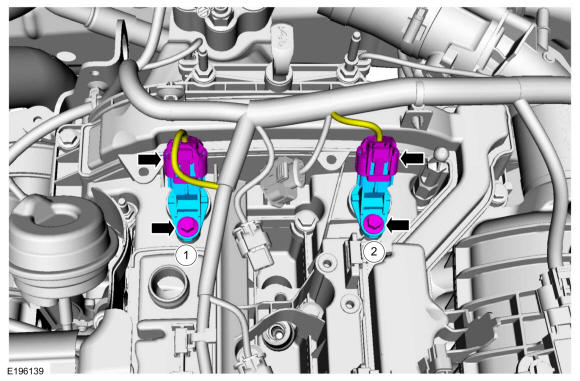

1. Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
  Material

  : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  Torque

  : 89 lb.in (10 Nm)
2. Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
  Material

  : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

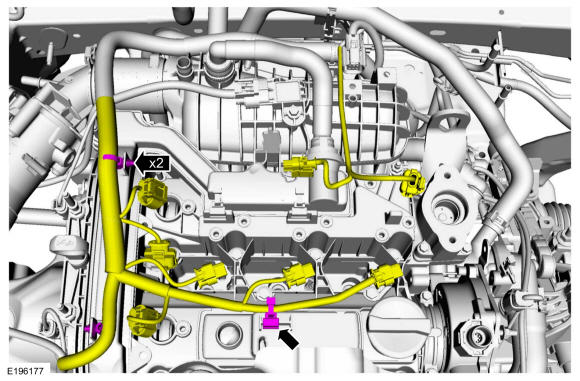

Detach the retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

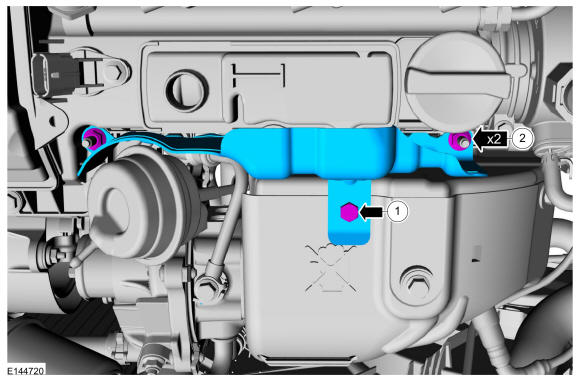

Remove the bolt, nuts and the heat shield.
Torque

:1: 97 lb.in (11 Nm)2: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the PCV tube coupling.

Courtesy of FORD MOTOR COMPANY
- Remove the oil level indicator.
- Remove the studs, bolts and the valve cover.
Courtesy of FORD MOTOR COMPANY
Inspect the valve cover gasket, replace if necessary.
