Section 3 (Manual Transmission - 6-Speed Manual Transmission - B6): Installation: Transmission

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-115A (205-115) Installer, Drive Pinion Seal
Transmission Jack
Retaining Strap
Wooden Block

Materials

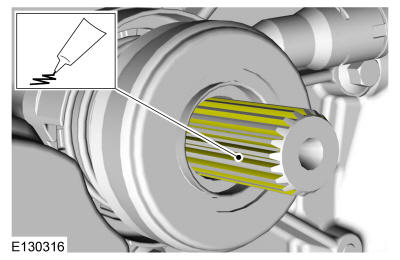

1. Apply a thin coating of grease on the input shaft.

   Material: Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

   Courtesy of FORD MOTOR COMPANY

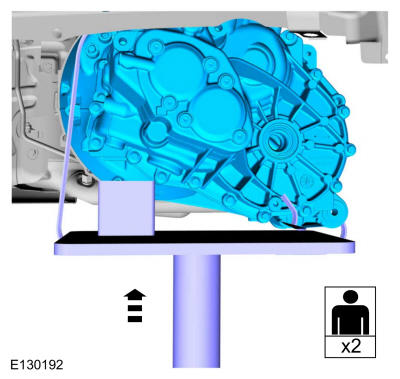

2. Install the following items:
   • Use the General Equipment: Wooden Block
   • Use the General Equipment: Transmission Jack
   • Use the General Equipment: Retaining Strap

   Courtesy of FORD MOTOR COMPANY

3. Install the transmission on the dowel pins and install the bellhousing bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Remove the following items:
   • Use the General Equipment: Retaining Strap
   • Use the General Equipment: Transmission Jack
   • Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

5. Install the transmission support insulator bracket and the bolts.

   Torque: 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

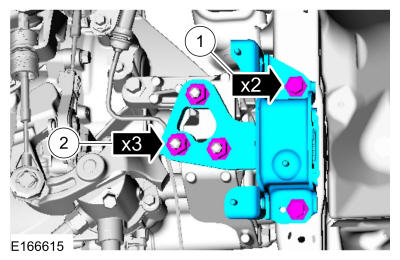

6. 1. Install the transmission support insulator bracket bolts.

      Torque: 66 lb.ft (90 Nm)

   2. Install the transmission support insulator bracket nuts.

      Torque: 92 lb.ft (125 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Connect the slave cylinder hydraulic tube to the slave cylinder.

   Courtesy of FORD MOTOR COMPANY

8. Install the cowl panel. Refer to: Cowl Panel .
9. NOTE: Note the different lengths of the bolts.

   Install the lower bellhousing bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: If the transmission has been replaced or overhauled, the seals do not need to be replaced.

    Remove and discard the LH halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

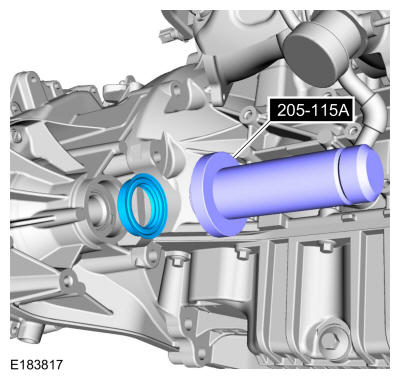

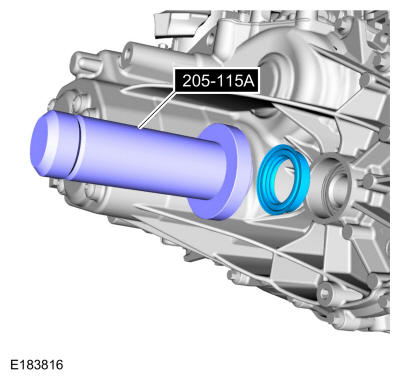

11. Using the special tool, install a new LH halfshaft seal. Use Special Service Tool: 205-115A (205-115) Installer, Drive Pinion Seal.

    Courtesy of FORD MOTOR COMPANY

12. Install the halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

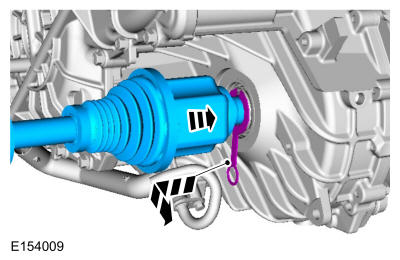

13. NOTE: Do not fully install shaft at this time.
    • Using part: AA5P-4N206-A. Pull the LH halfshaft outward to make sure the circlip is locked.
    • Remove the special tool before completely installing the halfshaft.

    Courtesy of FORD MOTOR COMPANY

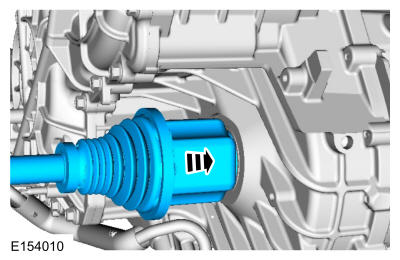

14. NOTE: Insert halfshaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.

    Remove the seal protector and fully insert the LH halfshaft until the circlip is seated.

    Courtesy of FORD MOTOR COMPANY

15. Install the LH brake hose on the strut.

    Torque: 19 lb.ft (26 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: If the transmission has been replaced or overhauled, the seals do not need to be replaced.

    Remove and discard the RH halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

17. Using the special tool install the new RH halfshaft seal. Use Special Service Tool: 205-115A (205-115) Installer, Drive Pinion Seal.

    Courtesy of FORD MOTOR COMPANY

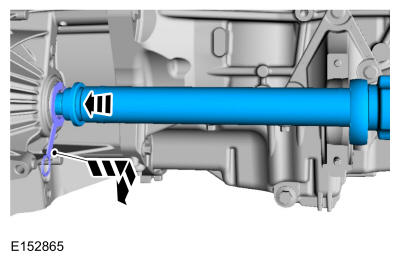

18. NOTE: Do not fully install shaft at this time.
    • Using part: AA5P-4N206-A.
    • Remove the special tool before completely installing the halfshaft.

    Courtesy of FORD MOTOR COMPANY

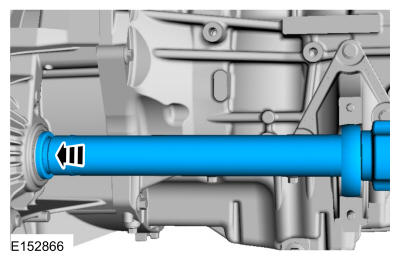

19. NOTE: Insert the intermediate shaft into the transmission until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

    Install the RH halfshaft.

    Courtesy of FORD MOTOR COMPANY

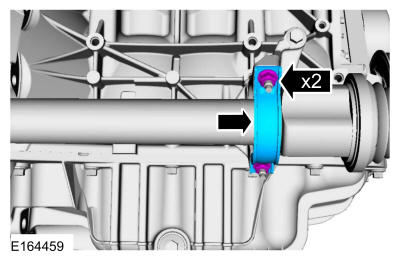

20. Tighten: Install the new half shaft bearing strap and nuts.

    Torque: Stage 1: Lower nut: 44 lb.in (5 Nm) Stage 2: Upper nut: 18 lb.ft (25 Nm) Stage 3: Lower nut: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Install the RH brake hose on the strut.

    Torque: 19 lb.ft (26 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Install the subframe. Refer to: Front Subframe .
23. Install the bolts and the roll restrictor.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Install the catalytic converter support bracket.

    Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

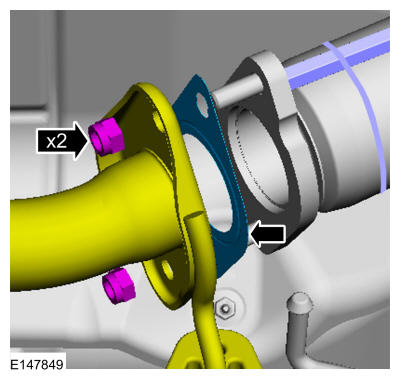

25. Install the muffler and tailpipe flange nuts and gasket.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the rear exhaust hanger isolator.

    Courtesy of FORD MOTOR COMPANY

27. Remove the flexpipe support.

    Courtesy of FORD MOTOR COMPANY

28. Install the CAC inlet tube assembly.
    1. Install the clamps.

       Torque: 44 lb.in (5 Nm)

    2. Install the nuts.

       Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Install the CAC outlet tube assembly and connect the electrical connector.
    1. Install the nut.

       Torque: 97 lb.in (11 Nm)

    2. Tighten the clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

30. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

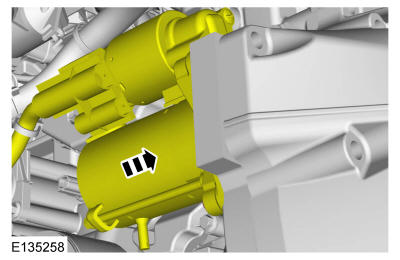

31. Install the starter motor.

    Courtesy of FORD MOTOR COMPANY

32. If equipped. Install ground cable mounting, bolts and retainers.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Install the bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the shift cable bracket and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Install the transmission shift cables.
    • Connect the electrical connector.
    • Slide the locking tab and install selector lever cables on the transmission.

    Courtesy of FORD MOTOR COMPANY

36. Adjust the gearshift cable. Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6 .
37. Install the battery tray bracket and nuts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Install the wiring harness.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Install the battery tray. Refer to: Battery Tray - 1.6L EcoBoost (132kW/180PS) - Sigma .
40. Bleed the clutch system. Refer to: Clutch System Bleeding .

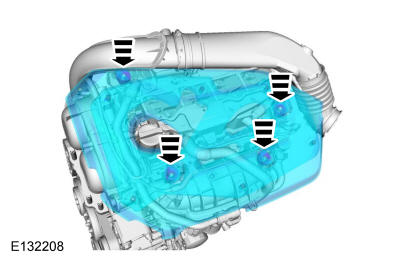

41. If equipped. Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
