Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

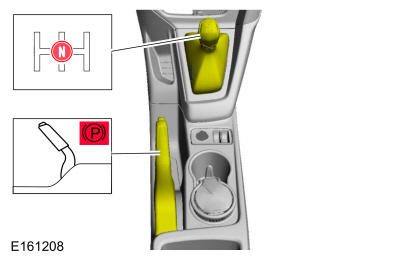

1. Position the gearshift in N and apply the P brake.

   Courtesy of FORD MOTOR COMPANY

2. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

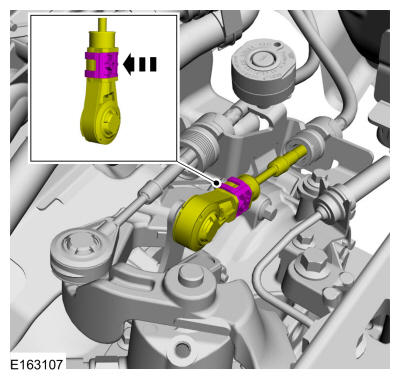

3. Unlock the adjuster.

   Courtesy of FORD MOTOR COMPANY

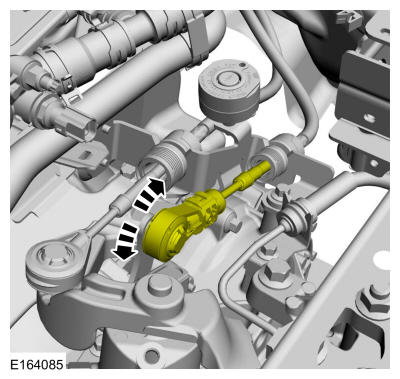

4. Move the gearshift select cable back and forth and verify free motion.

   Courtesy of FORD MOTOR COMPANY

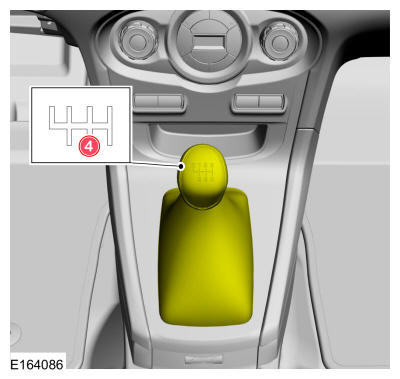

5. NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N position.

   Position the gearshifter in 4th gear.

   Courtesy of FORD MOTOR COMPANY

6. Lock the adjuster.

   Courtesy of FORD MOTOR COMPANY

7. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

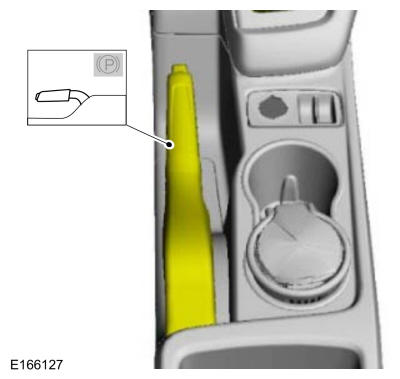

8. Release the parking brake.

Courtesy of FORD MOTOR COMPANY
