Transmission Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Check

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

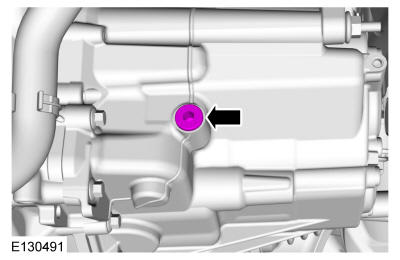

Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

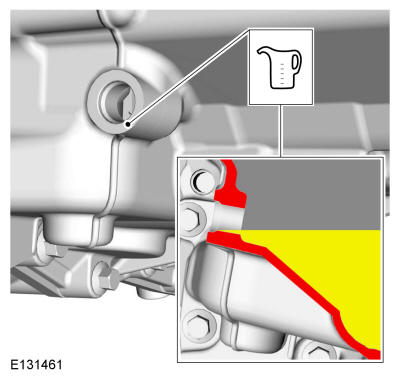

Add transmission fluid as necessary.
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

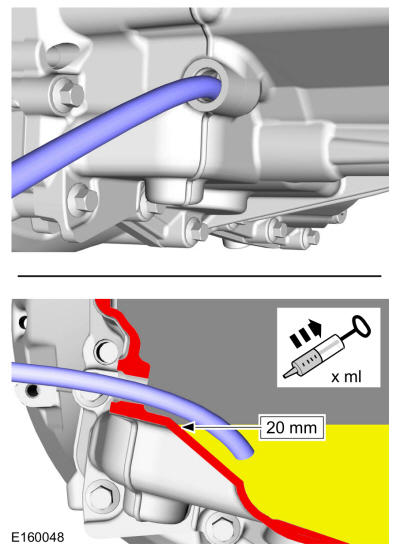

Remove enough fluid to be 01 in (20 mm) below fill hole.

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
