Fuel Injector Supply Tube: Installation
WARNING: This page is about a different variant/trim than selected.

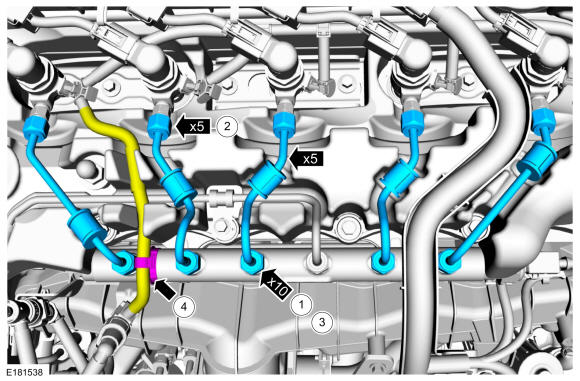

- 1.NOTE: Make sure that new fuel injector supply tubes are installed.NOTE: Install the new fuel injector supply tubes finger tight at this stage.
- 1.NOTE: Use a back-up wrench on the fuel injector supply tube fittings.
Tighten the fuel injector supply tube flare nuts at the fuel rail.
Torque: 133 lb.in (15 Nm)
- 2.
Tighten the fuel injector supply tube flare nuts at the fuel injectors in the following stages.Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: Wait 30s
Stage 3: 22 lb.ft (30 Nm)
- 3.
Tighten the fuel injector supply tube flare nuts at the fuel rail.Torque: 22 lb.ft (30 Nm)
- 4.
Position the fuel injector fuel return line back and attach the fuel injector fuel return line.
- 1.
- 2.
Connect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- 3.
Bleed the Fuel System. Refer to: Fuel System Bleeding .
- 4.
Remove the oil filler cap. Install the engine appearance cover, position the hose back and install the oil filler cap.
