Intake Manifold: Installation

Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5QSD (WSS-M2C171-E)

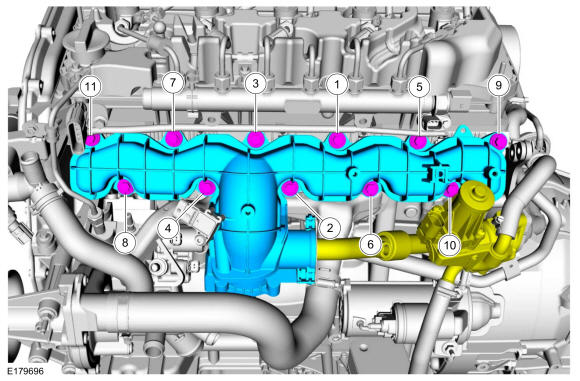

Position the mixer tube in the vehicle. Install the intake manifold and the bolts.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 115 lb.in (13 Nm)

Stage 3: 142 lb.in (16 Nm)

Torque: 17 lb.ft (23 Nm)

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 89 lb.in (10 Nm)

Torque: 89 lb.in (10 Nm)

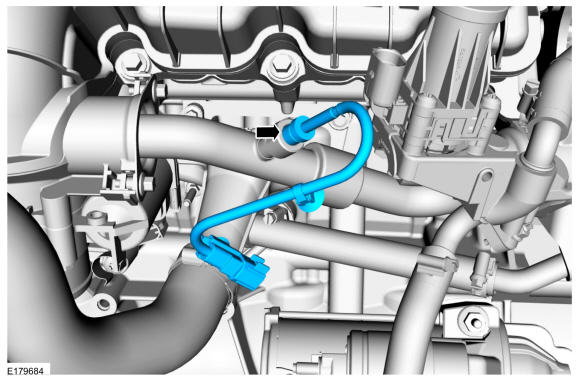

Install the EGRT sensor.

Torque: 32 lb.ft (44 Nm)

Torque:

Front bolt: 44 lb.in (5 Nm)

Rear bolt: 89 lb.in (10 Nm)

Torque: 35 lb.in (4 Nm)

Torque: 17 lb.ft (23 Nm)

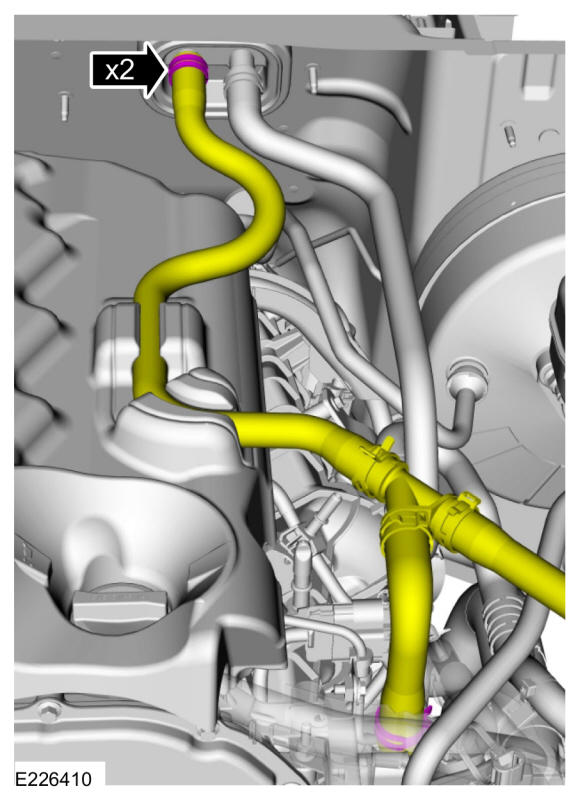

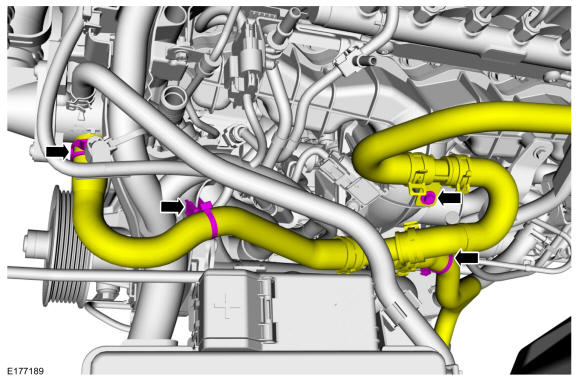

Position back the coolant hose and install the bolt. Connect the retainers and the coolant hose.

Use the General Equipment: Hose Clamp Remover/Installer

Torque: 35 lb.in (4 Nm)

Use the General Equipment: Hose Clamp Remover/Installer
