Section 5 (Engine - 1.0L ECOBOOST (90KW/120PS)): Installation: Engine

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AEPowertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	308-880Installer, Driveshaft Seal
Steering Wheel Holder
Cable Ties
Hose Clamp Remover/Installer
Wooden Block

Materials

Name	Specification
Motorcraft ® High Temperature 4x4 Front Axle and Wheel Bearing GreaseXG-11	WSS-M1C267-A1
Motorcraft ® SAE 5W-20 Synthetic Blend Motor OilXO-5W20-QSP	WSS-M2C945-A

• 1.

  Apply a thin coating.

  Material: Motorcraft ® High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

Courtesy of FORD MOTOR COMPANY

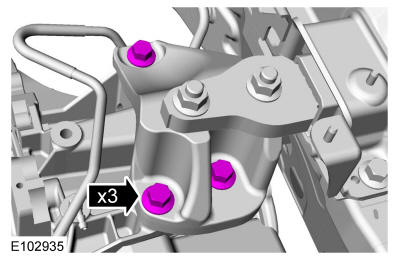

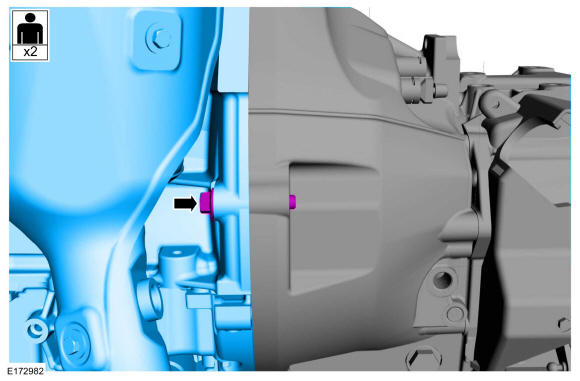

• 2.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 3.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 4.

  Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

Courtesy of FORD MOTOR COMPANY

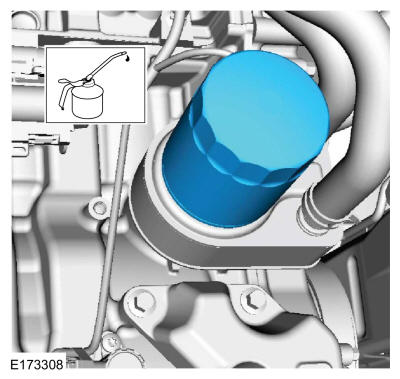

• 5.

  Lubricate seal.

  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

  Torque: 128 lb.in (14.5 Nm)

Courtesy of FORD MOTOR COMPANY

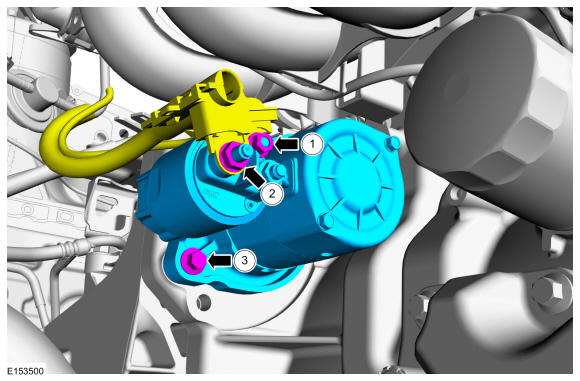

• 6.

  Torque:

  1: 53 lb.in (6 Nm)

  2: 106 lb.in (12 Nm)

  3: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

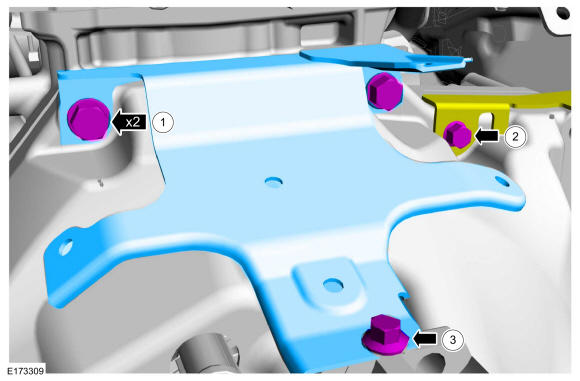

  NOTE: Wiring harness removed for clarity.

  • 1.

    Torque: 35 lb.ft (48 Nm)

  • 2.

    Torque: 26 lb.ft (35 Nm)

  • 3.

    Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

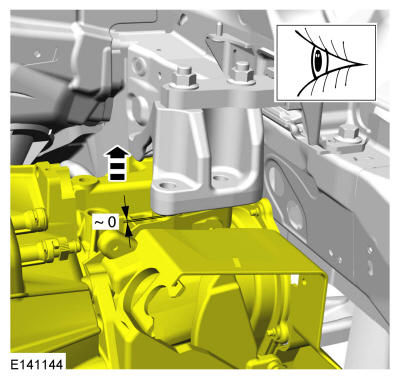

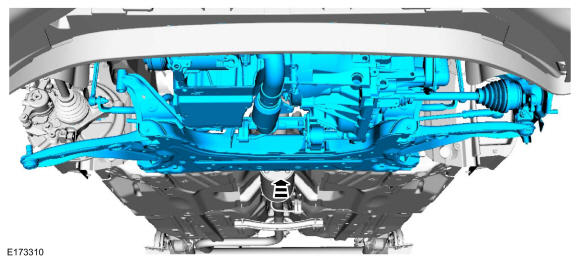

  Using the powertrain lift, raise the powertrain and subframe as an assembly into the vehicle.

Courtesy of FORD MOTOR COMPANY

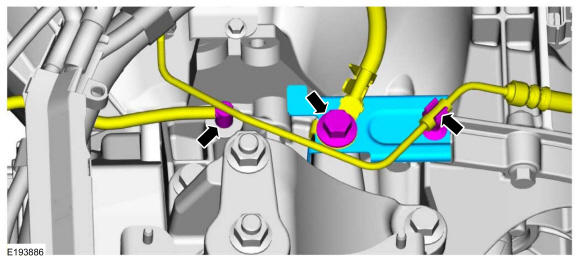

• 9.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.



  • 1.

    Torque: 59 lb.ft (80 Nm)

  • 2.

    Only tighten the bolts finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

• 11.



Courtesy of FORD MOTOR COMPANY

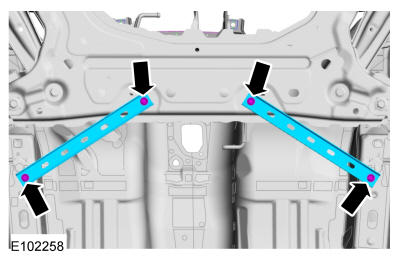

• 12.

  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

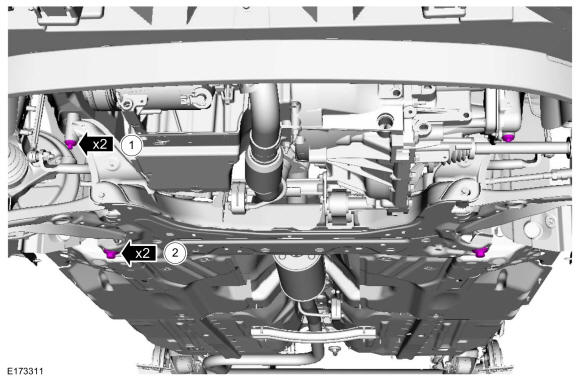

• 13.


  NOTE: Align subframe to marks made during removal.

  • 1.

    Torque: 59 lb.ft (80 Nm)

  • 2.

    Torque:

    Stage 1: 74 lb.ft (100 Nm)

    Stage 2: 240 °

Courtesy of FORD MOTOR COMPANY

• 14.

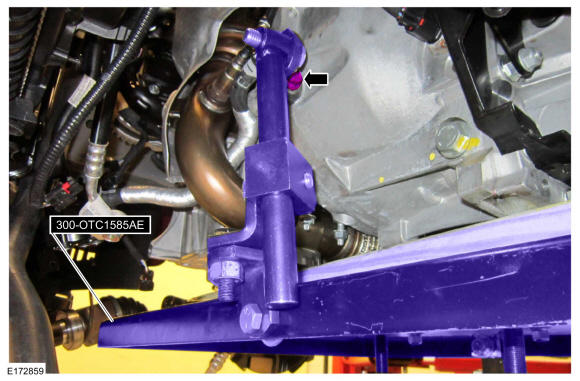

  Remove Special Service Tool: 300-OTC1585AE Powertrain Lift. Remove the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

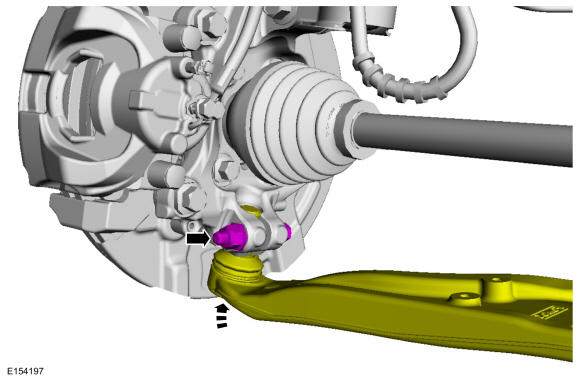

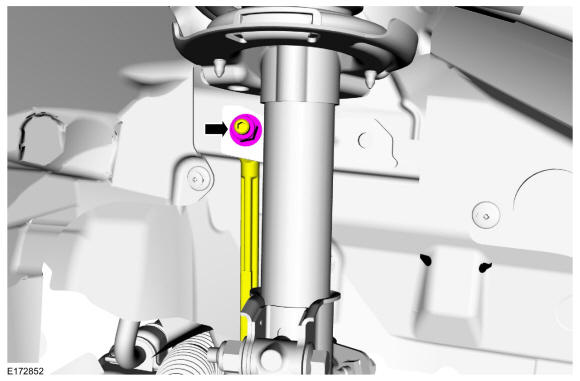

• 15.

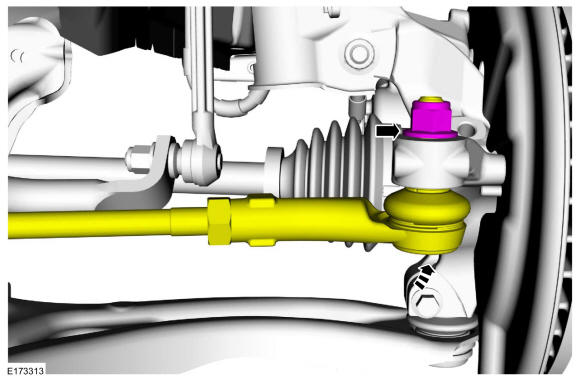

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 16.

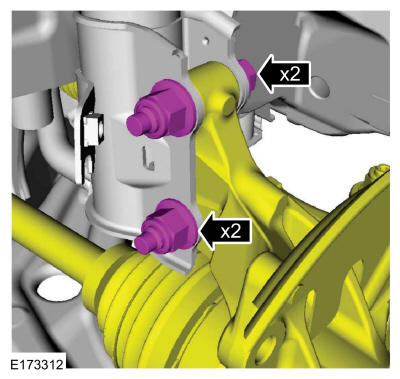

  Torque:

  Stage 1: 60 lb.ft (82 Nm)

  Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY

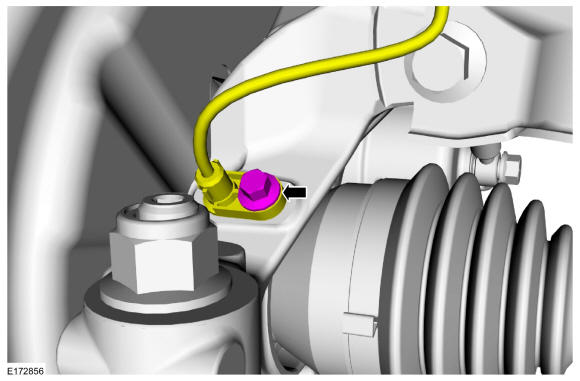

• 17.


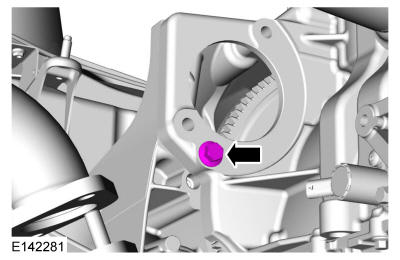

  NOTE: Make sure that the sensor housing is clean and free of foreign material.

  Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

• 18.

  Install LH brake disc. Refer to: Brake Disc .

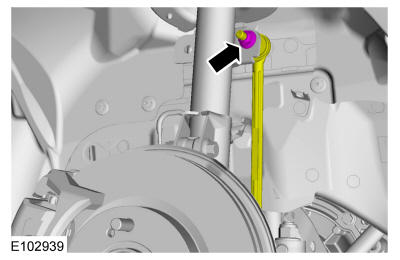

• 19.

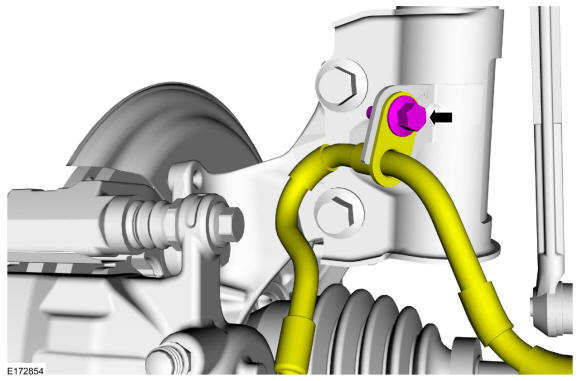

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 20.



Courtesy of FORD MOTOR COMPANY

• 21.

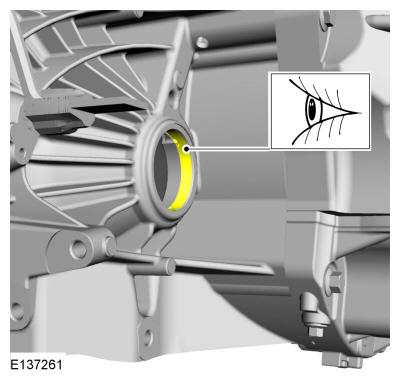

  NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.

Courtesy of FORD MOTOR COMPANY

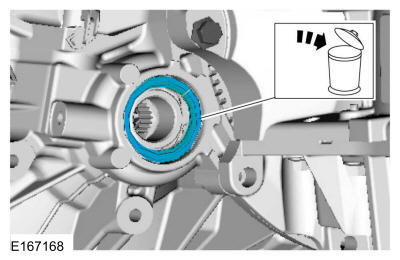

• 22.

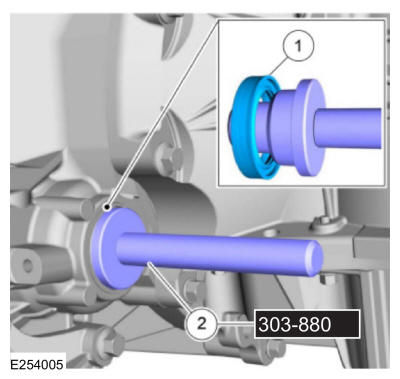

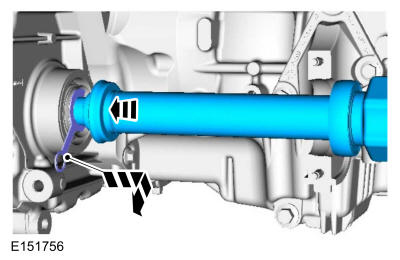

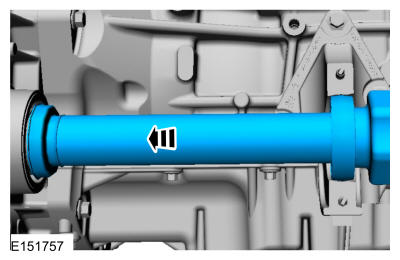

  Use Suggested Tool: 308-880 Installer, Driveshaft Seal. Tool shown or a commercially available equivalent can be used.

Courtesy of FORD MOTOR COMPANY

• 23.


  NOTE: Do not fully install the shaft at this time.

  Using part: 97ZT-7M181-A.

Courtesy of FORD MOTOR COMPANY

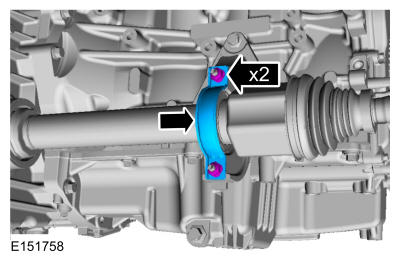

• 24.

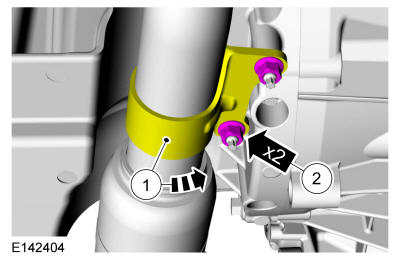

  NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

Courtesy of FORD MOTOR COMPANY

• 25.

  Torque

  Stage 1: 44 lb.in (5 Nm)

  Stage 2: 18 lb.ft (24 Nm)

  Stage 3: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

• 26.

  Torque: 38 lb.ft (52 Nm)

Courtesy of FORD MOTOR COMPANY

• 27.

  Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

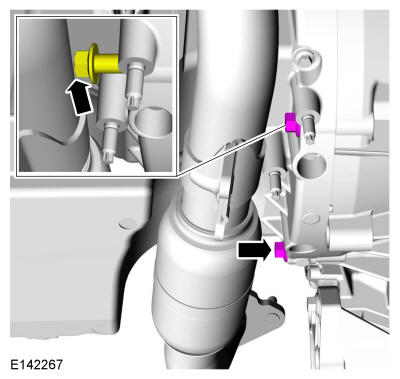

• 28.

  Torque: 39 lb.ft (53 Nm)

Courtesy of FORD MOTOR COMPANY

• 29.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 30.

  Front RH and LH. Refer to: Wheel and Tire .

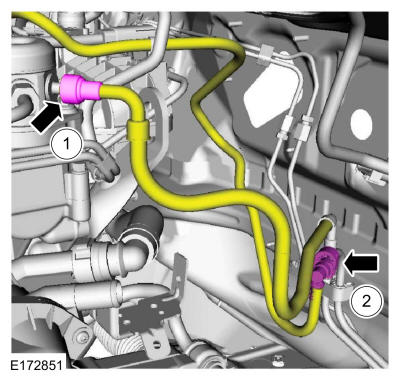

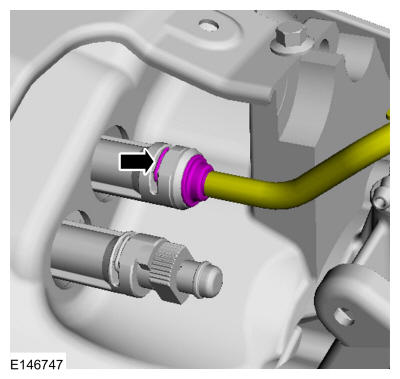

• 31.

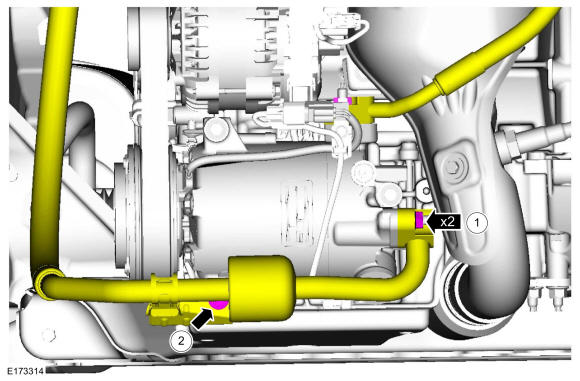

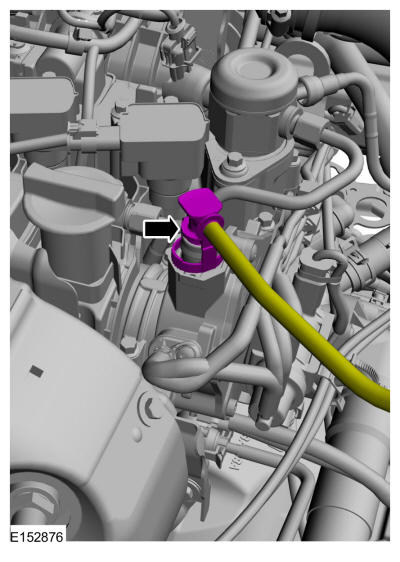

  • 1.

    Refer to: Spring Lock Couplings .

  • 2.

    Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

• 32.



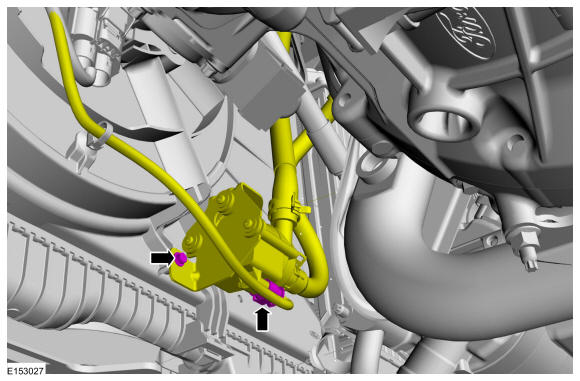

  • 1.

    Torque: 89 lb.in (10 Nm)

  • 2.

    Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

• 33.



  • 1.

    Torque: 133 lb.in (15 Nm)

  • 2.

    Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 34.



Courtesy of FORD MOTOR COMPANY

• 35.

  Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

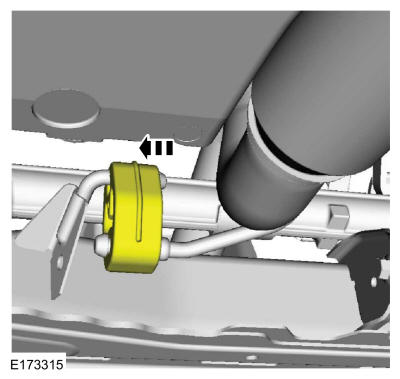

• 36.



Courtesy of FORD MOTOR COMPANY

• 37.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 38.



  • 2.

    Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 39.

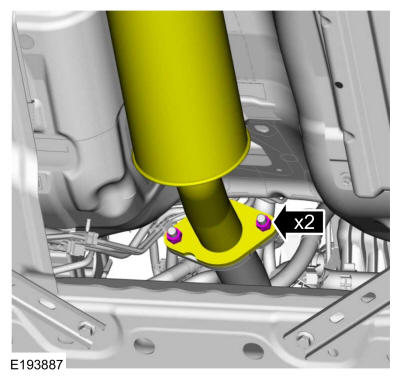

  NOTE: Install a new gasket.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 40.

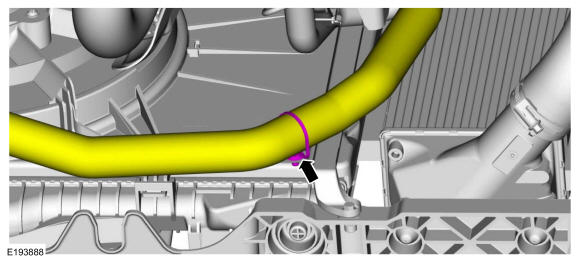

  Remove the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

• 41.

  Refer to: Transmission Fluid Level Check .

• 42.

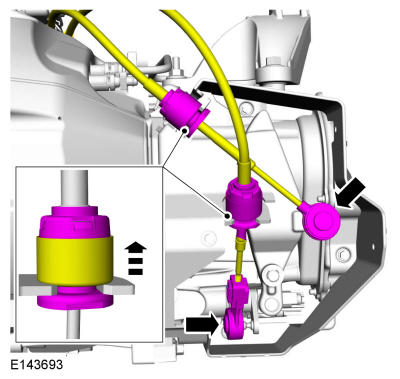

  NOTE: Gearshift cables must not be kinked or bent.

Courtesy of FORD MOTOR COMPANY

• 43.

  Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - B5/IB5 .

• 44.



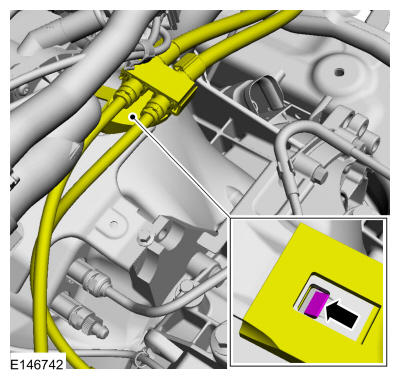

Courtesy of FORD MOTOR COMPANY

• 45.

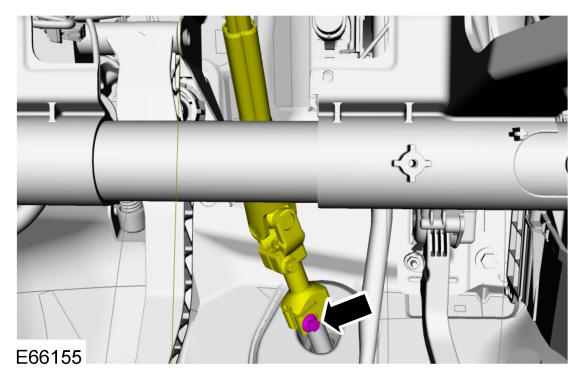

  WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

  Torque: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY

• 46.

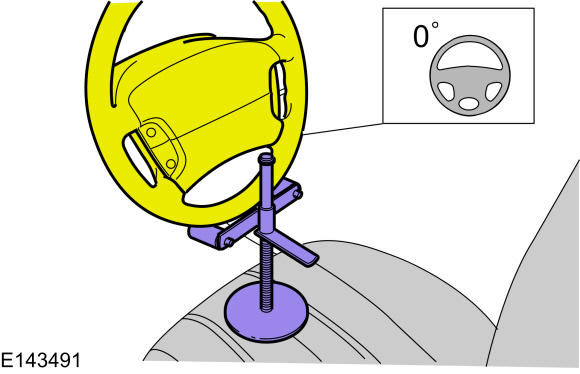

  Remove the General Equipment: Steering Wheel Holder

Courtesy of FORD MOTOR COMPANY

• 47.



Courtesy of FORD MOTOR COMPANY

• 48.



Courtesy of FORD MOTOR COMPANY

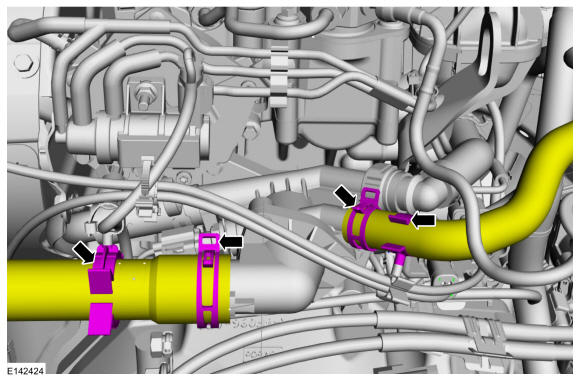

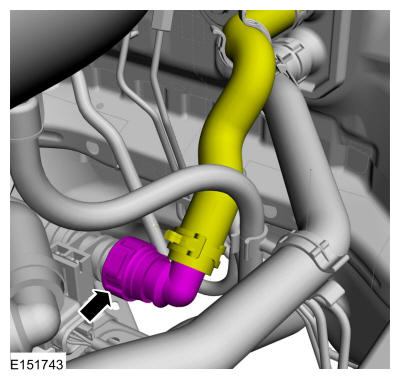

• 49.

  Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

• 50.



Courtesy of FORD MOTOR COMPANY

• 51.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 52.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 53.



Courtesy of FORD MOTOR COMPANY

• 54.



Courtesy of FORD MOTOR COMPANY

• 55.

  Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

• 56.

  Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

• 57.



Courtesy of FORD MOTOR COMPANY

• 58.

  Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .

• 59.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 60.

  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

• 61.

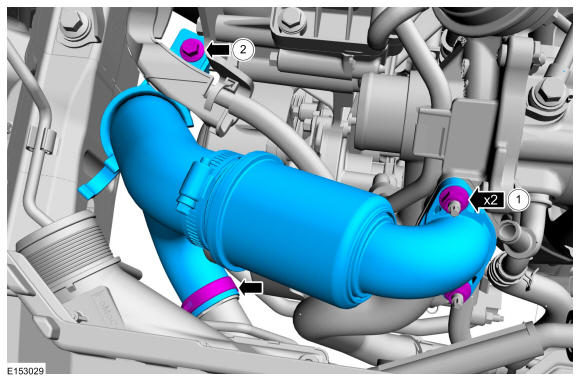

  • Install CAC tube and tighten clamps.

    Torque: 44 lb.in (5 Nm)

  • Install CAC tube bolt.

    Torque: 71 lb.in (8 Nm)

  • Connect the hose. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

• 62.

  Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

• 63.

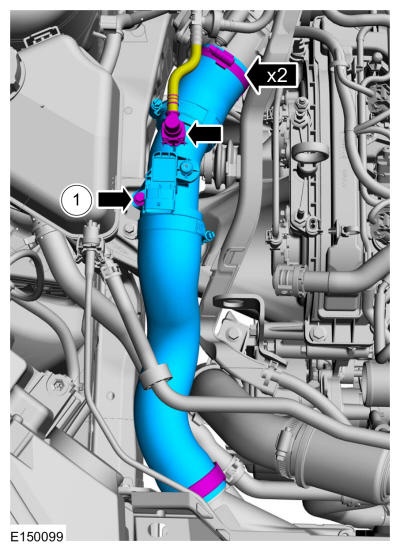

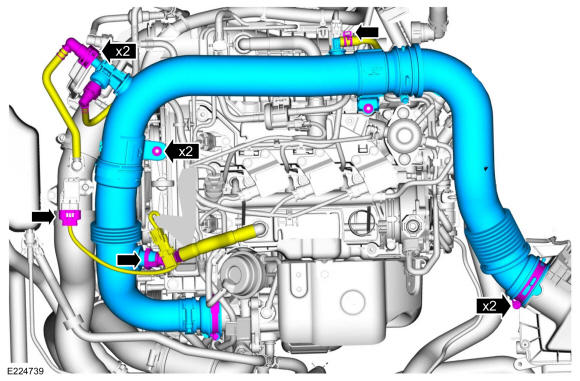

  • Install CAC tube and tighten clamps.

    Torque: 35 lb.in (4 Nm)

  • Install CAC tube nuts.

    Torque: 97 lb.in (11 Nm)

  • Connect the hoses. Refer to: Quick Release Coupling .
  • Connect the CAC tube sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

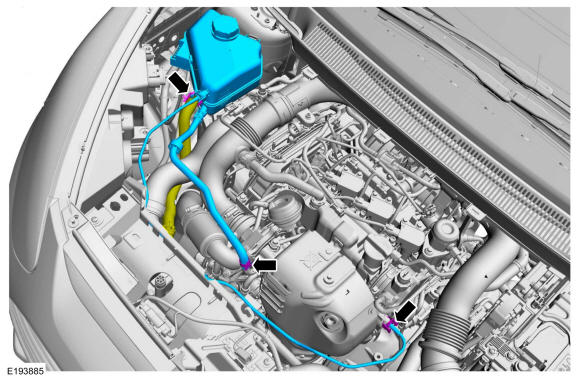

• 64.



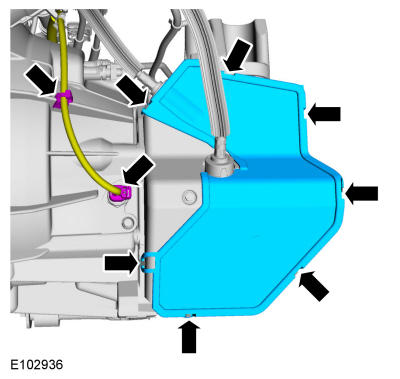

Courtesy of FORD MOTOR COMPANY

• 65.

  Fill the engine with clean engine oil Refer to: Specifications .

  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

• 66.

  Refer to: Cooling System Draining, Vacuum Filling And Bleeding .

• 67.

  Refer to: Clutch System Bleeding .

• 68.

  Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .

• 69.

  After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
