Gearshift Cable Adjustment - 5-Speed Manual Transmission - B5/IB5

Adjustment

• 1.

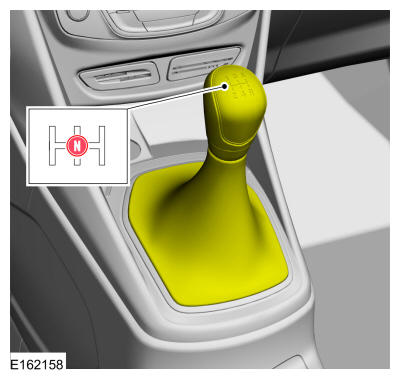

  Position the gearshift in N position.

Courtesy of FORD MOTOR COMPANY

• 2.

  With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 3.

  Remove the shift cable access cover.

Courtesy of FORD MOTOR COMPANY

• 4.

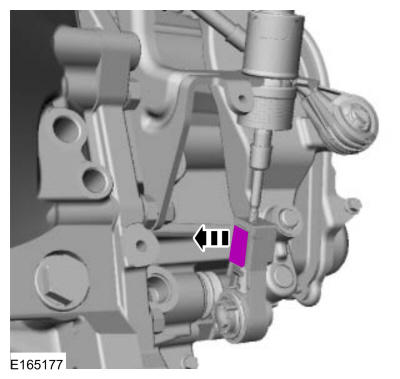

  Unlock the adjuster.

Courtesy of FORD MOTOR COMPANY

• 5.

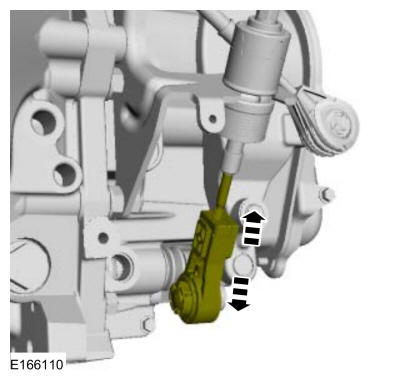

  Move the gearshift select cable back and forth and verify free motion.

Courtesy of FORD MOTOR COMPANY

• 6.


  NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N position.

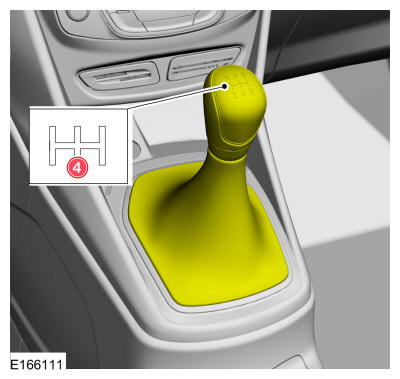

  Position the gearshifter in 4th gear.

Courtesy of FORD MOTOR COMPANY

• 7.

  Lock the adjuster.

Courtesy of FORD MOTOR COMPANY

• 8.

  Install the shift cable access cover.

  • 1.

    Install the access hole cover.

  • 2.

    Install the gearshift housing assembly.

Courtesy of FORD MOTOR COMPANY
