Transmission Fluid Level Check

Materials

• 1.

  With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

  Remove Engine Undershield - if equipped.

• 3.



  • 1.

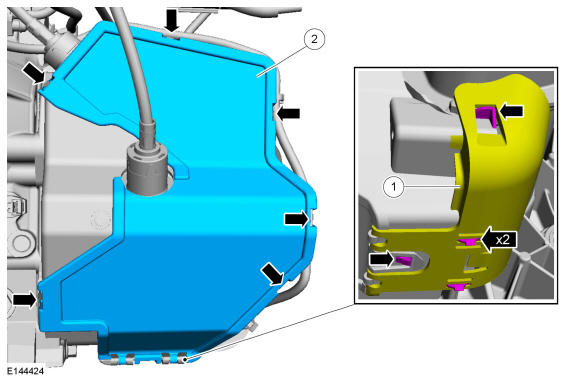

    If equipped.Release the retainers and position aside the gearshift housing assembly.

  • 2.

    Remove the gearshift cable access cover.

Courtesy of FORD MOTOR COMPANY

• 4.

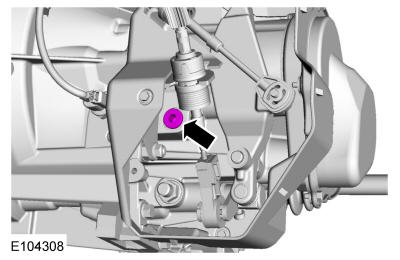

  Remove the transmission fill plug.

Courtesy of FORD MOTOR COMPANY

• 5.

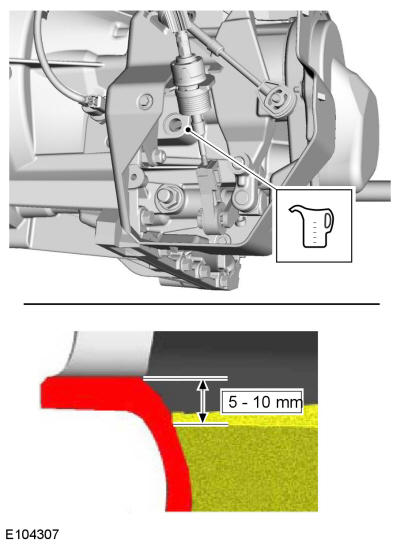

  Add or remove transmission fluid as necessary.

  Material: Motorcraft ® Full Synthetic Manual Transmission Fluid / XT-M5-QS (WSD-M2C200-C)

Courtesy of FORD MOTOR COMPANY

• 6.

  Install the transmission fill plug.

  Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.



  • 1.

    Install the gearshift cable access cover.

  • 2.

    If equipped. Install the gearshift housing assembly.

Courtesy of FORD MOTOR COMPANY

• 8.

  Install engine undershield - if equipped.
