Transmission - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1554Engine Support Bar
Courtesy of FORD MOTOR COMPANY	303-1554-05Adapter for 303-1554, Engine Support Bar
Transmission Jack
Cable Ties
Retaining Strap
Wooden Block

Materials

Name	Specification
Grease - High Temperature	WSS-M1C273-A

• 1.

  Coat the input shaft splines with a thin coating of grease.

  Material: Grease - High Temperature (WSS-M1C273-A)

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: Make sure that the locating dowels remain installed.

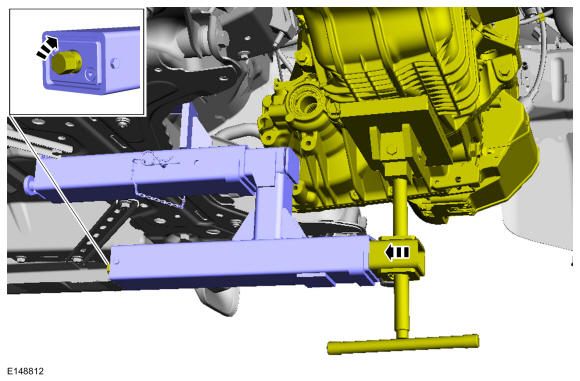

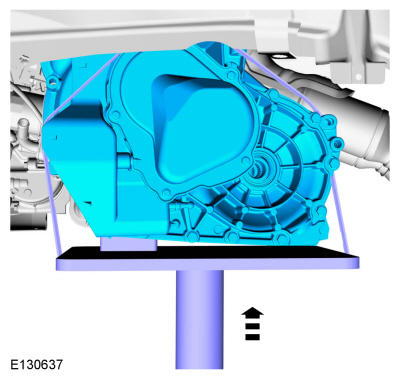

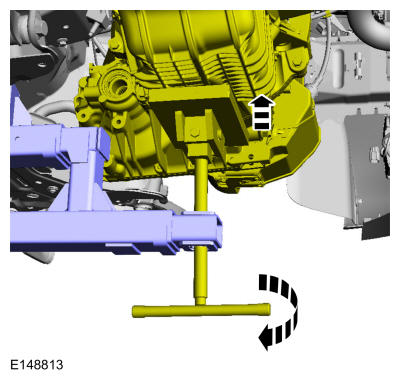

  Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

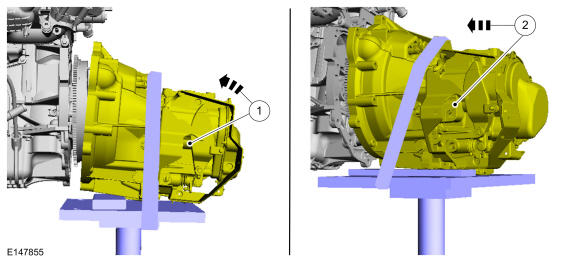

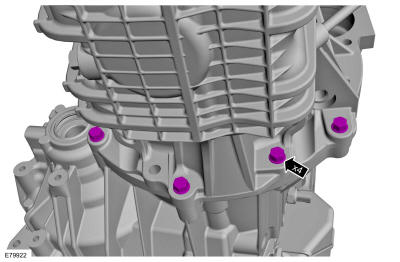

• 4.

  Perform this and the following operation simultaneously.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

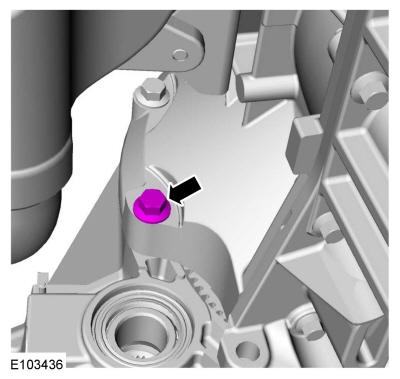

• 5.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

  Remove the following items:
  • Use the General Equipment: Wooden BlockUse the General Equipment: Retaining StrapUse the General Equipment: Transmission Jack

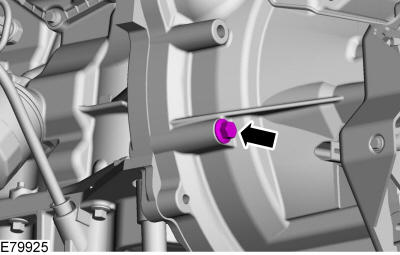

• 7.



Courtesy of FORD MOTOR COMPANY

• 8.



Courtesy of FORD MOTOR COMPANY

• 9.



Courtesy of FORD MOTOR COMPANY

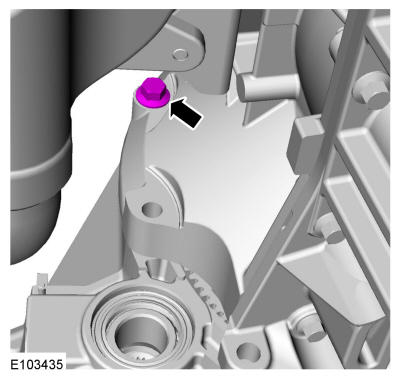

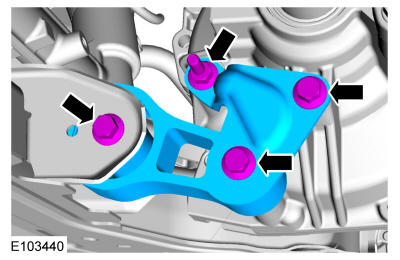

• 10.

  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

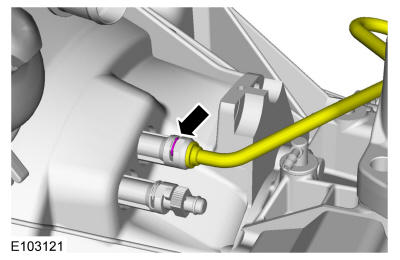

• 11.


  WARNING: Be prepared to collect escaping fluid.

Courtesy of FORD MOTOR COMPANY

• 12.

  Refer to: Clutch System Bleeding .

• 13.

  Remove Special Service Tool: 303-1554 Engine Support Bar., 303-1554-05 Adapter for 303-1554, Engine Support Bar.

• 14.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 15.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .

• 16.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 17.

  Refer to: Transmission Fluid Level Check .

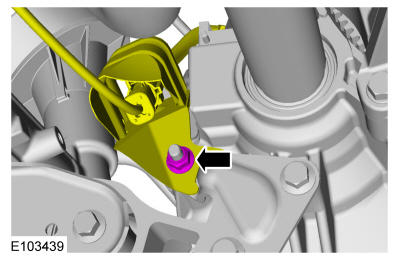

• 18.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 19.


  NOTE: Make sure that new components are installed.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

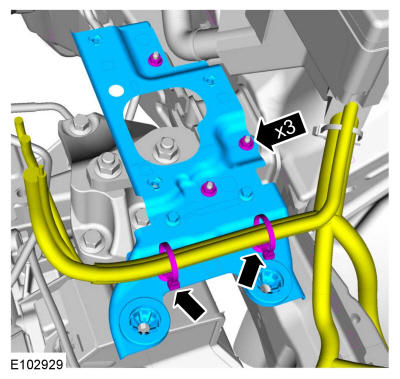

• 20.


  NOTE: Make sure that the exhaust flexible pipe is not forcibly bent.

  Remove the following items:

  • Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

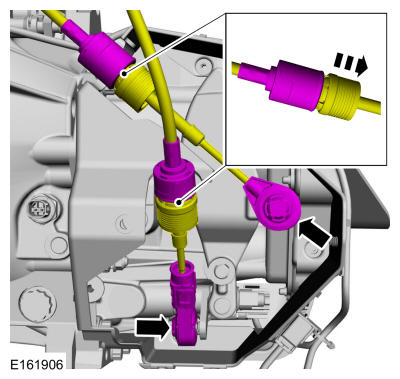

• 22.

  If equipped.

Courtesy of FORD MOTOR COMPANY

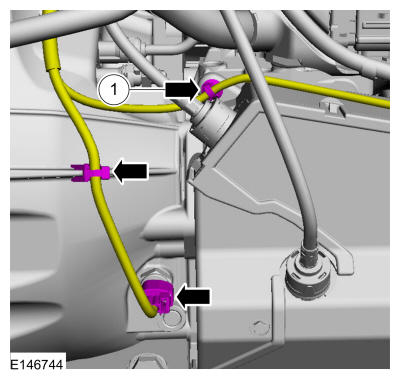

• 23.

  If equipped.

Courtesy of FORD MOTOR COMPANY

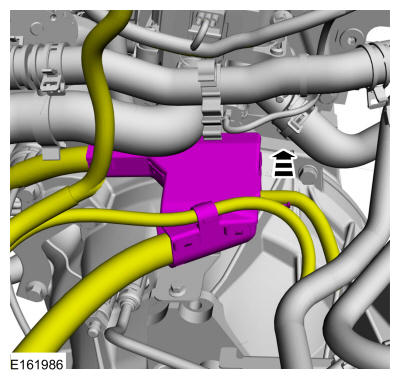

• 24.

  If equipped.

Courtesy of FORD MOTOR COMPANY

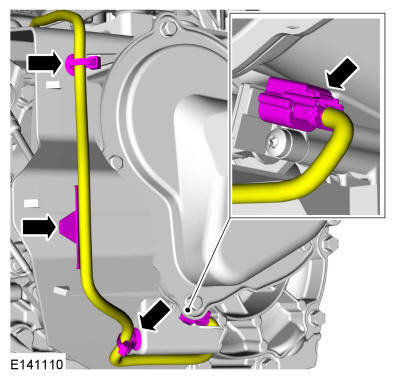

• 25.

  If equipped.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

• 27.

  Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - B5/IB5 .

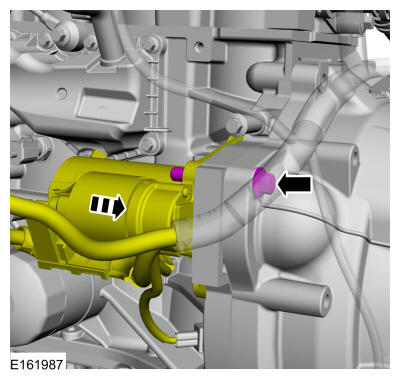

• 28.

  Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

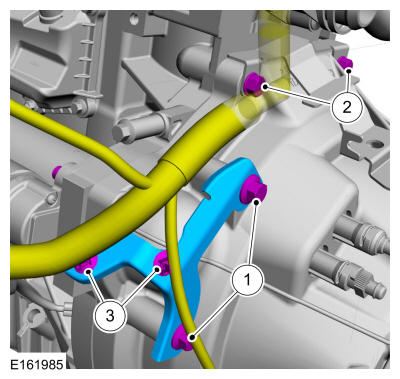

• 29.



  • 1.

    Torque: 26 lb.ft (35 Nm)

  • 2.

    Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

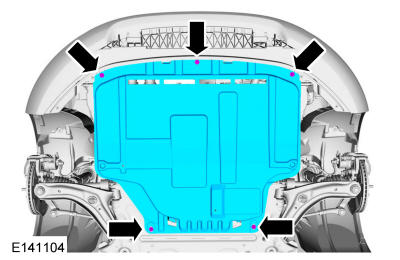

• 31.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 32.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 33.

  Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .
