Clutch Disc and Pressure Plate: Installation

WARNING: This page is about a different variant/trim than selected.

1.
- 1.

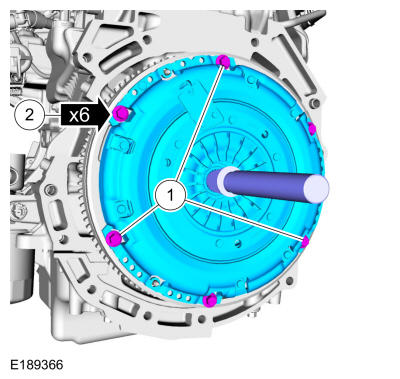

  Install the clutch disc and pressure plate on the flywheel. Center the clutch disc to the crankshaft with a clutch alignment tool. Tighten every other pressure plate bolt 2 turns at a time.Use the General Equipment: Clutch Alignment Tool
  Torque: 16 lb.ft (22 Nm)
- 2.

  Torque: 21 lb.ft (29 Nm)

GFD140480

Courtesy of FORD MOTOR COMPANY

2.

Install the transmission. Refer to: Transmission - 1.6L Duratec-16V TI-VCT (88KW/120PS) - Sigma . Refer to: Transmission - 1.0L EcoBoost (90kW/120PS) .
