Transmission - 2.0L EcoBoost (184kW/250PS) - MI4

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1554 Engine Support Bar
Ford Diagnostic Equipment
Transmission Jack
Retaining Strap
Wooden Block

Materials

Name	Specification
Grease - High Temperature	ESD-M1C220-A

1.

Lubricate the input shaft with a thin coating of grease.
Material: Grease - High Temperature (ESD-M1C220-A)

Courtesy of FORD MOTOR COMPANY

2.

Install the transmission.

Courtesy of FORD MOTOR COMPANY

3.

Install the bellhousing bolts. Tighten on both sides simultaneously.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

4.

Remove the following items:
- Use the General Equipment: Wooden Block
- Use the General Equipment: Retaining Strap
- Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

5.

Install the transmission support insulator bracket.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Using the special tool, position the engine and transmission to align the transmission support insulator bracket with the transmission support insulator. Use Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

7.

WARNING: Make sure that a new bolt is installed.

Install the transmission support insulator and the bolt.

Torque: 109 lb.ft (148 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Install the clutch hydraulic tube in the slave cylinder.

Courtesy of FORD MOTOR COMPANY

9.

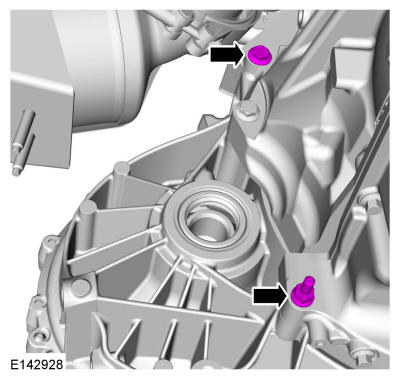

Install the bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

10.

Install the bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Install the LH halfshaft. REFER to: Front Halfshaft LH

12.

Install the splash shield. REFER to: Fender Splash Shield

13.

NOTE: Do not fully install the halfshaft at this time.

Using part: 97ZT-7M181-A Seal Protector, install the intermediate shaft into the transmission.

Courtesy of FORD MOTOR COMPANY

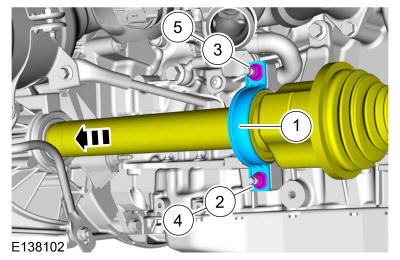

14.
- 1.

  NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

  Remove the seal protector and install the intermediate shaft into the transmission.
- 2.

  NOTE: Make sure that a new component is installed.

  Tighten the bottom nut.

  Torque: 53 lb.in (6 Nm)
- 3.

  NOTE: Make sure that a new component is installed.

  Tighten the top nut.

  Torque: 53 lb.in (6 Nm)
- 4.

  Tighten the bottom nut.
  Torque: 18 lb.ft (25 Nm)
- 5.

  Tighten the top nut.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

15.

Install the RH lower control arm in the steering knuckle and install the bolt and nut.
Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

16.

Install the RH brake hose and install the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

17.

Install the RH wheel. REFER to: Wheel and Tire

18.
- 1.

  Install the roll restrictor and bracket in place and install the bolts.
  Torque: 63 lb.ft (85 Nm)
- 2.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

19.
- 1.

  Install the catalytic converter support brackets.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

20.

NOTE: Bracket not shown.

Install the roll restrictor bolts.

Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

21.
- 1.

  Install the CAC hose and tighten the bolt and the nut.
  Torque: 89 lb.in (10 Nm)
- 2.

  Tighten the hoses.
  Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

22.

Tighten the starter.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

23.

Install the wiring bracket and install the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

24.

Install the bellhousing bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

25.

Install the ground strap and the bolt. Connect the electrical connector and the wiring retainer.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

26.

Connect the gearshift cables. REFER to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - MMT6

Courtesy of FORD MOTOR COMPANY

27.

Install the battery tray support bracket and the nuts. Connect the wiring retainers.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

28.

Install the battery tray. REFER to: Battery Tray

29.

Install the air cleaner. REFER to: Air Cleaner

30.

Fill the transmission. REFER to: Transmission Draining and Filling

Refer to: Engine Undershield

31.

Bleed the clutch hydraulic system. REFER to: Clutch System Bleeding - 6-Speed Manual Transmission - MMT6

Courtesy of FORD MOTOR COMPANY

33.

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure. Use the General Equipment: Ford Diagnostic Equipment
