Transmission Draining and Filling
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Materials
| Name | Specification |
|---|---|
| Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC | WSS-M2C200-D2 |
Filling
- 1.
Refer to: Health and Safety Precautions
- 2.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview
- 3.
If equipped. Remove the underbody shield.- 1.
Remove the air deflector.
- 2.
Remove the underbody shield.
- 1.

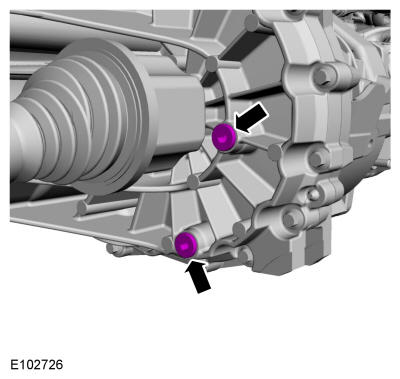

- 4.NOTE: Be prepared to collect escaping fluid.
Remove the fill plug, the drain plug and drain the transmission fluid.
- 5.

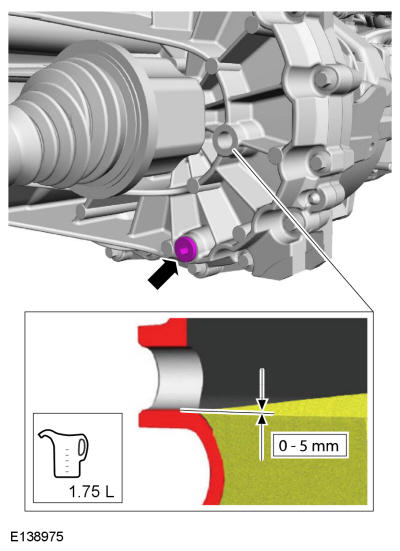

Install the drain plug and add or remove transmission fluid as necessary.Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
Torque: 26 lb.ft (35 Nm)
- 7.
If equipped. Install the underbody shield.- 1.
Install the underbody shield.
- 2.
Install the air deflector.
- 1.
