Gearshift Cable Adjustment - 6-Speed Manual Transmission - MMT6

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Activation

1.

Apply the parking brake and position the gearshift lever in N.

Courtesy of FORD MOTOR COMPANY

2.

If equipped with a 2.0L EcoBoost, remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

3.

If equipped with a 2.3L EcoBoost, remove the air cleaner. Refer to: Air Cleaner .

4.

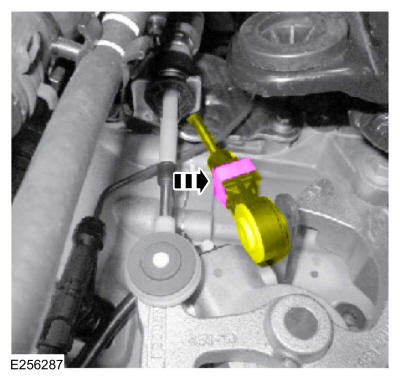

Release the lock tab on the selector cable.

Courtesy of FORD MOTOR COMPANY

5.

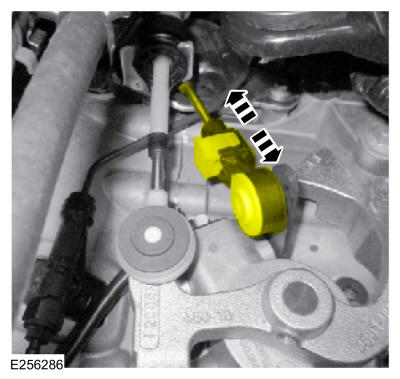

Move the selector lever back and forth to verify free motion.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: By placing the shift lever into the 4th gear position, it locks the small lever into the N position.

Move the gear shift lever into the 4th gear position.

Courtesy of FORD MOTOR COMPANY

7.

Press the lock tab on the selector cable, setting the cable adjustment to the small lever.

Courtesy of FORD MOTOR COMPANY

8.

If equipped with a 2.0L EcoBoost, install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

9.

If equipped with a 2.3L EcoBoost, install the air cleaner. Refer to: Air Cleaner .
