Section 385 (Manual Transmission - 6-Speed Manual Transmission - B6 (Except Electric Vehicle)): Installation: Transmission

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-115A (205-115) Installer, Drive Pinion Seal
Ford Diagnostic Equipment
Transmission Jack
Cable Ties
Retaining Strap
Wooden Block

Materials

• 1.

  Apply a thin coating of grease.

  Material: High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

Courtesy of FORD MOTOR COMPANY

• 2.

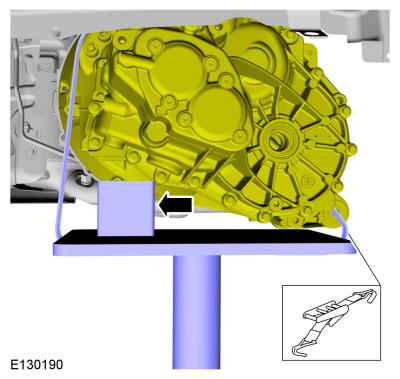

  Install the following items:
  • Use the General Equipment: Transmission Jack
  • Use the General Equipment: Wooden Block
  • Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

• 3.

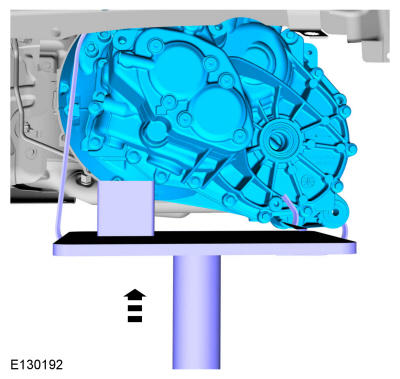

  Install the transmission onto the engine.

Courtesy of FORD MOTOR COMPANY

• 4.

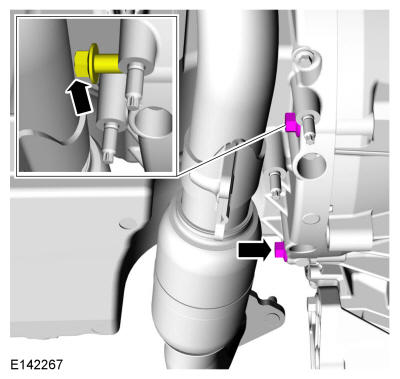

  Install the bellhousing bolt.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

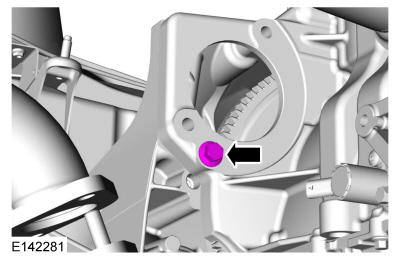

  Install the bellhousing bolt.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

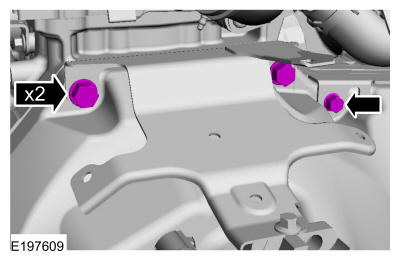

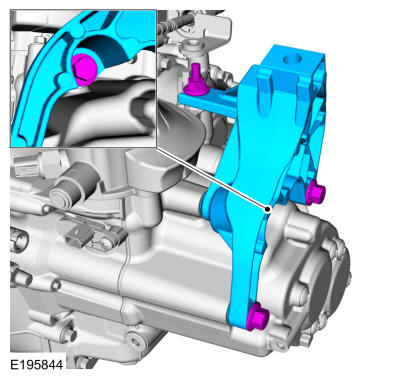

  Install the transmission support insulator bracket.

  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  Install the transmission support insulator.

  Torque: 109 lb.ft (148 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

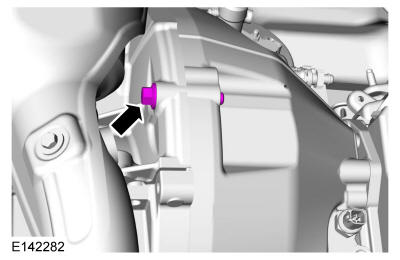

  Install the lower bellhousing bolts.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.

  Install the exhaust support bracket.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.

  Install the exhaust insulator.

  Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

• 11.


  NOTE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

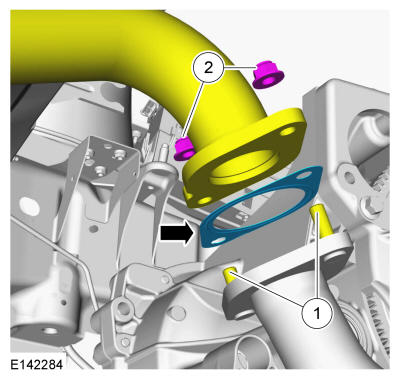

  Apply a thin coating of anti-seize and install the exhaust pipe on the flexpipe.

  Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound / Purchase locally

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 12.

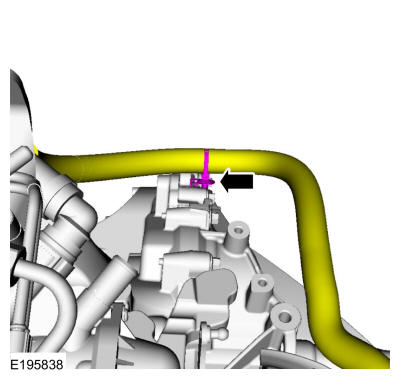

  Remove the cable ties. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

• 13.

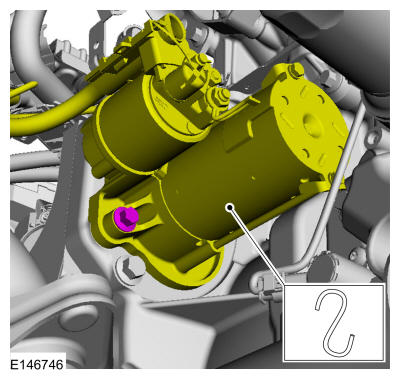

  Position the starter back and install the bolts.

  Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

• 14.


  NOTE: If the transmission has been replaced or overhauled, the seals do not need to be replaced.

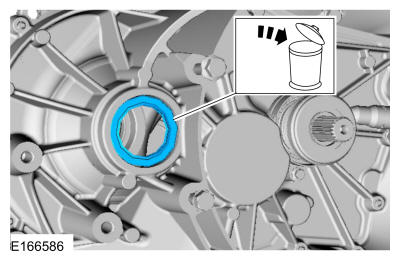

  Remove and discard the RH halfshaft seal.

Courtesy of FORD MOTOR COMPANY

• 15.

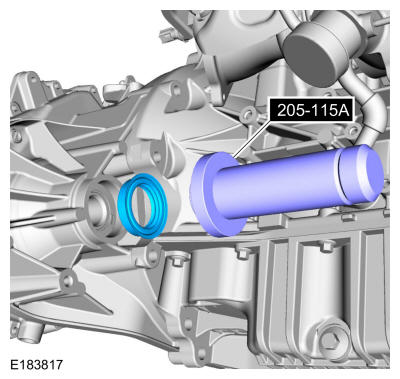

  Using the special tool, install a new RH halfshaft seal. Use Special Service Tool: 205-115A (205-115) Installer, Drive Pinion Seal.

Courtesy of FORD MOTOR COMPANY

• 16.


  NOTE: Do not fully install the halfshaft at this time.

  Using part: 97ZT-7M181-A Seal Protector, slide the RH halfshaft into the transmission until the splines are past the seal and remove the seal protector.

Courtesy of FORD MOTOR COMPANY

• 17.

  Insert the RH halfshaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

Courtesy of FORD MOTOR COMPANY

• 18.

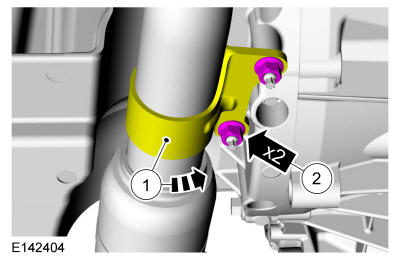

  Install the halfshaft retaining strap.

  Torque:

  Stage 1: Lower nut:: 44 lb.in (5 Nm)

  Stage 2: Upper nut:: 18 lb.ft (25 Nm)

  Stage 3: Lower nut:: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 19.

  Install the RH lower control arm in the knuckle.

  Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

• 20.

  Install the RH brake hose on the strut.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 21.

  Install the LH halfshaft. Refer to: Front Halfshaft LH .

• 22.

  Install both front wheels and tires. Refer to: Wheel and Tire .

• 23.

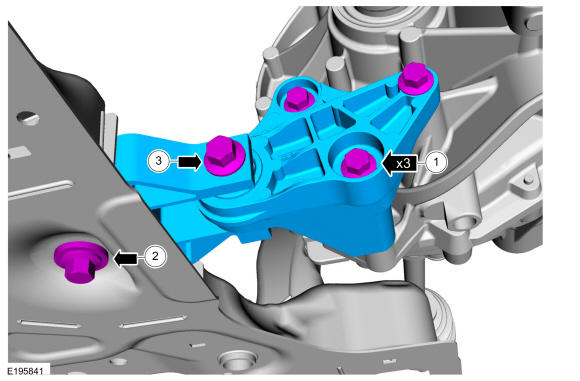

  Install the roll restrictor and bracket.

  Torque:

  1: 52 lb.ft (70 Nm)

  2: 92 lb.ft (125 Nm)

  3: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

• 24.

  Install the 2 top bellhousing bolts and the top starter motor bolt.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 25.

  Connect the wiring harness retainer on the back of the transmission.

Courtesy of FORD MOTOR COMPANY

• 26.

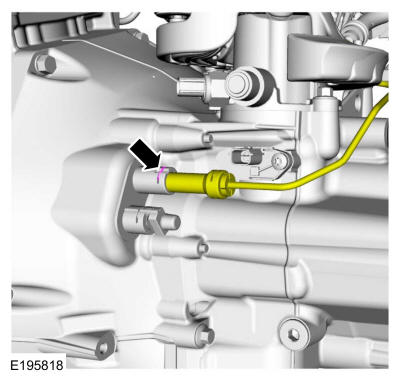

  Connect the slave cylinder hydraulic tube to the slave cylinder.

Courtesy of FORD MOTOR COMPANY

• 27.

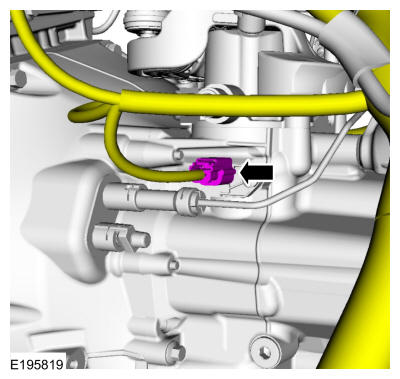

  Connect the neutral position sensor.

Courtesy of FORD MOTOR COMPANY

• 28.

  Install the shift cable bracket.

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 29.

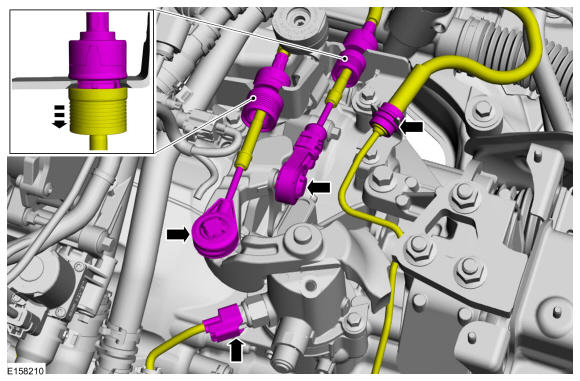

  Connect the shift cables, connect the slave cylinder hydraulic tube to the bracket and connect the reverse light switch.

Courtesy of FORD MOTOR COMPANY

• 30.

  Adjust the shift cables. Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6 .

• 31.

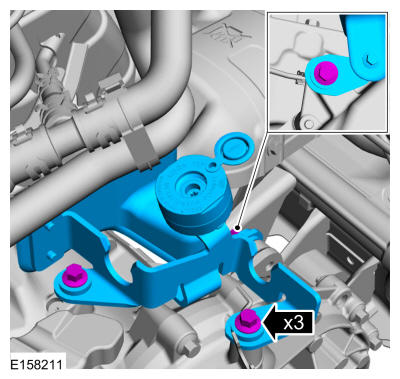

  Install the battery tray support bracket.

  Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 32.

  Install the battery tray. Refer to: Battery Tray .

• 33.

  Install the air cleaner. Refer to: Air Cleaner .

• 34.

  Fill the transmission. Refer to: Transmission Draining and Filling .

• 35.

  Bleed the clutch hydraulic system. Refer to: Clutch System Bleeding - 6-Speed Manual Transmission - B6 .

• 36.

  Install the underbody shield.

Courtesy of FORD MOTOR COMPANY

• 37.

  After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure. Use the General Equipment: Ford Diagnostic Equipment
