Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Activation
- 1.

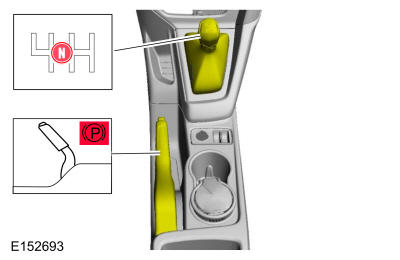

Apply the parking brake and position the gearshift lever in N.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

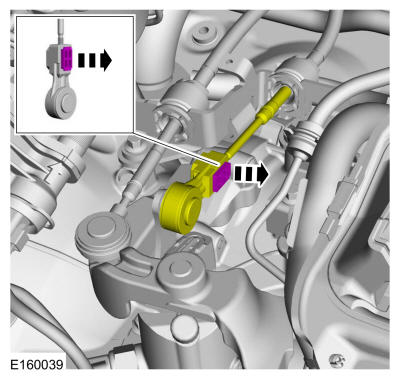

Release the lock tab on the selector cable.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

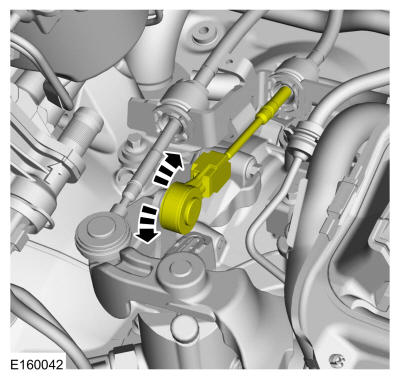

Move the selector lever back and forth to verify free motion.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
NOTE:
By placing the shift lever into the 4th gear position, it locks the small lever into the N position.

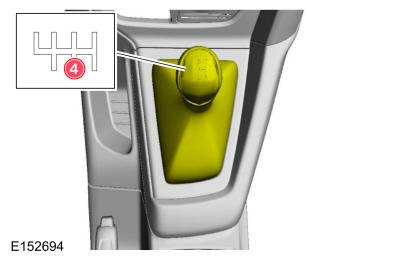

Move the gear shift lever into the 4th gear position.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Press the lock tab on the selector cable, setting the cable adjustment to the small lever.
 Courtesy of FORD MOTOR COMPANY
|
