Clutch System Bleeding - 6-Speed Manual Transmission - B6
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| Fluid Suction Gun |
Materials
| Name | Specification |
|---|---|
| Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20 | WSS-M6C65-A2 |
Bleeding
- 1.NOTE: Make sure that fluid level is to the MAX mark.
Fill the reservoir.
Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

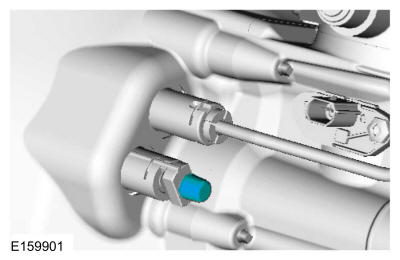

- 3.

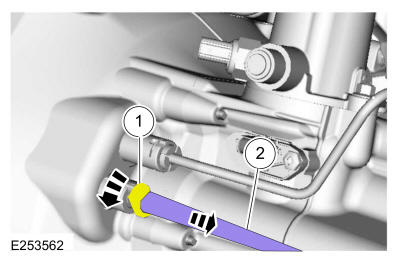

Install the following items:- Install a fluid suction gun hose. Use the General Equipment: Fluid Suction Gun
Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
- Install a fluid suction gun hose. Use the General Equipment: Fluid Suction Gun
- 4.
- 1.

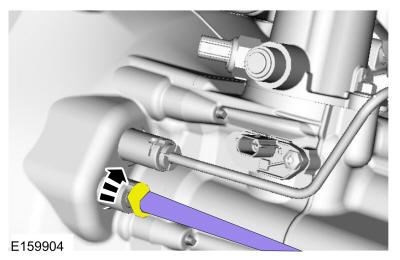

Open the clutch bleeder.
- 2.NOTE: Do not let the fluid go below the MIN mark on the reservoir.

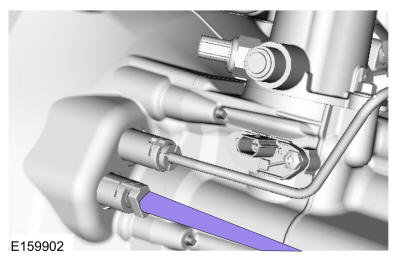

Vacuum brake fluid through the hydraulic system using the fluid suction gun. Use the General Equipment: Fluid Suction Gun
- 1.
- 7.
Pump the clutch pedal 5 times, using the full clutch pedal travel to remove any trapped air from the hydraulic system.
- 8.NOTE: Make sure that fluid level is to the MAX mark.
Fill the reservoir.
Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
- 9.
Start the engine and check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.
