Glove Box Module

GC0184190Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .
  3. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .

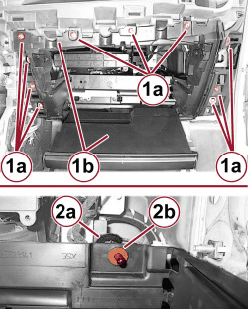

  4. Open the glove box (1b) and remove the screws (1a).
  5. Disconnect the glove box light switch (2b) wire harness connector (2a).
    GC0184250Courtesy of CHRYSLER GROUP, LLC
  6. Rotate the glove box (1a) backward and down until disengaging it from the crossmember (1b) and remove.
