REMOVAL
- Remove the side step (if equipped). Refer to STEP, SIDE, REMOVAL AND INSTALLATION .
- Remove the belly pan. Refer to BELLY PAN BEV .
- Drain the cooling system. Refer to DRAINING - LOW TEMP/BATTERY COOLING SYSTEM
.

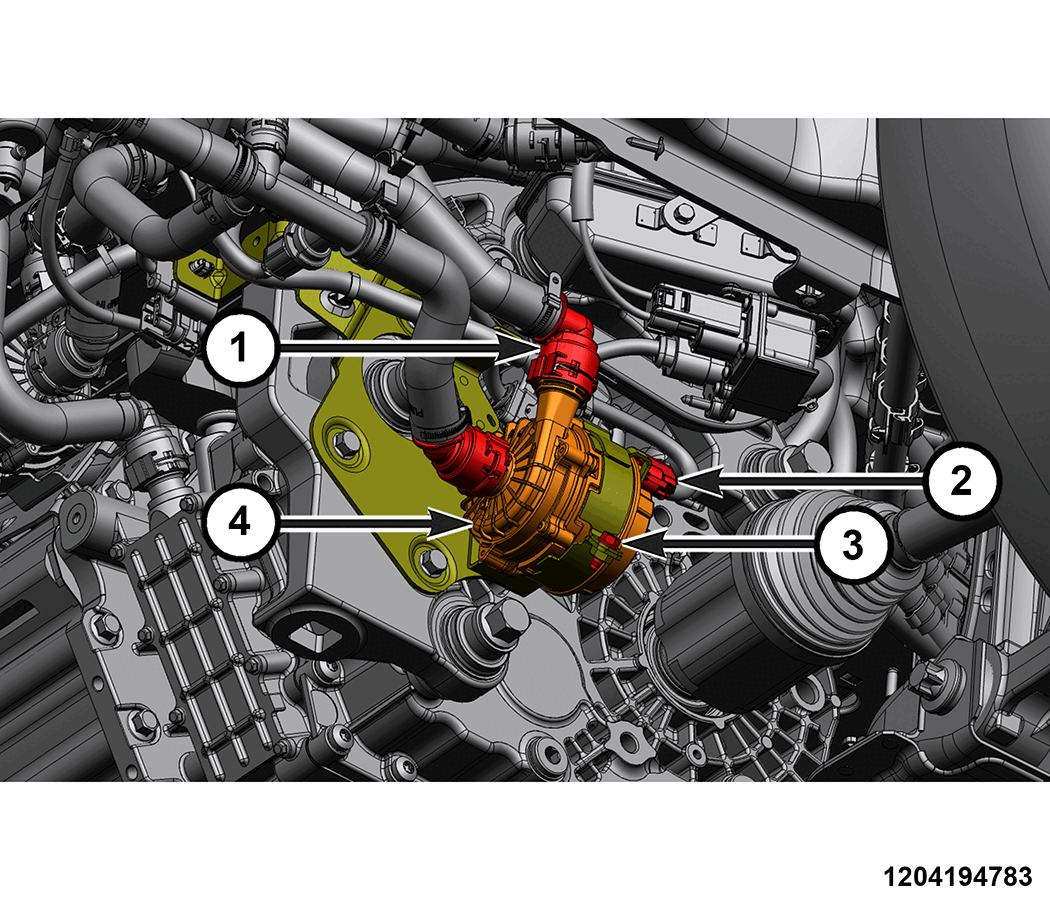

1 - Coolant Line Quick-Connect Fitting 2 - Coolant Pump Wire Harness Connector 3 - Coolant Pump Strap Bolt 4 - Coolant Pump - Disconnect the coolant hoses and wiring harness connector from the left coolant pump.
- Remove the bolt that secures the coolant pump to the bracket and remove the coolant pump.
- If necessary to remove the coolant pump bracket, remove the bracket fasteners and bracket.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Fill the cooling system. Refer to FILLING - LOW TEMP/BATTERY COOLING SYSTEM .
- Check the cooling system for leaks. Refer to BATTERY COOLING, DIAGNOSIS AND TESTING .
