Cooling Fan

WARNING: This page is about a different car, the 2024 RAM ProMaster EV. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the belly pan. Refer to BELLY PAN BEV .
Remove the right and left side underbody shields. Refer to SIDE UNDERBODY SHIELDS BEV .

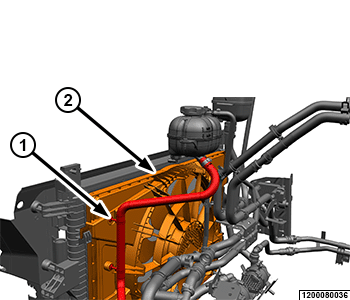

Release the two coolant hose retainers from the cooling fan.

Courtesy of CHRYSLER GROUP, LLC

1 - Coolant Hose Retainer

2 - Cooling Fan

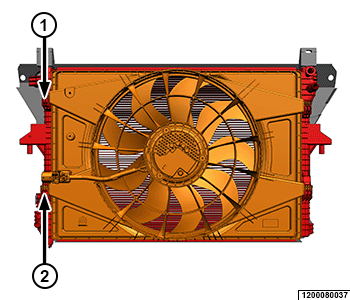

Disconnect the wiring harness connector from the cooling fan.

Courtesy of CHRYSLER GROUP, LLC

1 - Cooling Fan Wiring Harness Connector

2 - Cooling Fan Upper Retainer
Depress the lower retaining clips then lift the cooling fan upwards to release the upper retainers and remove the cooling fan.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
