Spindle, Rear: Installation

GC0204120Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear spindle to the axle.
  2. Install the NEW  spindle bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

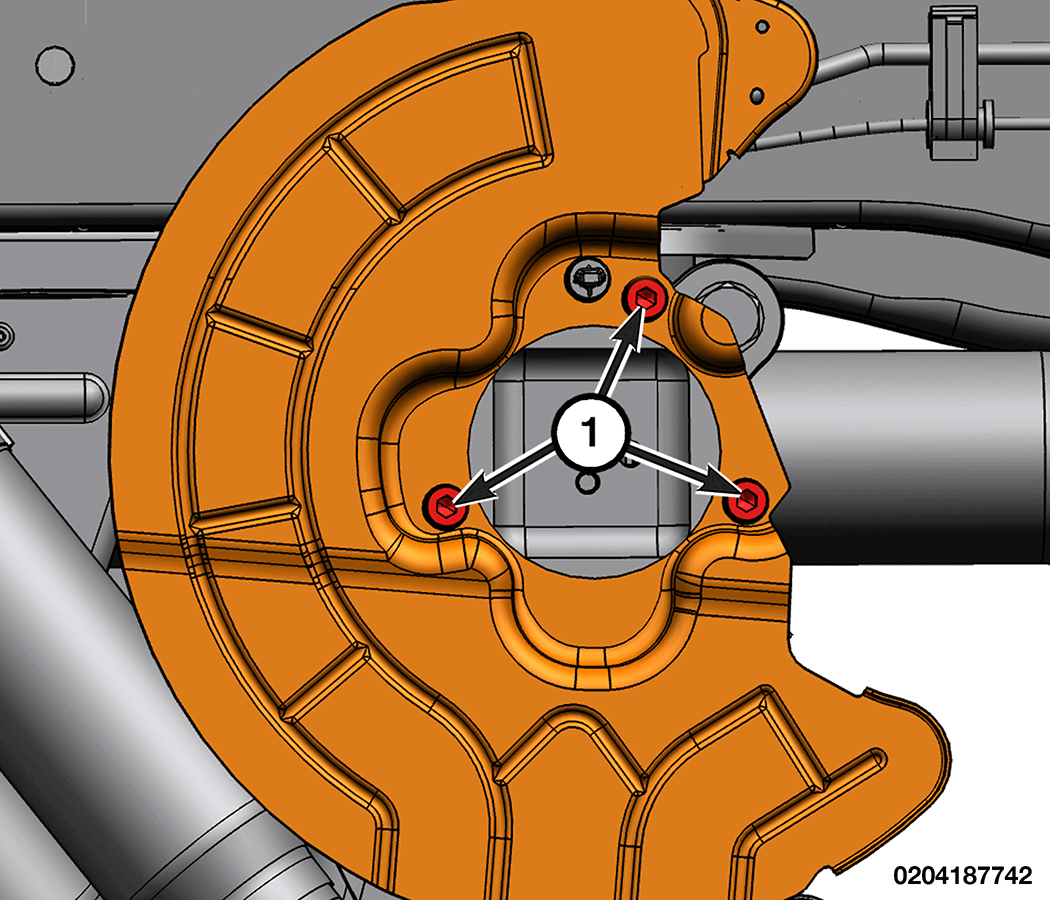

    GC0204075Courtesy of CHRYSLER GROUP, LLC
  3. Position the brake shield to the spindle.
  4. Install the brake shield mounting screws and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  5. Install the rear wheel speed sensor. Refer to SENSOR, WHEEL SPEED, REAR, INSTALLATION .
  6. Install the hub and bearing. Refer to HUB AND BEARING, INSTALLATION .
  7. Install the tire and wheel assembly. Refer to INSTALLATION .
  8. Remove the support and lower the vehicle.
  9. Remove the Electric Park Brake (EPB) from maintenance mode.
  10. Pump the brake pedal several times to make sure the vehicle has a firm brake pedal before moving the vehicle.
