Housing - HVAC

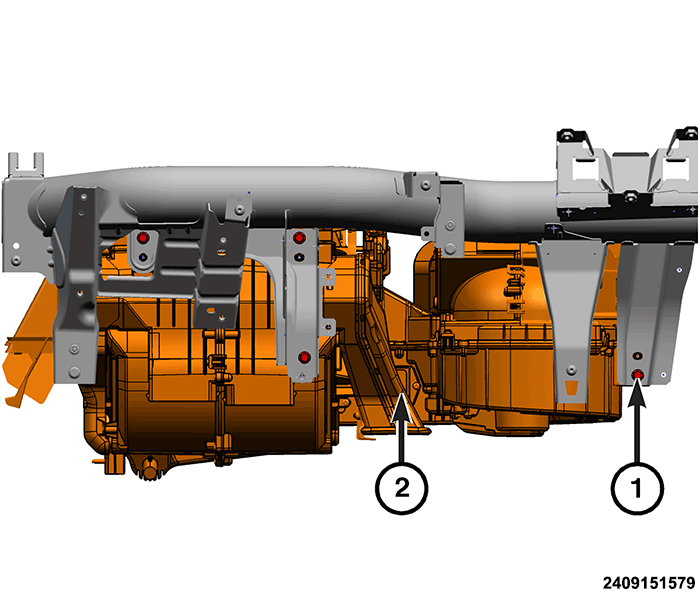

GC0183977Courtesy of CHRYSLER GROUP, LLC
NOTE:

HVAC case shown with instrument panel cover removed for clarity.

  1. Position the HVAC housing (2) to the instrument panel and tighten the four fasteners (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
  2. Connect the wire harness connectors to the HVAC housing.
  3. Install the radio. Refer to RADIO, INSTALLATION .
  4. Install the instrument panel. Refer to PANEL, INSTRUMENT, INSTALLATION .
  5. Connect the negative battery cable.
