Audio/Video/Entertainment/Connectivity (Service Information): Radio: Installation

Courtesy of CHRYSLER GROUP, LLC

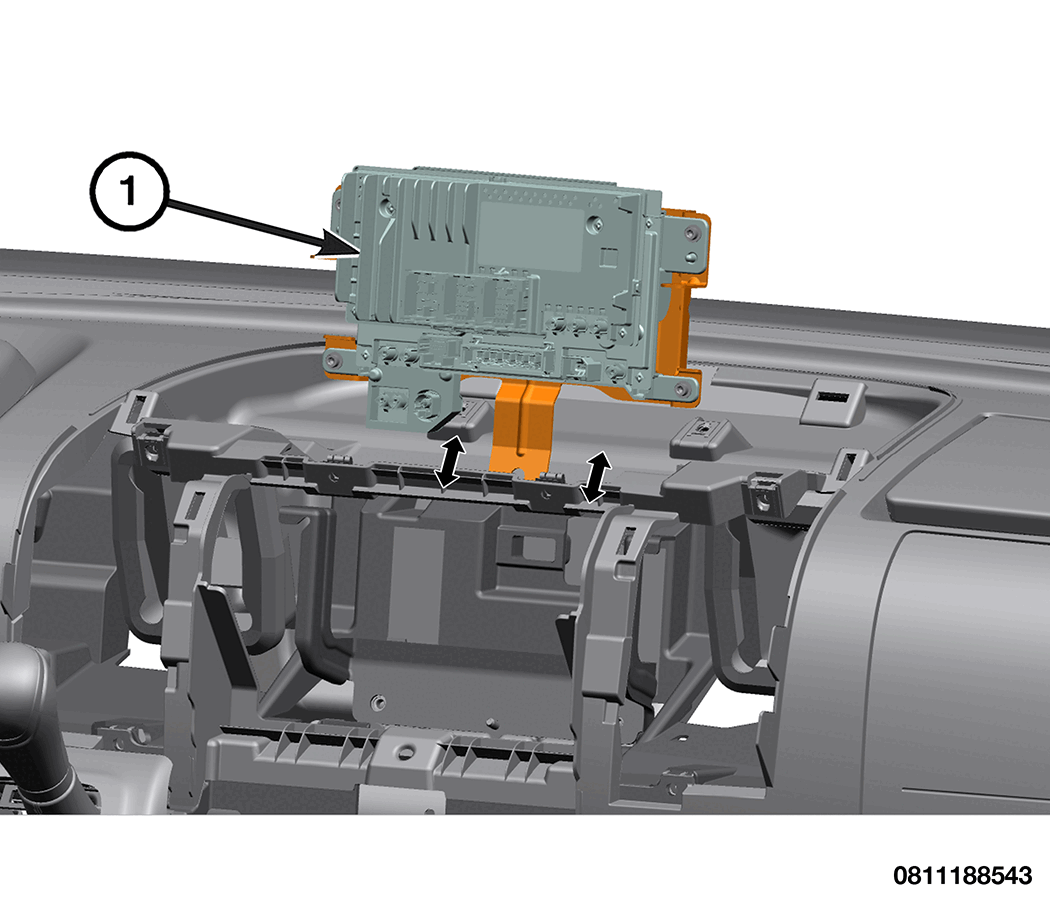

1. Position the radio (1) into the instrument panel.

   Courtesy of CHRYSLER GROUP, LLC

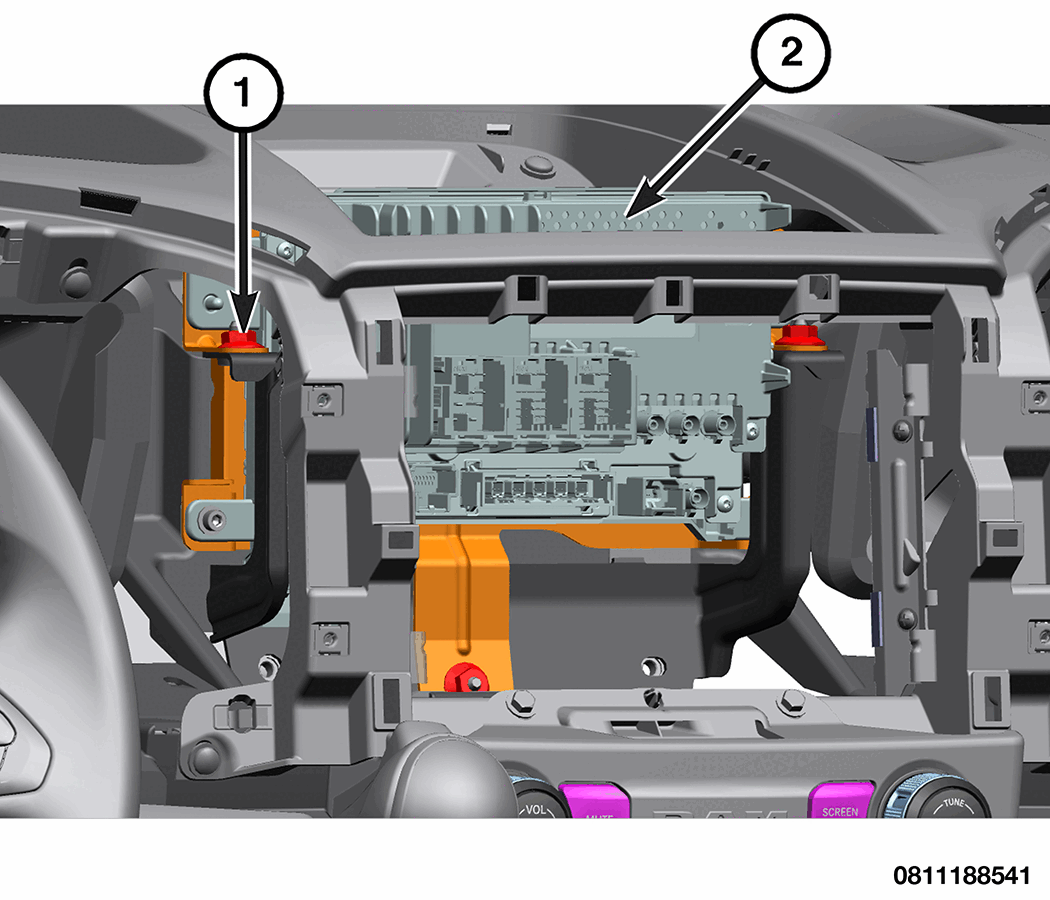

2. Install the radio bracket nuts (1) and tighten them securely.
3. Connect the antenna and wire harness connectors.
4. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .

NOTE:

The radio must be programmed after a radio replacement. Refer to MODULE REPLACEMENT AND PROGRAMMING ORDER GUIDE .
