Pan, Oil: Installation

CAUTION:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:

Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces thoroughly with isopropyl alcohol in preparation for sealant application. All surfaces that seal with RTV must be oil and contamination free to ensure proper adhesion of the RTV to the mating surface to prevent leaks.

CAUTION:

Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

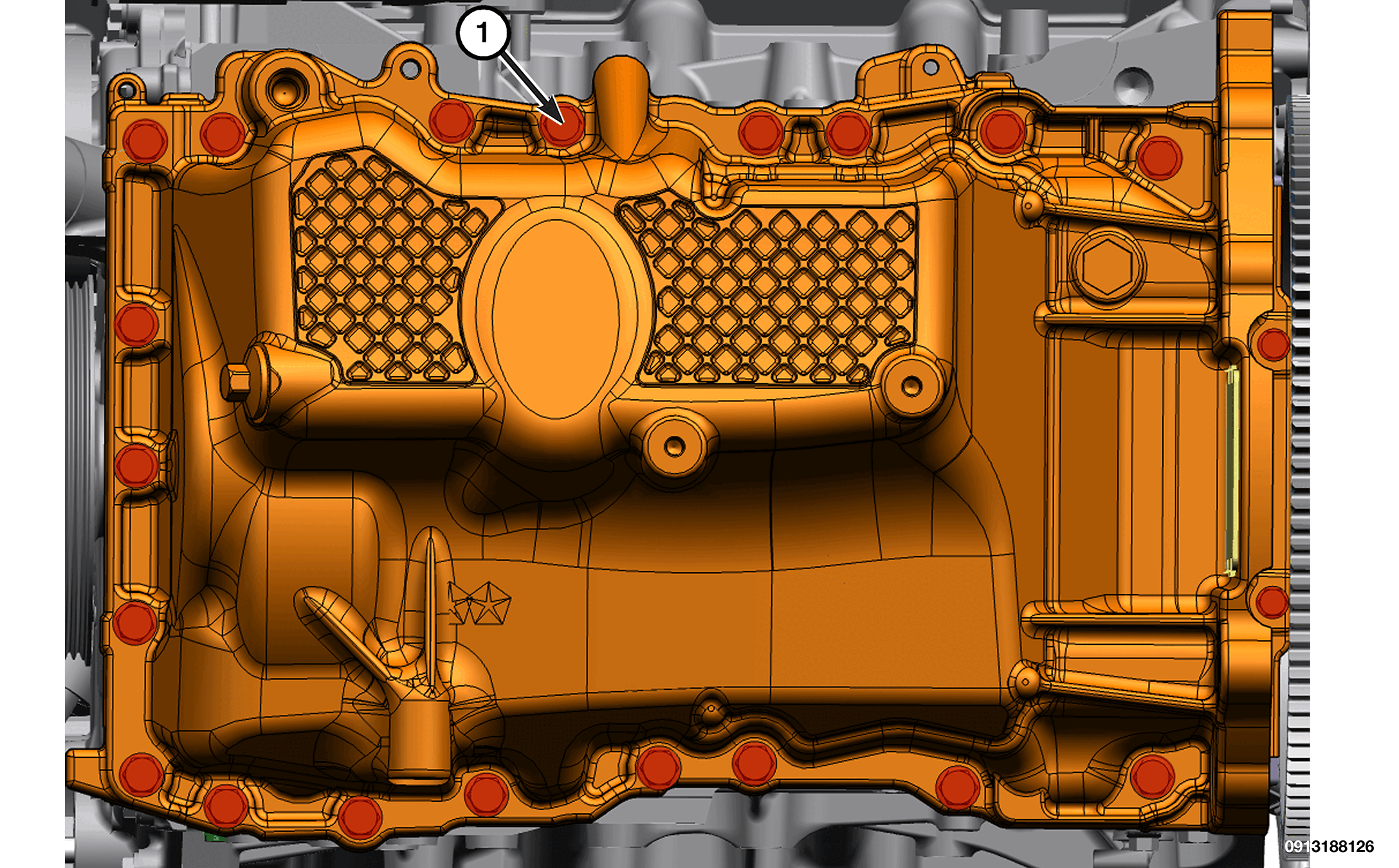

  1. Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the upper oil pan as shown in the following locations:
    • Oil pan to engine block flange.
    • Two timing cover to engine block T-joints.
    • Two rear seal retainer to engine block T-joints.
    GC0203826Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Make sure that the rear face of the oil pan is flush to the transmission bell housing before tightening any of the oil pan mounting bolts. A gap between the oil pan and the transmission could crack the oil pan or transmission casting.

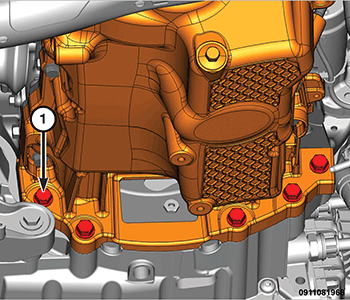

  2. Install the oil pan to the engine block and flush to the transmission bell housing. Secure the oil pan to the engine block with oil pan bolts (1) finger tight.
    GC0177721Courtesy of CHRYSLER GROUP, LLC
  3. Install the oil pan to transmission bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
    GC0203826Courtesy of CHRYSLER GROUP, LLC

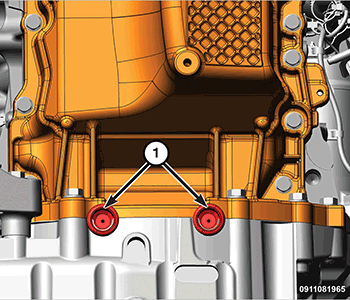

  4. Tighten the previously installed oil pan bolts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
    GC0177423Courtesy of CHRYSLER GROUP, LLC

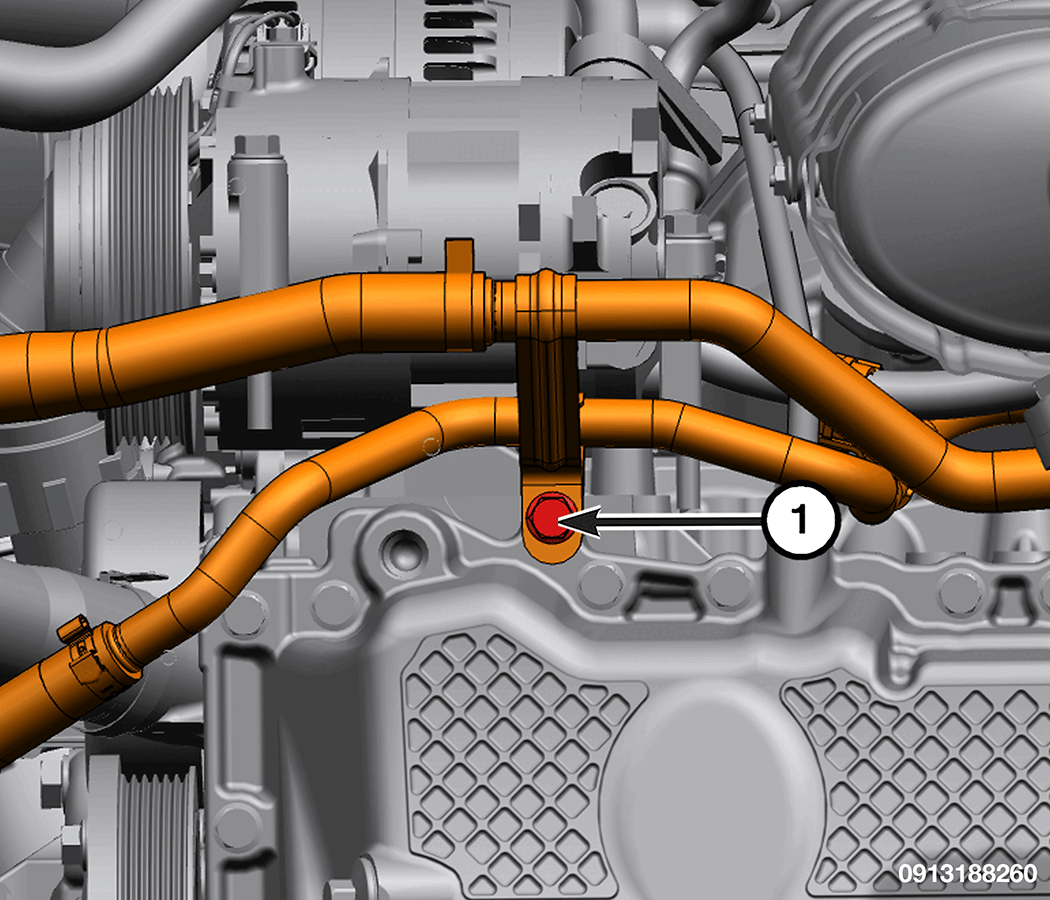

  5. Install the two rubber plugs (1) covering the rear oil seal retainer flange bolts.
    GC0203995Courtesy of CHRYSLER GROUP, LLC
  6. Install the coolant tube to oil pan bolt (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  7. Install the cross-under pipe. Refer to PIPE, EXHAUST CROSSUNDER, INSTALLATION .
  8. Install the right halfshaft. Refer to INSTALLATION .
  9. Install the intermediate shaft bearing support bracket bolts securing it to the oil pan and engine block. Tighten the bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  10. If equipped, install the belly pan.
  11. Lower the vehicle.
    GC0203846Courtesy of CHRYSLER GROUP, LLC

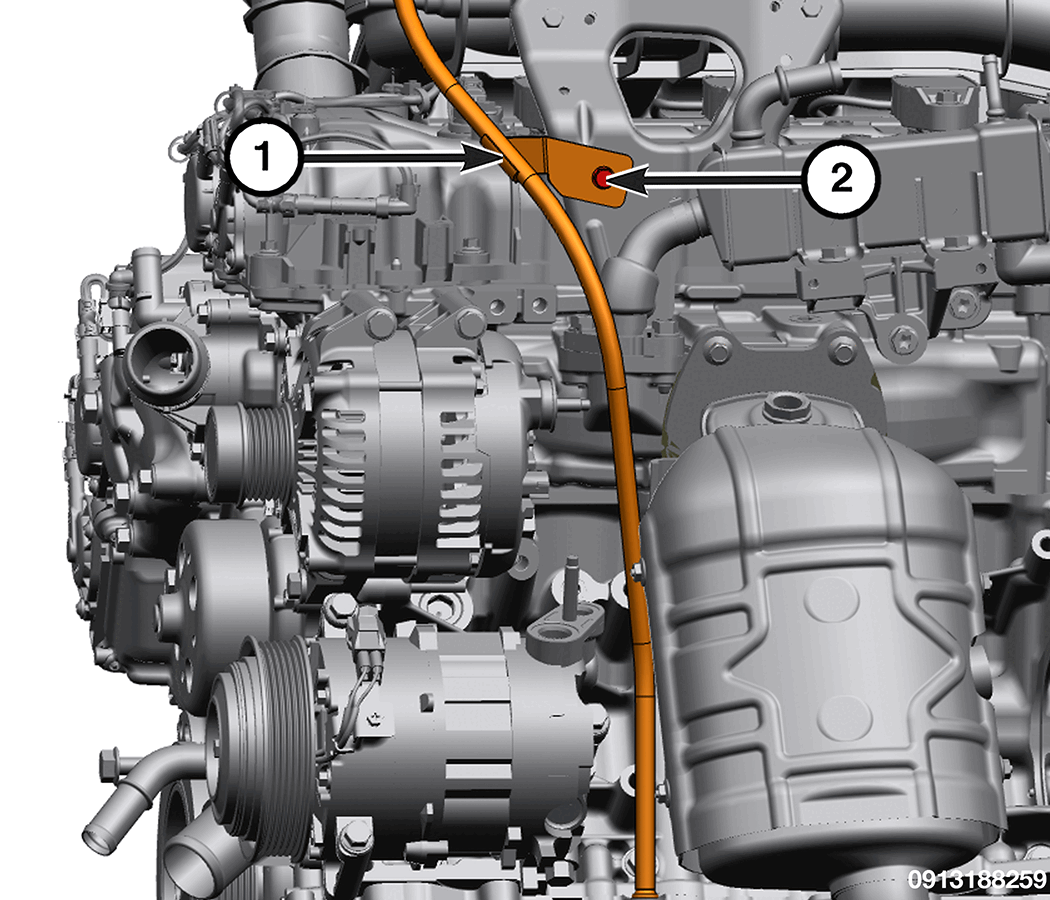

  12. Install the oil level indicator (1) and tighten the oil level indicator bolt (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  13. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  14. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL SERVICE .
  15. Connect the negative battery cable.
  16. Run the engine until it reaches normal operating temperature.
