Body, Air Cleaner: Installation

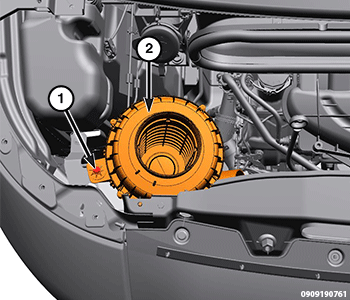

GC0204053Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner body (2) and tighten the bolt (1) securely.

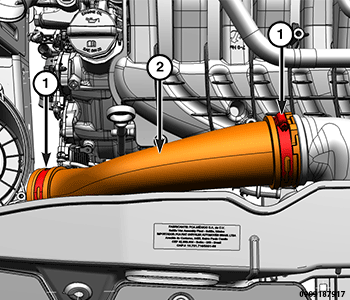

    GC0203947Courtesy of CHRYSLER GROUP, LLC
  2. Install the air inlet tube (2) and tighten the clamps (1) securely.

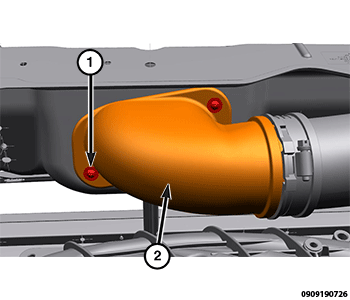

    GC0204069Courtesy of CHRYSLER GROUP, LLC
  3. Install the screws (1) that hold the fresh air tube (2) to the core support.
