Track, Center: Removal

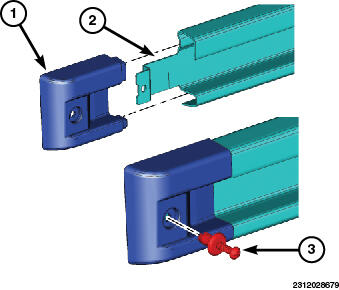

GC0160272Courtesy of CHRYSLER GROUP, LLC
  1. Open sliding door.
  2. Remove the fastener (3) and remove the rear trim piece (1) from the track (2).
  3. Support the sliding door.
  4. Remove the sliding door center hinge. Refer to HINGE, UPPER, REMOVAL .

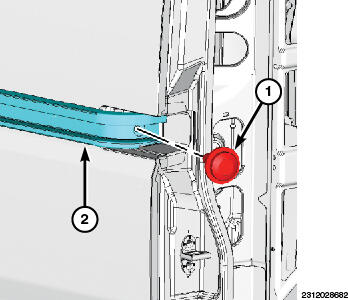

    GC0160202Courtesy of CHRYSLER GROUP, LLC
  5. Remove the front fastener (1).

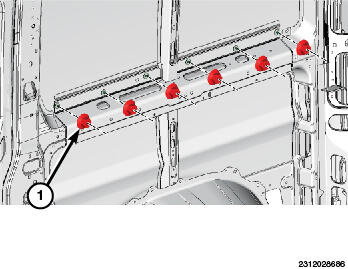

    GC0160461Courtesy of CHRYSLER GROUP, LLC
  6. Remove the interior trim. Refer to PANEL, QUARTER TRIM, REMOVAL .
  7. Remove the track fasteners (1).

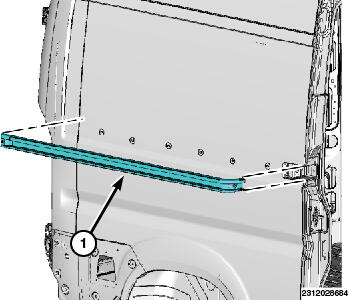

    GC0160318Courtesy of CHRYSLER GROUP, LLC
  8. Remove the center track (1) from the vehicle.
