Panel, Quarter Trim: Removal

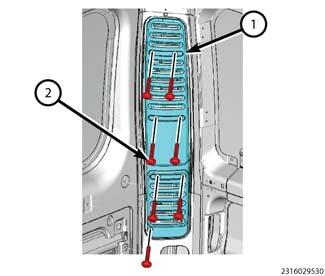

GC0160334

Courtesy of CHRYSLER GROUP, LLC

Remove fasteners (2) and remove quarter trim (1).
