Hinge, Upper: Removal

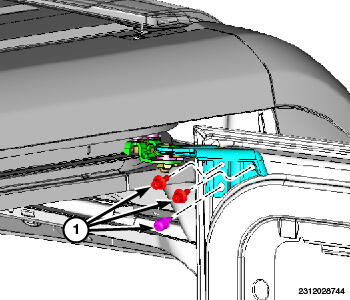

GC0160523Courtesy of CHRYSLER GROUP, LLC
  1. Open sliding door.
  2. Protect painted areas with tape.
  3. Remove the stop bumper.
  4. Mark the outline of the upper hinge bracket on the sliding door.
  5. Remove the upper hinge fasteners (1) from door.

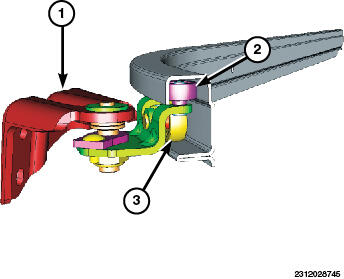

    GC0160432Courtesy of CHRYSLER GROUP, LLC
  6. Slide hinge (1) to rear of track.
  7. Rotate roller (3) out of upper channel.
