8HP50/850RE Automatic Transmission (Service Information): Installation

CAUTION:

The transmission and torque converter must be removed as an assembly to avoid component damage. The converter driveplate, oil pump, or oil seal can be damaged if the converter is left attached to the driveplate during removal. Be sure to remove the transmission and converter as an assembly.

NOTE:

If the transmission is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the TRANSMISSION VERIFICATION TEST. Refer to TRANSMISSION VERIFICATION TEST .

  1. If a replacement transmission is being installed, transfer any components necessary, such as the Mechanical Park Release (MPR) bracket and lever from the original transmission onto the replacement transmission.
  2. Apply a light coating of Mopar® High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.
  3. Install the torque converter. Refer to TORQUE CONVERTER, INSTALLATION .
    GC0158384Courtesy of CHRYSLER GROUP, LLC
  4. Place the transmission on a jack and secure with chains or similar.
  5. Raise transmission and align the torque converter with the flexplate and the transmission converter housing with the engine block.
    NOTE:

    If the torque converter was spun or removed, align torque converter bolt holes with the starter pocket to ease bolt installation.

  6. Move transmission forward. Then raise, lower, or tilt transmission to align the converter housing with the engine block dowels.
    NOTE:

    It may be necessary to support the rear of the engine during transmission installation.

  7. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.

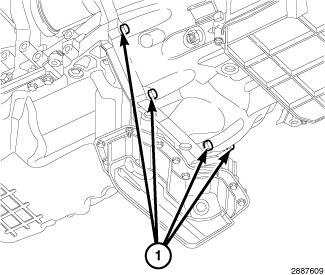

    GC0209153Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission To Engine Oil Pan Bolts
  8. Install the transmission to engine oil pan bolts.
    GC0209148Courtesy of CHRYSLER GROUP, LLC
    1 - Engine
    2 - Transmission
    3 - Engine To Transmission Bolts
    4 - Transmission To Engine Bolts
  9. Install remaining transmission to engine and engine to transmission bolts. Tighten all torque converter housing bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

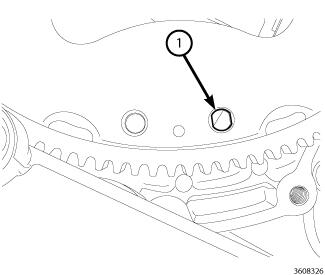

    GC0209114Courtesy of CHRYSLER GROUP, LLC
    1 - Close Tolerance Torque Converter Bolt Hole In Flexplate
  10. Rotate the crankshaft in a clockwise direction to line up the close tolerance torque converter bolt hole in the flexplate, then start the first torque converter to flexplate bolt.

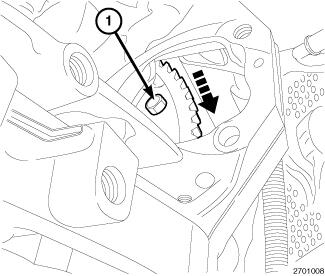

    GC0209809Courtesy of CHRYSLER GROUP, LLC
    1 - Torque Converter To Flexplate Bolt
    NOTE:

    Install all torque converter bolts by hand first. There are 3 sets of two bolts 120° apart.

  11. Rotate the crankshaft in a clockwise direction and hand start the flexplate to torque converter bolts as they become accessible.
  12. Tighten all of the torque converter to flexplate bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
    GC0184547Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Vent Hose
  13. Connect the transmission vent hose.

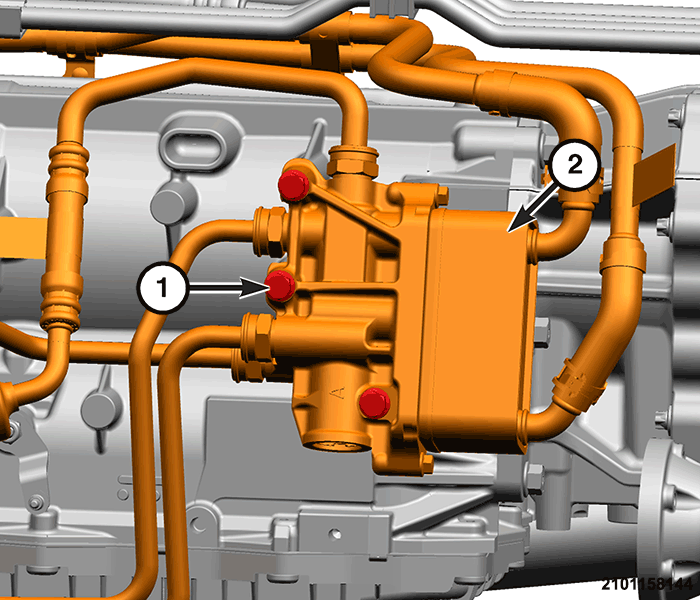

    GC0184565Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Oil Heater Bolts
    2 - Transmission Oil Heater
  14. Position the transmission oil heater and install the transmission oil heater bolts, tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .

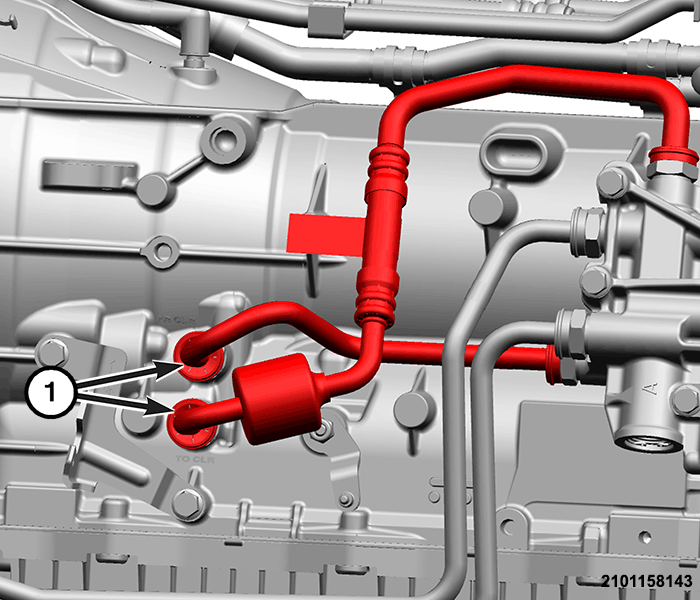

    GC0184447Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Oil Cooler Lines
  15. Connect the transmission oil lines to the transmission and oil heater. Be sure that the lines are fully seated.
  16. Snap the dust covers over the line fitting.
    GC0173635Courtesy of CHRYSLER GROUP, LLC
    1 - Speed Nut
    2 - Transmission Oil Cooler Line Bracket
    3 - Engine Oil Dipstick Tube
  17. Install the speed nut retaining the transmission cooler line bracket at the bellhousing, near the engine oil dipstick tube.
    GC0158324Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Oil Cooler Line Clip
  18. Connect left front transmission line clip.

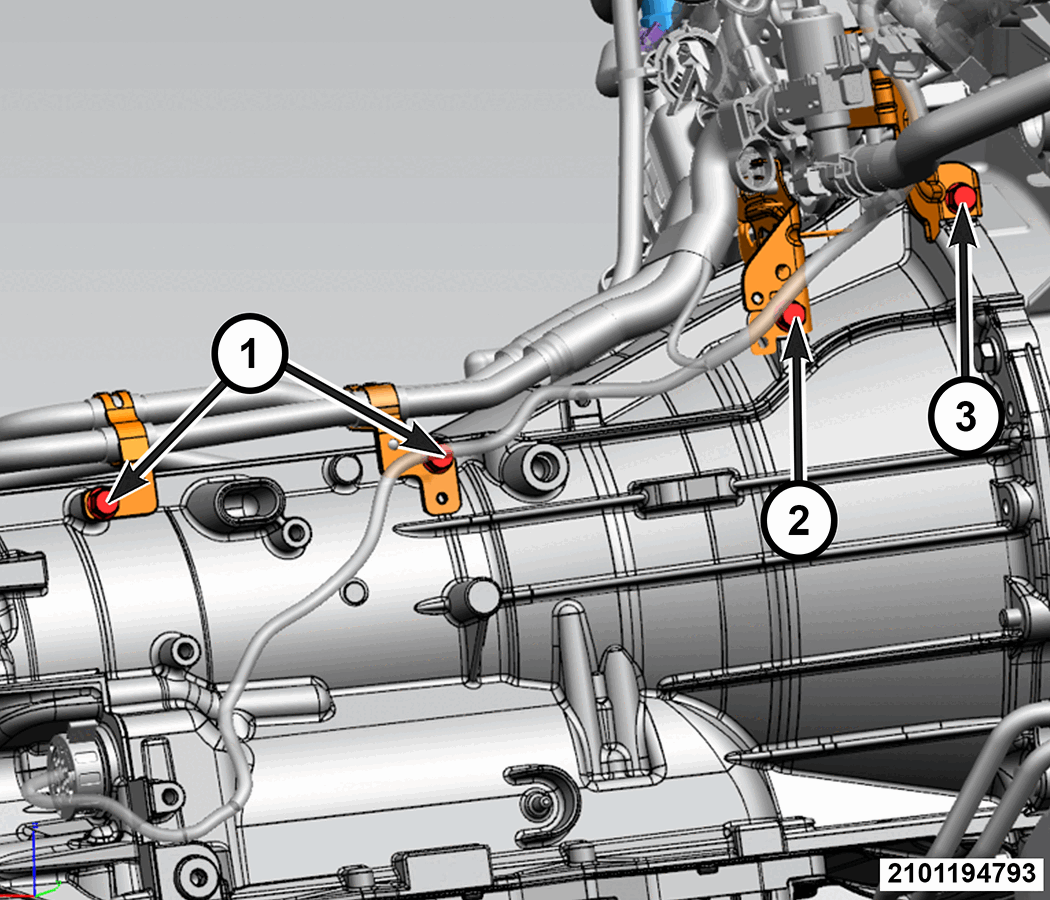

    GC0207324Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Oil Heater Coolant Hose Bracket Bolts
    2 - Oxygen Sensor Wire Harness Bracket Bolt
    3 - Coolant Control Valve Bracket Bolt
  19. Install the coolant control valve bracket bolt and tighten securely.
  20. Install the oxygen sensor wire harness bracket bolt and tighten securely.
  21. Install the transmission oil heater coolant hose bracket bolts to the right side of the transmission.
    GC0158322Courtesy of CHRYSLER GROUP, LLC
    1 - Manual Park Release (MPR) Cable Locking Tab
    2 - MPR Cable
    3 - MPR Cable Bracket
  22. Install the Manual Park Release (MPR) cable into the bracket and lock into place.
    GC0209151Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Wire Harness Connector
    2 - Transmission Wire Harness Connector Bayonet Lock
  23. Check O-ring on transmission wire harness connector, and replace if necessary.
  24. Install the transmission wire harness connector into the adapter plug. Turn bayonet lock of the adapter plug clockwise to lock.
  25. Install the transfer case. Refer to INSTALLATION .
    NOTE:

    Support the front of the front driveshaft, do not install the front driveshaft to axle bolts until the left side catalytic converter is installed.

  26. If 4WD, install the front driveshaft to the transfer case. Refer to SHAFT, DRIVE, FRONT, INSTALLATION .
    GC0158349Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Crossmember Bolts
    2 - Transmission Mount Nuts
    3 - Transmission Crossmember Bolts
  27. Install the transmission crossmember and tighten bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  28. Install the transmission mount nuts and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  29. Install the rear driveshaft. Refer to SHAFT, DRIVE, REAR, INSTALLATION .

    .

    GC0158366Courtesy of CHRYSLER GROUP, LLC
    1 - Manual Park Release (MPR) Cable
    2 - MPR Lever
    3 - Cable Tie
  30. Remove the cable tie from the MPR lever.
  31. Connect the MPR cable to the MPR lever.
  32. Install heat shield for rear driveshaft/muffler.
  33. If 4WD, install the front driveshaft heat shield.
  34. If 4WD, install the front driveshaft to axle flange bolts and tighten to the proper specifications. Refer to TECHNICAL SPECIFICATIONS .
  35. Install the muffler. Refer to MUFFLER, EXHAUST, INSTALLATION (3.6L SINGLE EXHAUST) or MUFFLER, EXHAUST, INSTALLATION (3.6L DUAL EXHAUST) .

    .

  36. Install the starter. Refer to STARTER, INSTALLATION or STARTER, INSTALLATION, 3.6L W/ESS .
  37. If equipped, install skid plates. Refer to PLATE, SKID, FRONT, INSTALLATION , PLATE, SKID, FRONT SUSPENSION, INSTALLATION , PLATE, SKID, FUEL TANK, INSTALLATION , PLATE, SKID, TRANSMISSION, INSTALLATION or PLATE, SKID, TRANSFER CASE, INSTALLATION .
  38. Lower the vehicle.
  39. Fill the transmission with appropriate fluid. Refer to STANDARD PROCEDURE - TRANSMISSION FILL AFTER SERVICE  .
  40. Connect the battery negative cable.
  41. If the valve body is replaced, program the Transmission Control Module (TCM). Refer to MODULE, TRANSMISSION CONTROL (TCM), MODULE PROGRAMMING .
  42. Perform the TRANSMISSION VERIFICATION TEST. Refer to TRANSMISSION VERIFICATION TEST .
