Plate, Skid, Fuel Tank: Installation

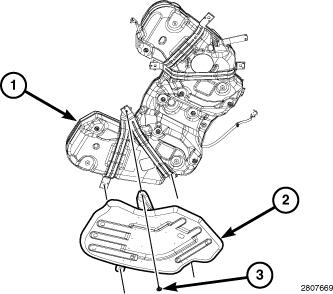

NOTE:

Right side shown, left side similar.

GC0209365Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel tank skid plate (2) and install the four nuts (3).
  2. Tighten the fuel tank skid plate nuts (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Remove the support and lower the vehicle.
