Plate, Skid, Transfer Case: Installation

Courtesy of CHRYSLER GROUP, LLC

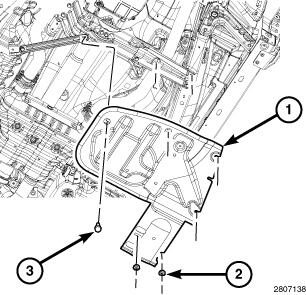

1. Install the transfer case skid plate (1) and install the bolts (3) and nuts (2).
2. Tighten the transfer case skid plate bolts (3) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
3. Tighten the transfer case skid plate nuts (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
4. Remove the support and lower the vehicle.
