Pump, Electric Vacuum: Removal

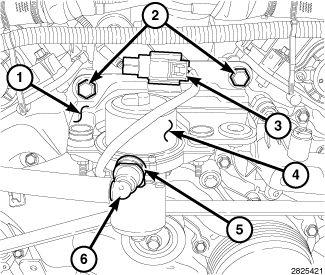

GC0145468Courtesy of CHRYSLER GROUP, LLC
  1. Remove the air cleaner body. For 3.6L Engines, Refer to REMOVAL . For 5.7L Engines, Refer to REMOVAL . For 6.4L Engines, Refer to BODY, AIR CLEANER, REMOVAL .
  2. Disconnect the electrical connector (3) and remove the harness connector from the mounting bracket (1).
  3. Release the locking tab (5) and disconnect the quick connect vacuum hose (6) from the vacuum pump (4).
  4. Remove the vacuum pump bracket bolts (2) and remove the vacuum pump assembly from the vehicle.
