Body, Air Cleaner: Removal
WARNING: This page is about a different variant/trim than selected.

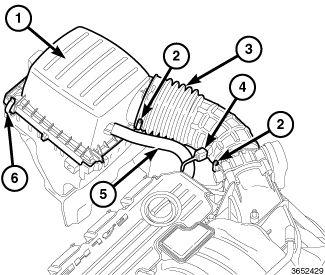

- Loosen the air duct retaining clamp at the throttle body (2).
- Disconnect the intake air temperature sensor electrical connector (4).
- Remove the makeup air hose (5) at the air cleaner housing.
- While lifting up the air cleaner housing (1), slide the air duct (3) off the throttle body and remove the air cleaner housing from the vehicle.
- If required, remove the air duct retaining clamp at the air filter housing cover (2).
