Body, Air Cleaner: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .

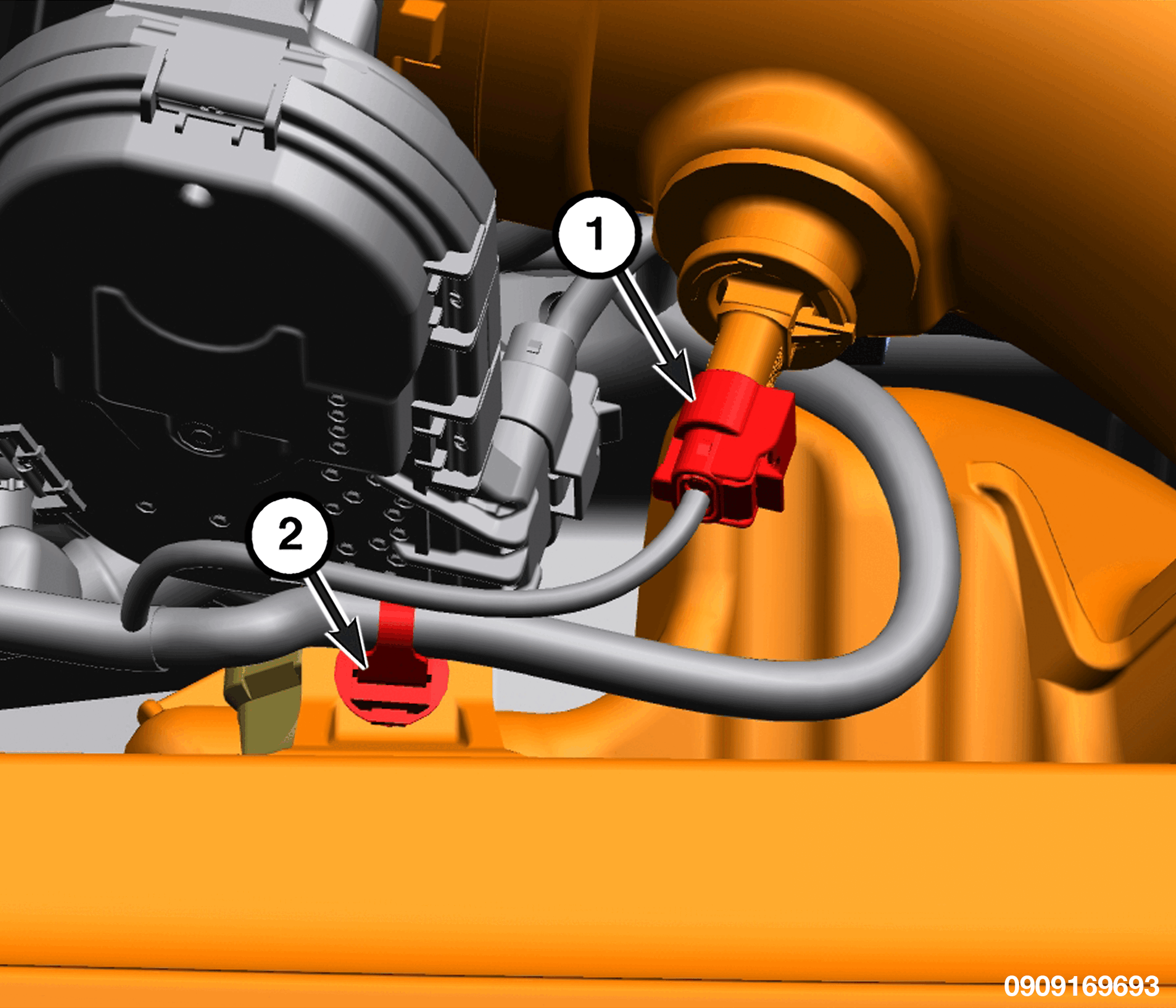

    GC0192172Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector from the Inlet Air Temperature (IAT) sensor (1).
  4. Disconnect the wire harness retainer (2) from the air cleaner resonator.

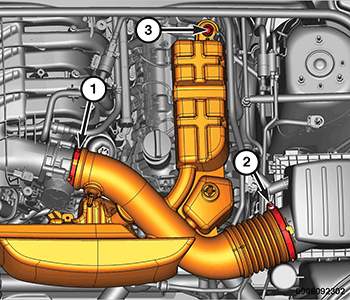

    GC0173627Courtesy of CHRYSLER GROUP, LLC
  5. Loosen the clamp (1) at the throttle body.
  6. Loosen the clamp (2) at the air cleaner body.
  7. Disengage the air cleaner assembly from the rubber grommets (3).
  8. Remove the resonator.

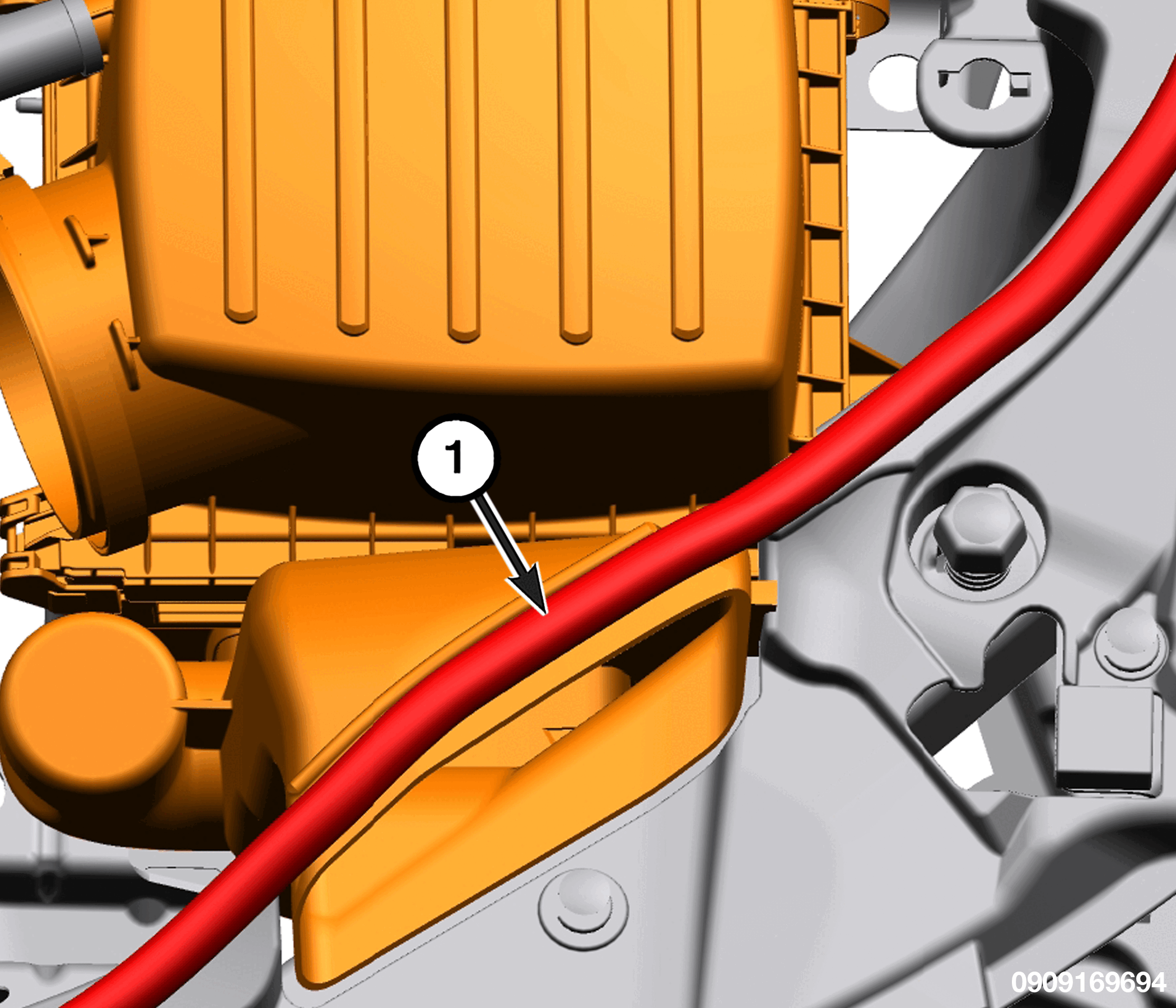

    GC0192174Courtesy of CHRYSLER GROUP, LLC
  9. Remove the hood seal (1) from the air cleaner body.

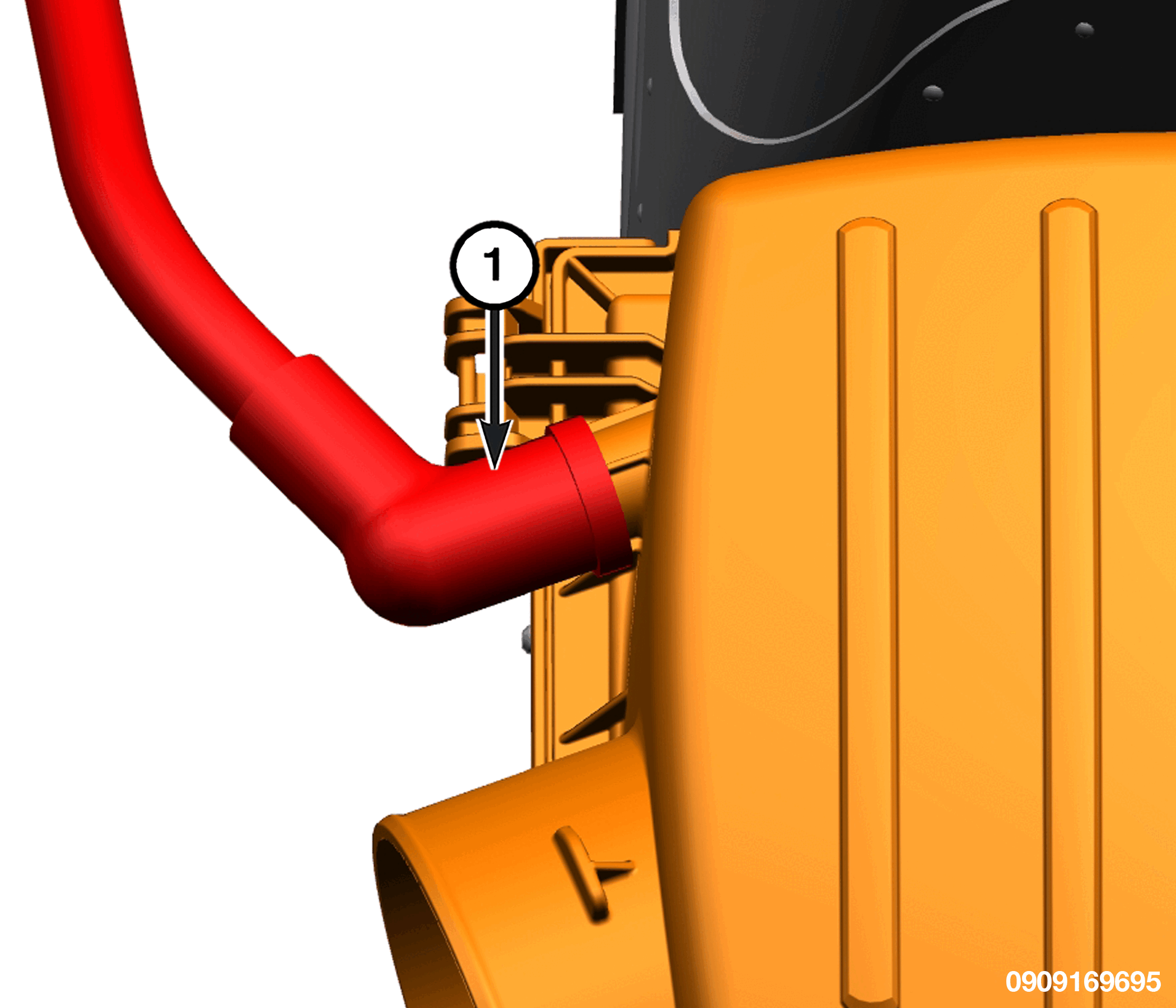

    GC0192197Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the fresh air makeup hose (1) from the air cleaner body.

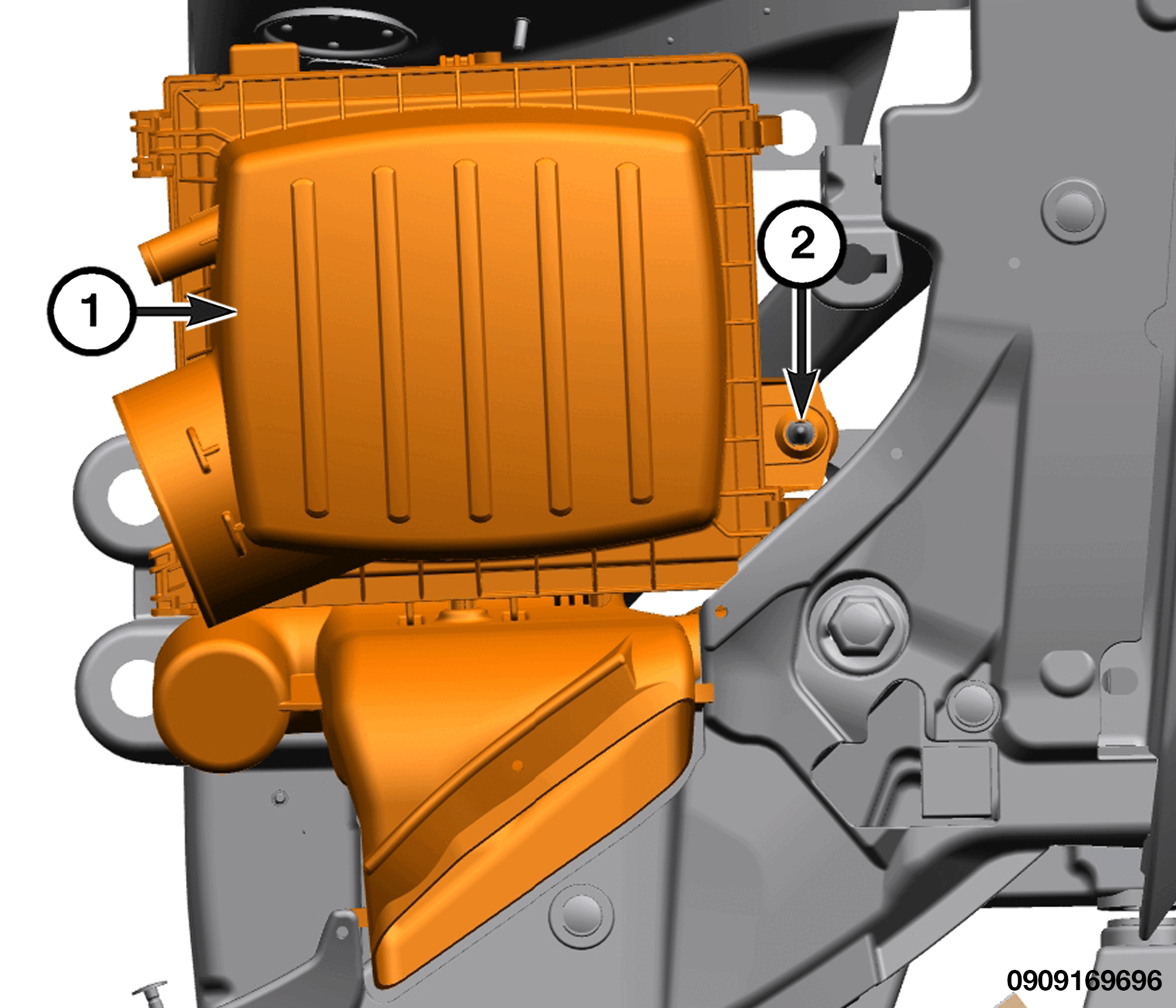

    GC0192200Courtesy of CHRYSLER GROUP, LLC
  11. Pull the air cleaner body (1) straight up off of the locating pins (2).
