Shifter - Instrument Panel Mount

WARNING: This page is about a different variant/trim than selected.
  1. Remove the instrument panel bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  3. Remove the Transmission Control Module (TCM). Refer to MODULE, TRANSMISSION CONTROL (TCM), REMOVAL .
  4. Remove the Knee AirBag (KAB). Refer to AIR BAG, KNEE BLOCKER, REMOVAL .

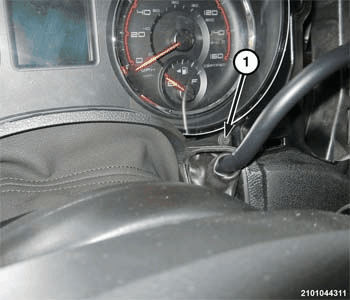

    GC0162398Courtesy of CHRYSLER GROUP, LLC
  5. Remove the steering column shroud gap hider screw (1).

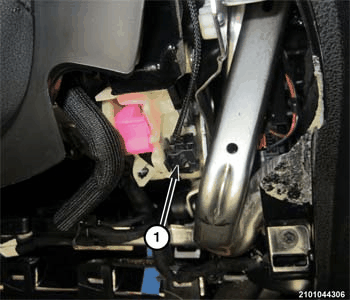

    GC0162390Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the gearshift lever electrical connector (1).

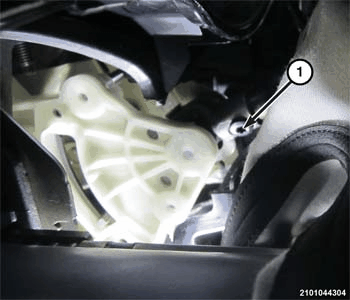

    GC0162382Courtesy of CHRYSLER GROUP, LLC
  7. Remove the gearshift lever screw (1) and pull the gearshift lever out of the shifter assembly.
    NOTE:

    The gearshift lever will remain in the vehicle.

    GC0162399Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the gearshift cable end (1) from the shifter assembly, pull the gearshift cable bracket lock (2) outward and remove the gearshift cable from the shifter assembly bracket (3).

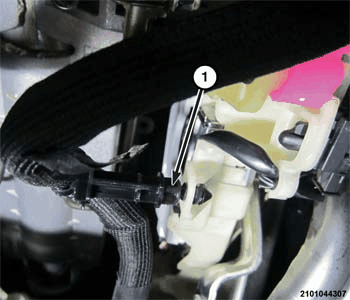

    GC0162417Courtesy of CHRYSLER GROUP, LLC
  9. Detach the wiring harness push pin (1) from the shifter assembly.

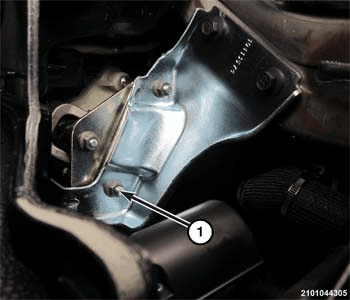

    GC0162396Courtesy of CHRYSLER GROUP, LLC
  10. Remove the shifter assembly nuts (1).

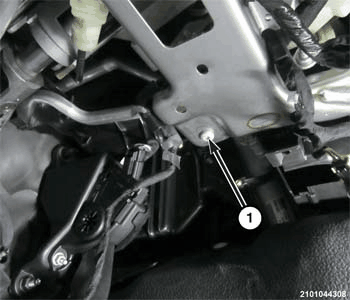

    GC0162378Courtesy of CHRYSLER GROUP, LLC
  11. Remove the shifter assembly screw (1).

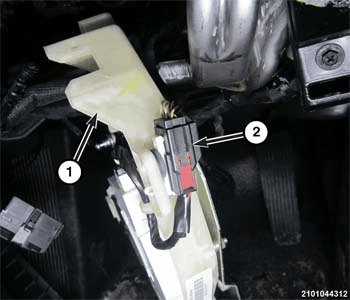

    GC0162423Courtesy of CHRYSLER GROUP, LLC
  12. Position the shifter assembly (1) so the electrical connector (2) is accessible.
  13. Disconnect the electrical connector (2) and remove the shifter assembly (1) from the vehicle.
