Cover, Steering Column Opening: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument panel end cap. Refer to CAP, INSTRUMENT PANEL END, REMOVAL .
    GC0158481Courtesy of CHRYSLER GROUP, LLC

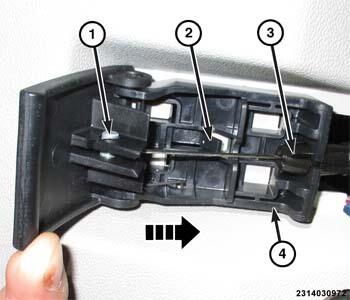

  3. Remove the hood release handle. Lift the retaining tab (2) and slide the handle (4) forward to remove it from the steering column opening cover.
    GC0170762Courtesy of CHRYSLER GROUP, LLC

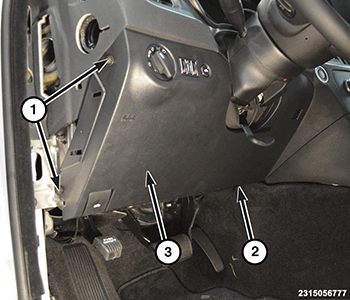

  4. Remove the two screws (1) on the side of the steering column opening cover (3).
  5. Using a trim stick or equivalent, remove the steering column opening cover and disconnect the wire harness connectors.
  6. Lower the steering column opening cover and separate the parking brake release cable from the parking brake handle, if equipped.
