Fascia, Front: Removal

GC0170704Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.

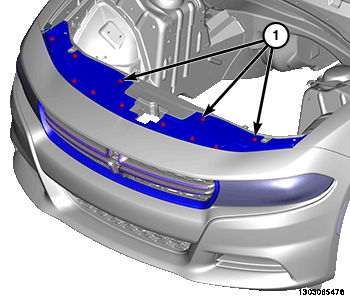

  2. Remove the 12 upper radiator fasteners (1).
    GC0173383Courtesy of CHRYSLER GROUP, LLC

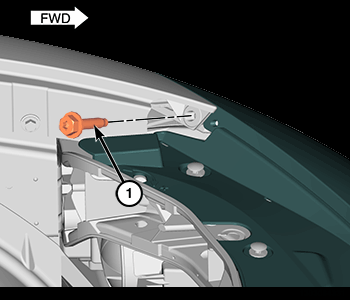

  3. Remove the upper fender to fascia bolts (1) from each side.
    GC0170714Courtesy of CHRYSLER GROUP, LLC
  4. Remove the front wheelhouse splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  5. Remove the engine belly pan. Refer to BELLY PAN, REMOVAL .

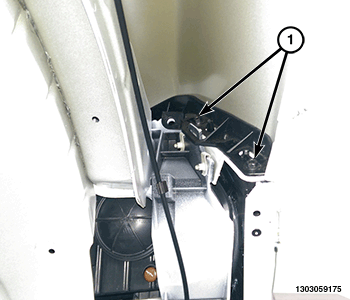

  6. Remove the fascia to fender screws (1) from both sides.
    GC0170676Courtesy of CHRYSLER GROUP, LLC

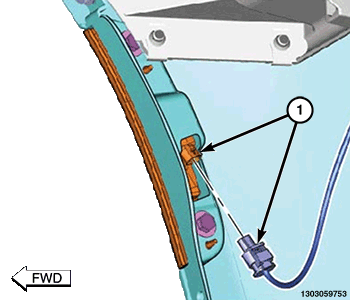

  7. Disconnect the marker light electrical connectors (1).
    GC0170799Courtesy of CHRYSLER GROUP, LLC

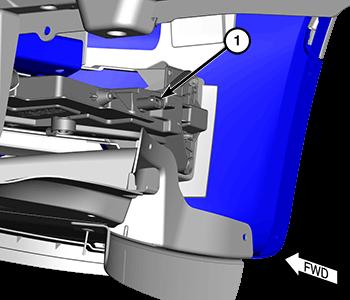

  8. Disconnect the fog lamps (1), if equipped.
    GC0170599Courtesy of CHRYSLER GROUP, LLC

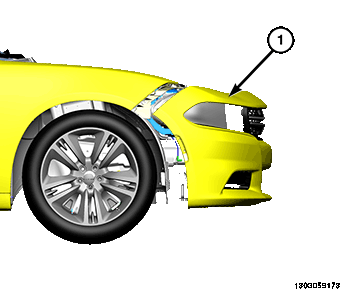

  9. Pull the sides of the front fascia (2) to disengage the retainers (3), then pull the front fascia forward and remove.
