Belly Pan: Removal

Courtesy of CHRYSLER GROUP, LLC

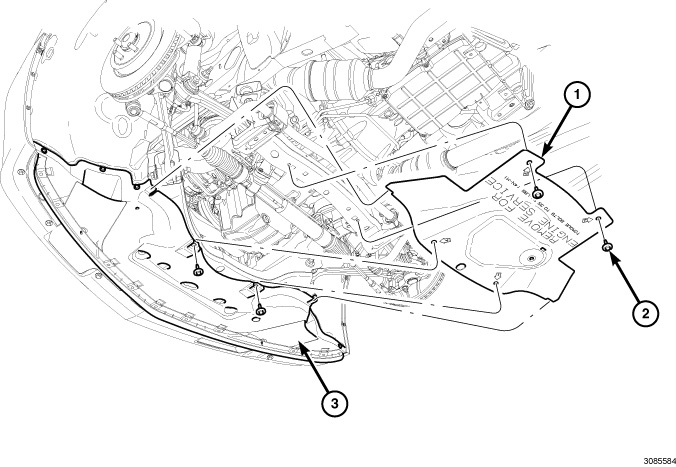

NOTE:

Base model shown in illustration, SRT models similar.

Raise and support the vehicle.
Remove the four fasteners (2) that secure the rear belly pan (1) to the underside of the vehicle.
Pull the rear belly pan (1) rearward out of the from the front belly pan (3) to remove from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

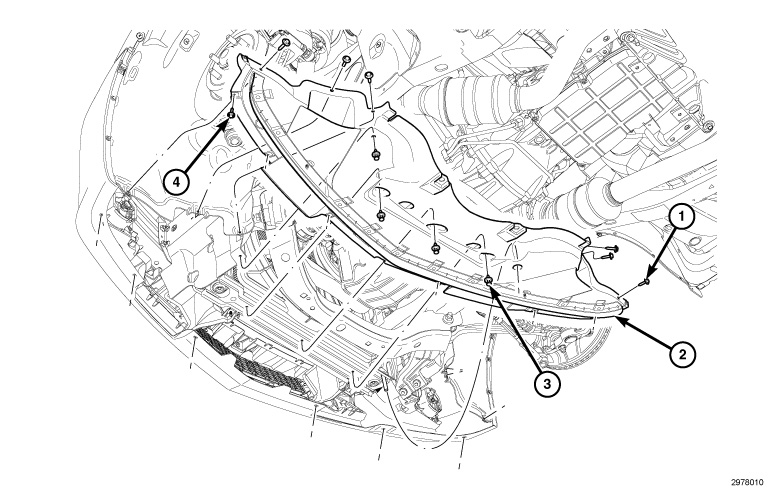

Remove the six screws (4) that secure the front belly pan (2) to the underside of the vehicle's front fascia.
Remove the three screws (1) that secure the front belly pan (2) to the underside of the vehicle's wheelhouse inner. Repeat for the other side.
Remove the four push pin fasteners (3) that secure the front belly pan (2) to the underside of the vehicle's lower crossmember. Repeat for the other side.
Remove the front belly pan (2) from the underside of the vehicle.
