Fuel Level Sending Unit / Sensor: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

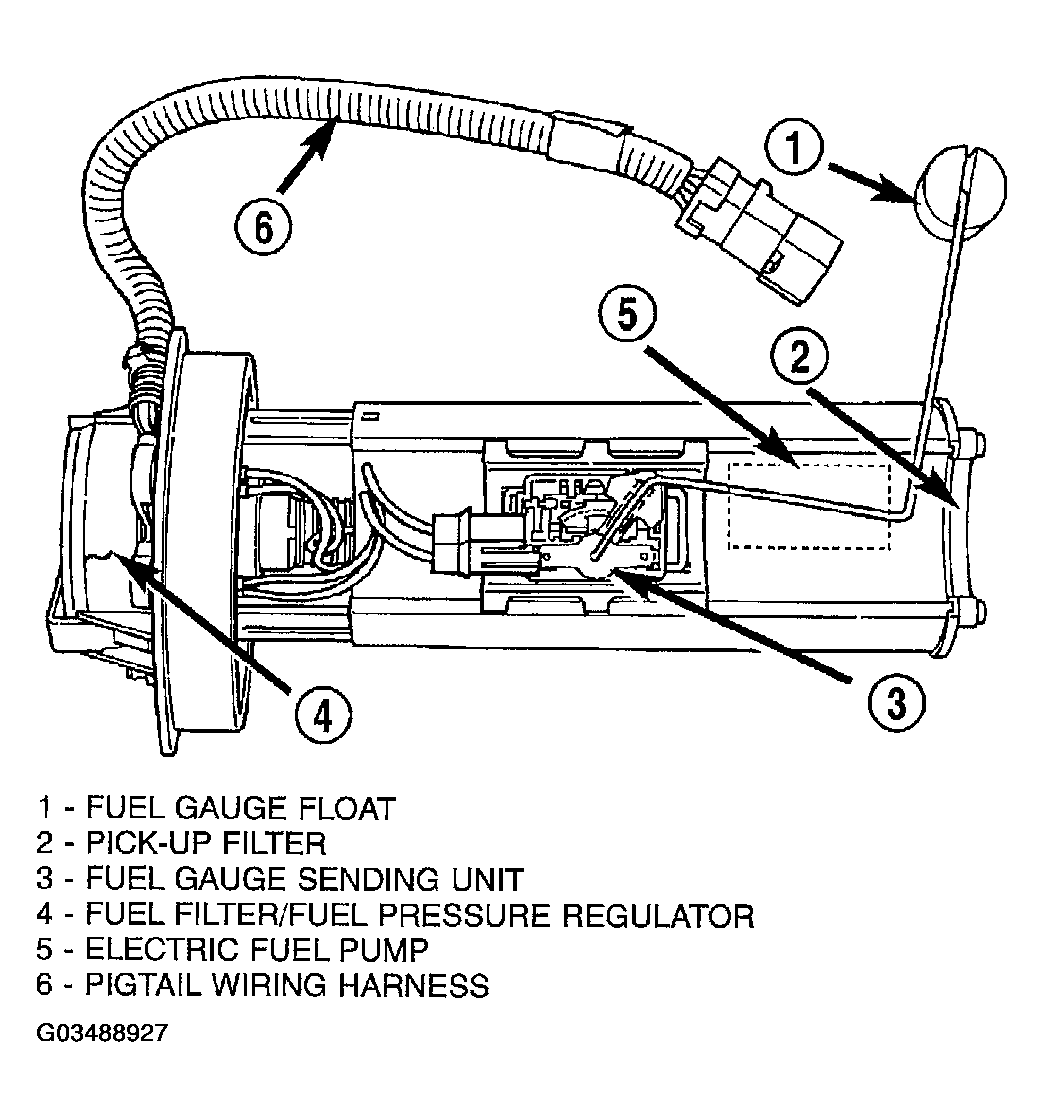

The fuel gauge sending unit (fuel level sensor) and float assembly is located on the side of fuel pump module ( Figure ) or ( Figure ). The fuel pump module is located inside of fuel tank.

2 Door Models:
1. Position sending unit into tracks. Note wire routing.
2. Push unit on tracks until lock tab snaps into notch.
3. Connect 2 sending unit wires into 4-way connector and install locking collar.
4. Connect 4-way electrical connector to module.
4 Door Models:
1. Position sending unit to pump module and snap into place.
2. Connect electrical connector to terminals.
Install fuel pump module. Refer to FUEL PUMP MODULE REMOVAL INSTALLATION .
Install fuel tank. Refer to FUEL TANK REMOVAL INSTALLATION .
