Fuel Pump Module: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: THE FUEL SYSTEM IS UNDER A CONSTANT PRESSURE (EVEN WITH ENGINE OFF). BEFORE SERVICING FUEL PUMP MODULE, FUEL SYSTEM PRESSURE MUST BE RELEASED.

Drain fuel tank and remove tank. Refer to FUEL TANK REMOVAL .
Thoroughly wash and clean area around pump module to prevent contaminants from entering tank.

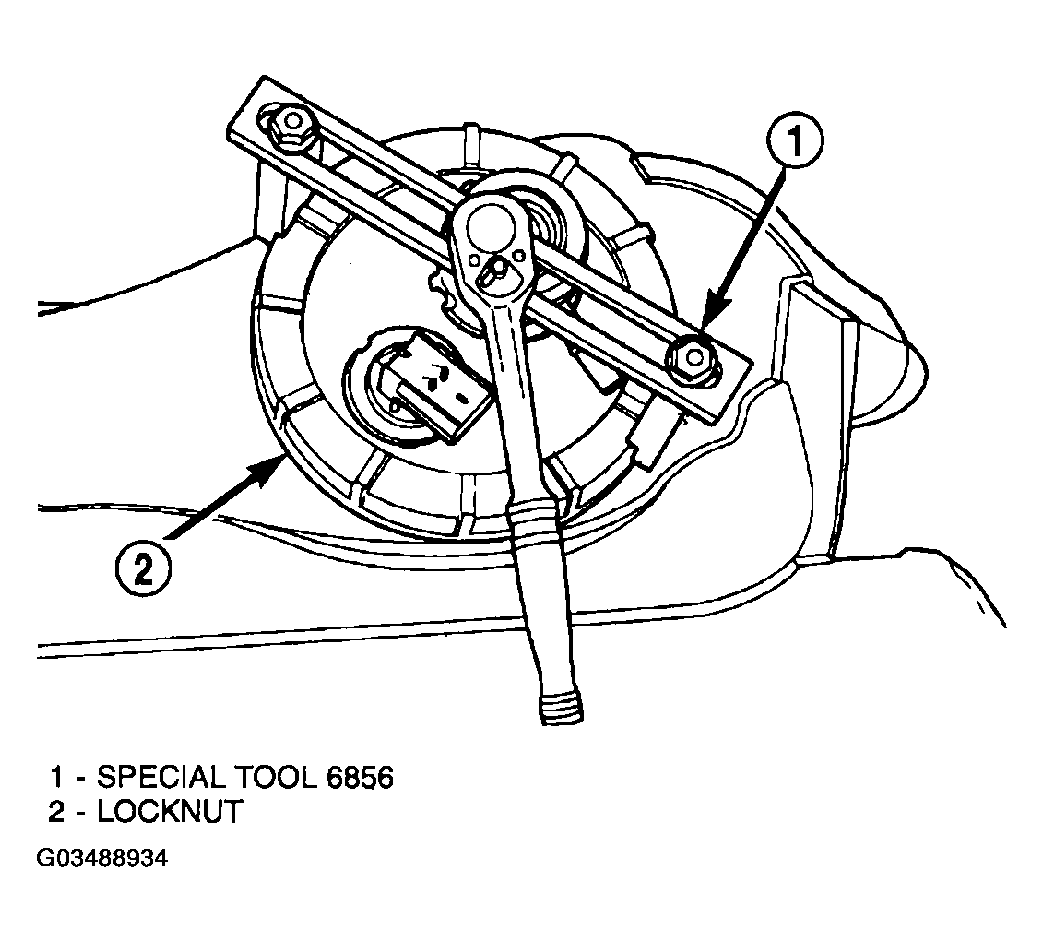

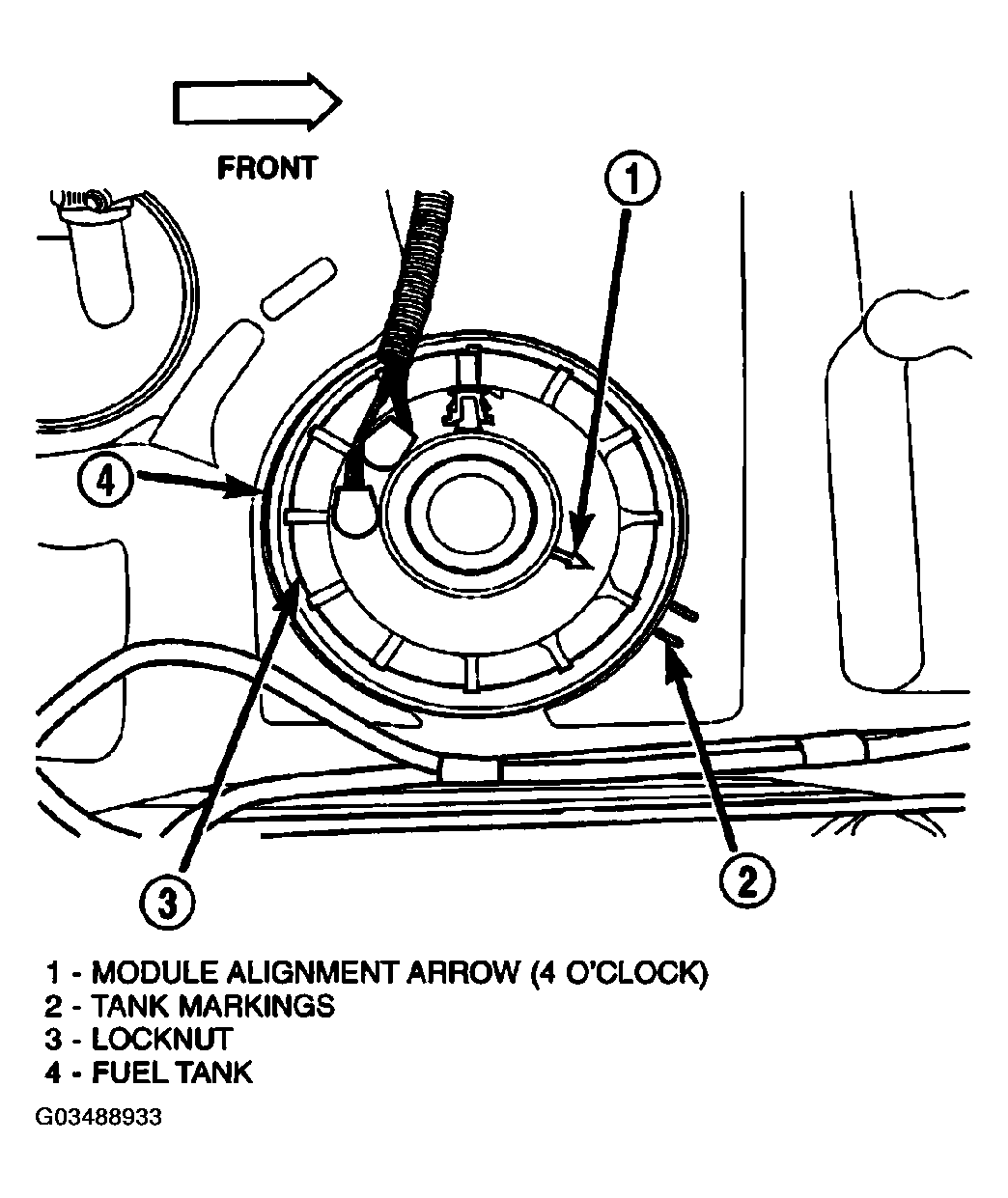

The fuel pump module locknut is threaded onto fuel tank ( Fig 1 ) or ( Figure ). Install Special Tool 6856 to fuel pump module locknut and remove locknut ( Figure ).
Remove module from fuel tank.

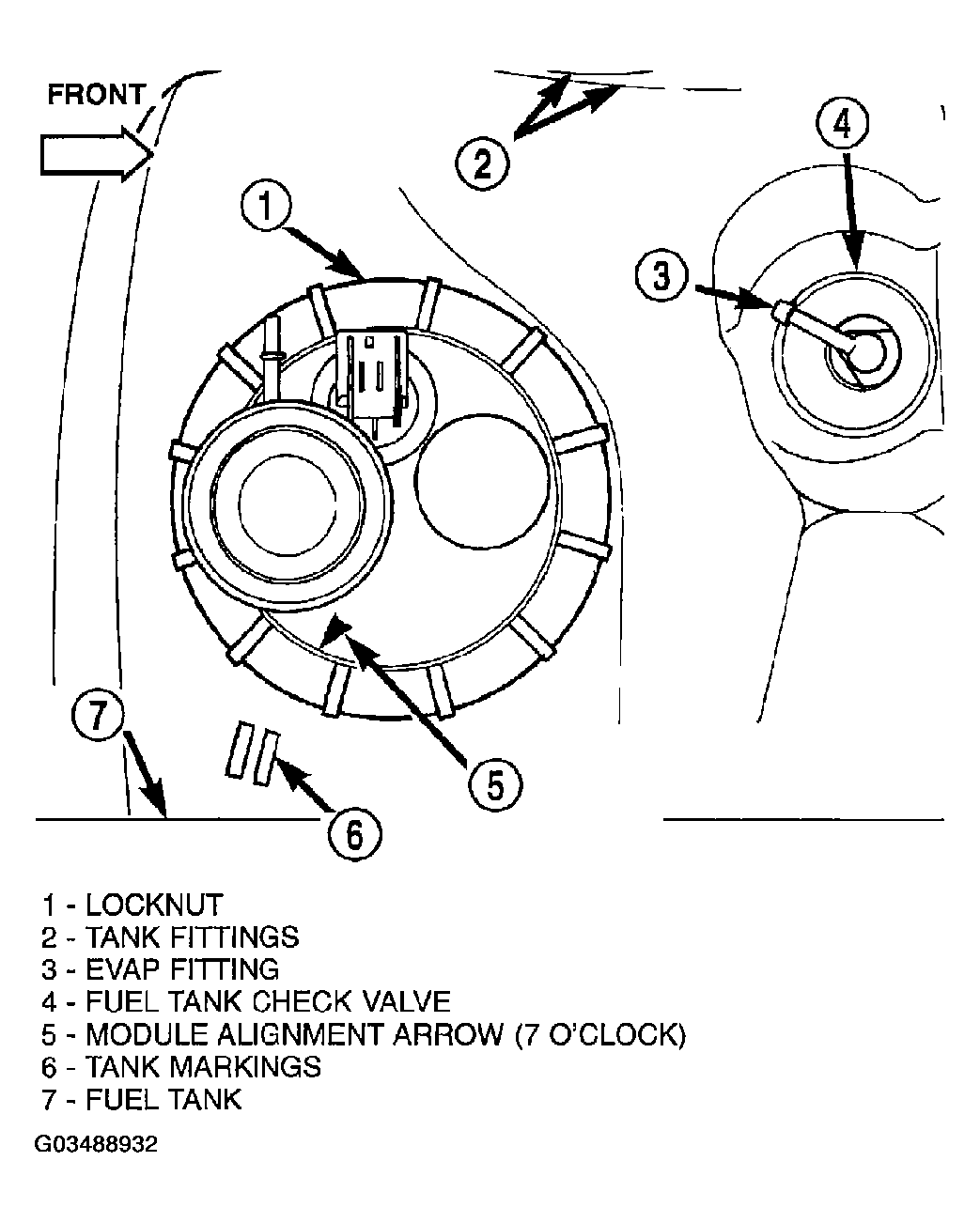

Fig 1: Removing Fuel Pump Module - 2 Door Models
Courtesy of DAIMLERCHRYSLER CORP.
