Carpets And Floor Mats: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seats. (Refer to REMOVAL Bench) or (Refer to REMOVAL Bucket)
  2. Remove door sill trim. (Refer to BODY/INTERIOR/DOOR SILL TRIM-REMOVAL  )
  3. Remove the cowl trim covers. (Refer to BODY/INTERIOR/COWL TRIM COVER-REMOVAL  )
  4. Remove seat belt anchors.
  5. Remove floor shift boot/floor console, if equipped. (Refer to BODY/INTERIOR/4WD FLOOR SHIFT BOOT-REMOVAL  )
  6. Remove rear stowage tray/storage box.
  7. Pull carpet out from under quarter panel trim and cab back panel trim.
  8. Fold carpet or mat toward center of cab.
  9. Remove carpet or mat through door opening (Fig 1 ).

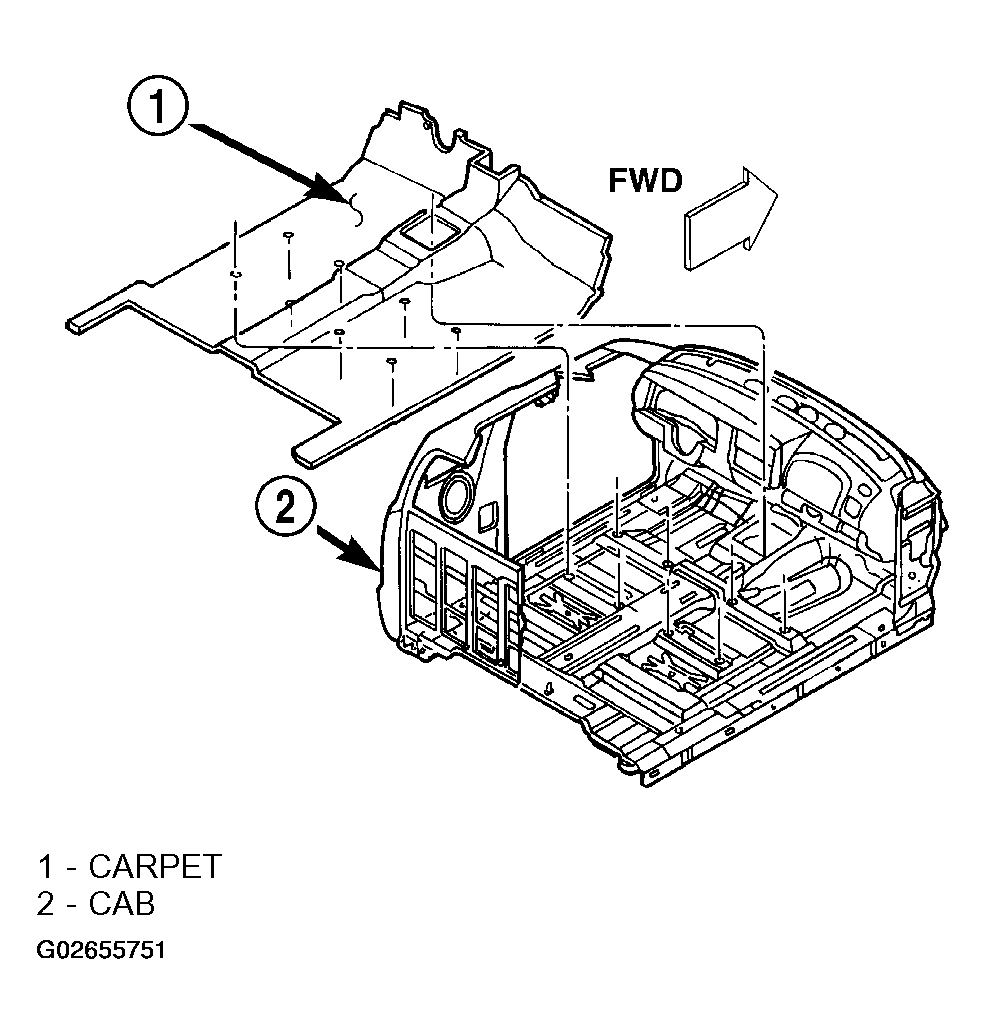

    Fig 1: Removing/Installing Floor Carpet Or Mat
    G02655751Courtesy of DAIMLERCHRYSLER CORP.
