Seat-Front Bucket: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove side shield and disengage power seat switch connector. (Fig 1 )
    NOTE: If the vehicle is equipped with a 40/20/40 seat, remove bucket seats and console as one assembly.
  2. Move seat to full forward position.
  3. Remove rear screws attaching trim cover to seat track (Fig 2 ).
  4. Remove rear bolts attaching rear seat track to floor pan.
  5. Move seat to full rearward position.
  6. Remove front screws attaching trim cover to seat track (Fig 2 ).
  7. Remove front bolts attaching front seat track to floor pan.
    NOTE: Do not actuate recliner or track adjuster once bolts are removed.
  8. Tilt setback forward and lift seat out through door.

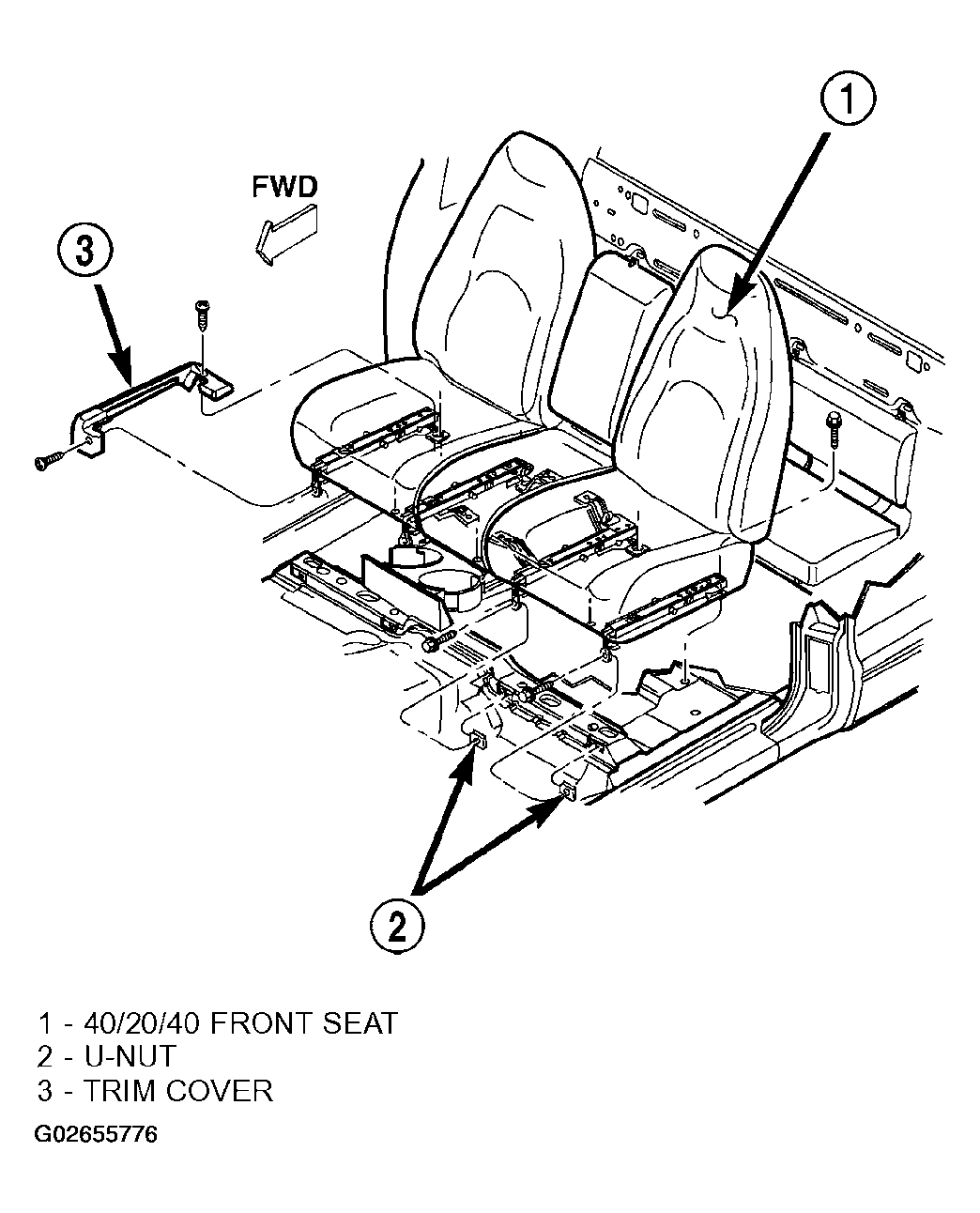

    Fig 1: Removing Rear Screws Attaching Trim Cover To Seat Track
    G02655776Courtesy of DAIMLERCHRYSLER CORP.

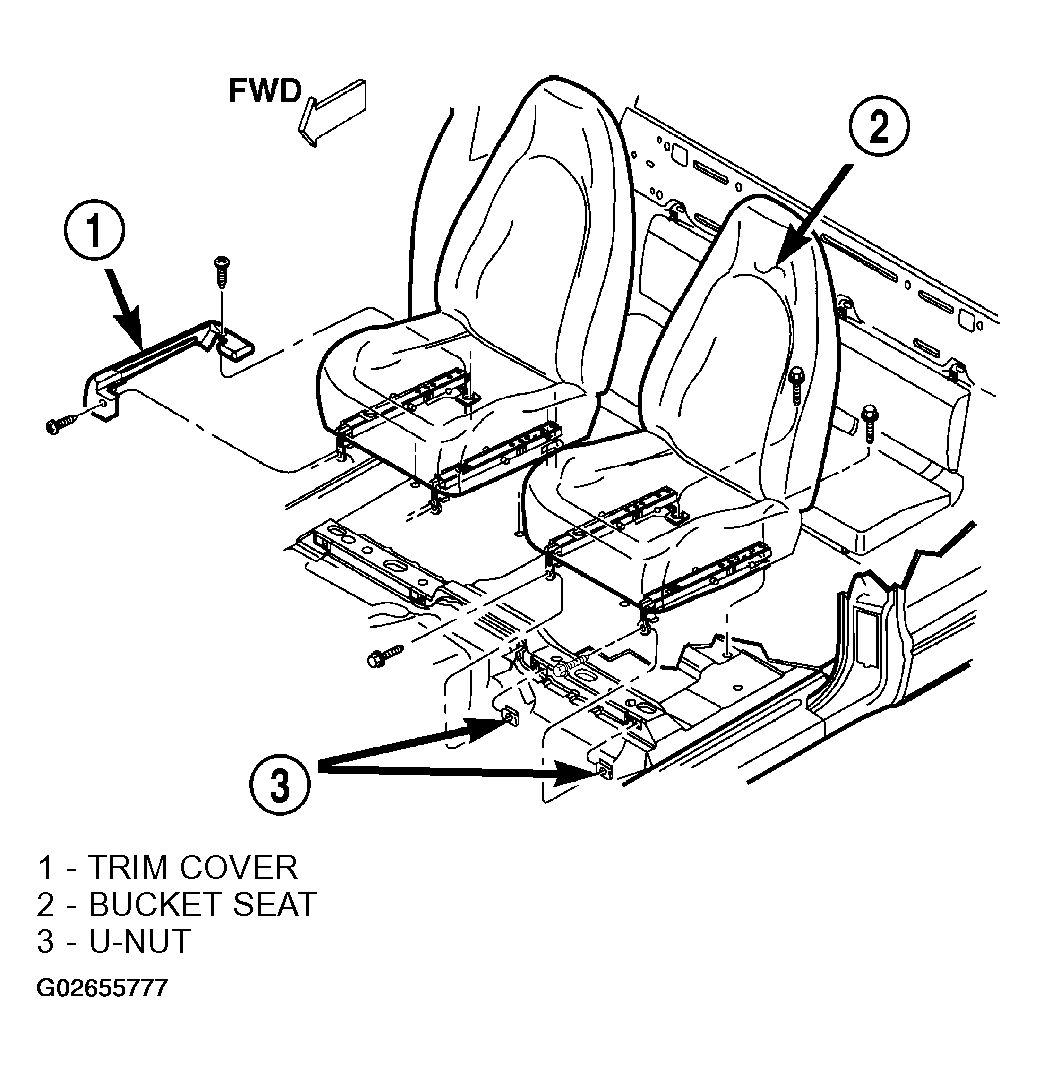

    Fig 2: Removing Front Screws Attaching Trim Cover To Seat Track
    G02655777Courtesy of DAIMLERCHRYSLER CORP.
