Installation-Floor Shift Boot

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Position shift boot/bezel assembly on gear shift.
Press shift boot/bezel onto the floor panel.
Push knob onto gear shift.
Install nut attaching shift knob to gear shift and tighten to 27 N.m (20 ft. lbs.).
Press insert into shift knob.

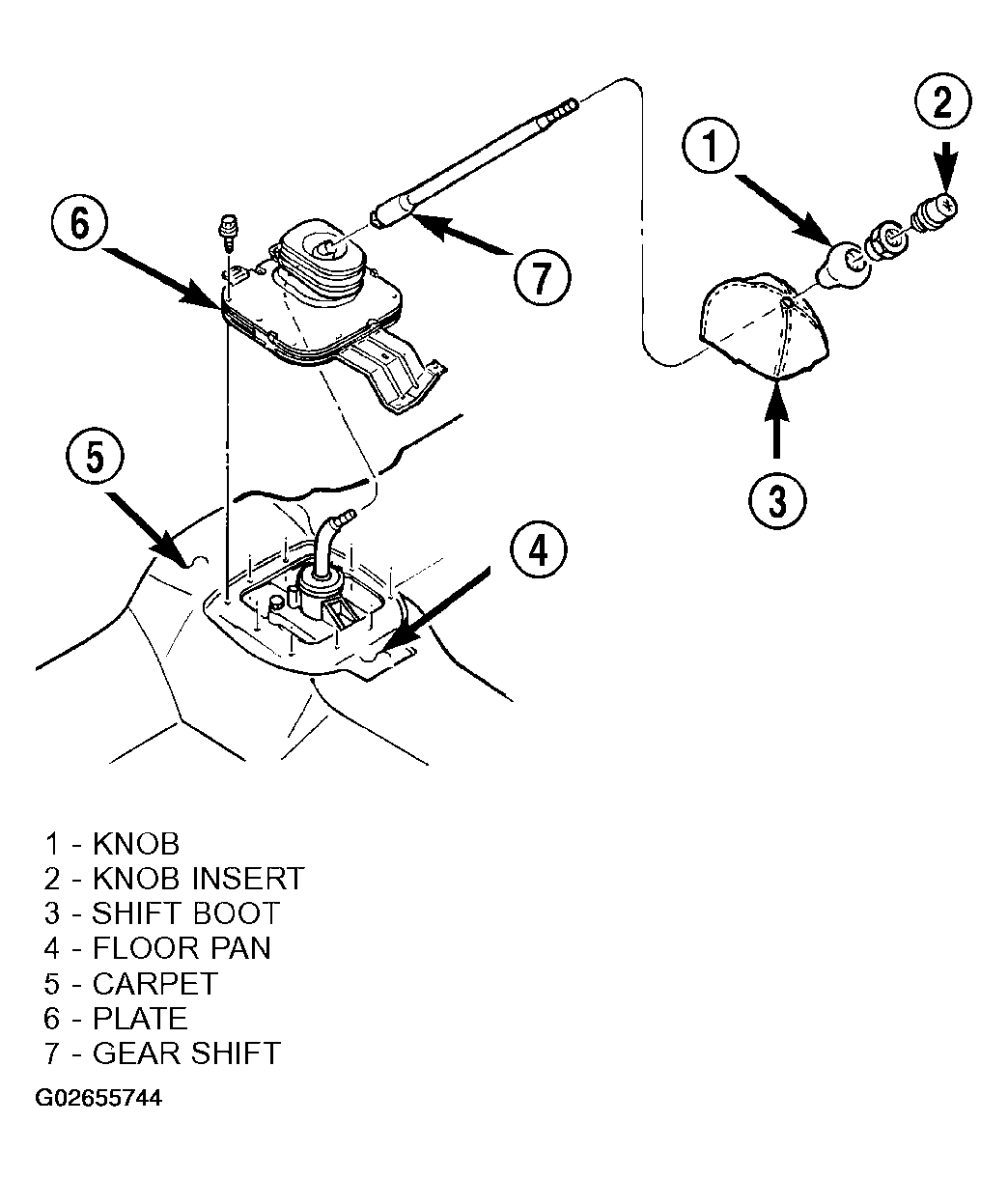

Fig 1: Removing/Installing Shift Knob Insert
Courtesy of DAIMLERCHRYSLER CORP.

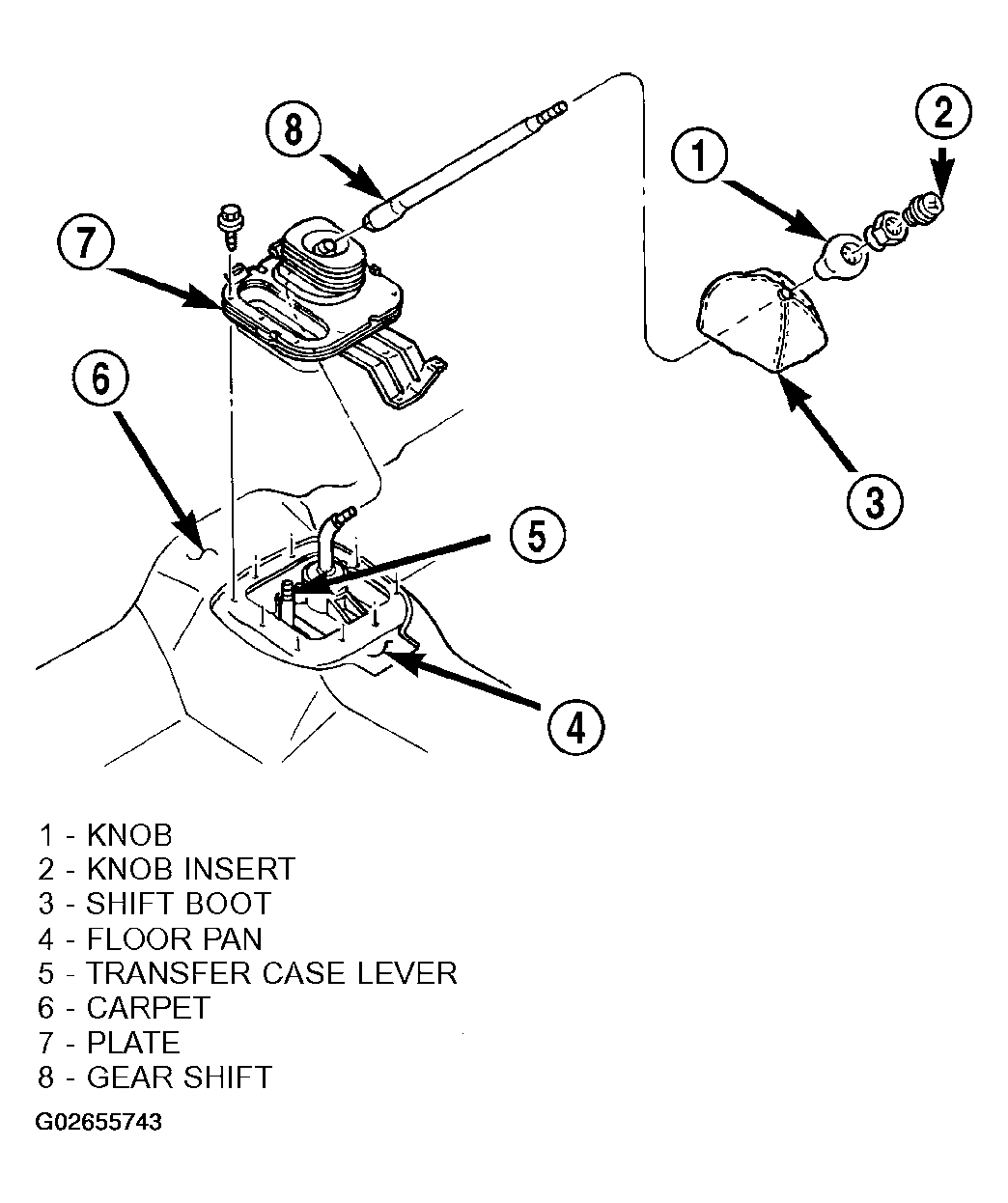

Fig 2: Removing/Installing Shift Boot-Manual Transmission
Courtesy of DAIMLERCHRYSLER CORP.
