Section 58 (Power Steering Pump): Pulley: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: On vehicles equipped with the 4.7L, Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
  1. Remove pump assembly, (Refer to REMOVAL-POWER STEERING PUMP-4.7L  ) OR (Refer to REMOVAL-POWER STEERING PUMP-3.9L & 5.9L  ).
  2. Remove pulley from pump with Puller C-4333 (Fig 1 ).

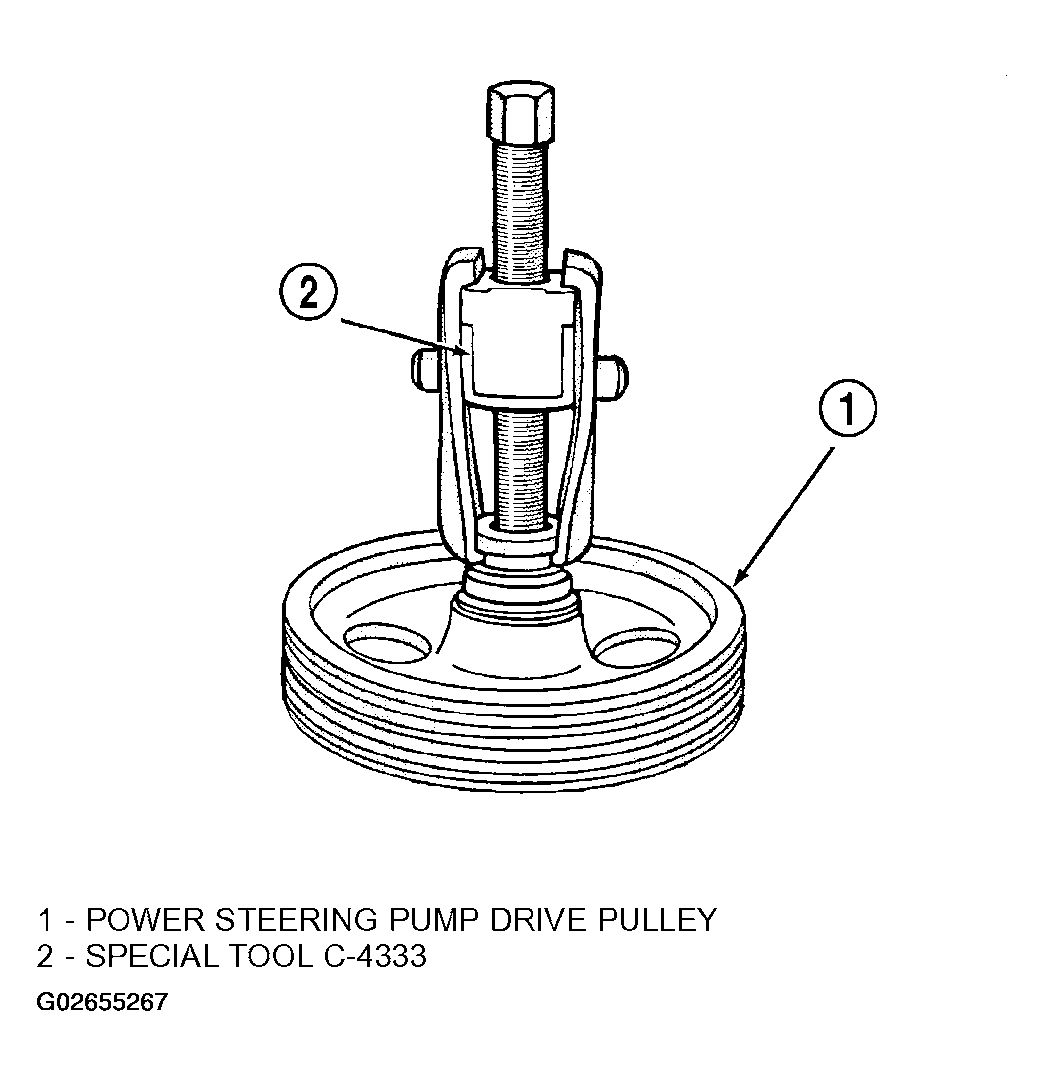

    Fig 1: Removing Pulley From Pump With Puller
    G02655267Courtesy of DAIMLERCHRYSLER CORP.
