Removal-Power Steering Pump-4.7L

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the serpentine drive belt, (Refer to DRIVE BELTS ).
  2. Remove return hose from the pump reservoir and drain the pump.
  3. Remove power steering pressure switch connector and remove pressure line from the bottom of the pump.
  4. Remove the oil cooler mounting bolt from the pump bracket if equipped.
  5. Remove 3 pump mounting bolts (Fig 1 ) through pulley access holes.

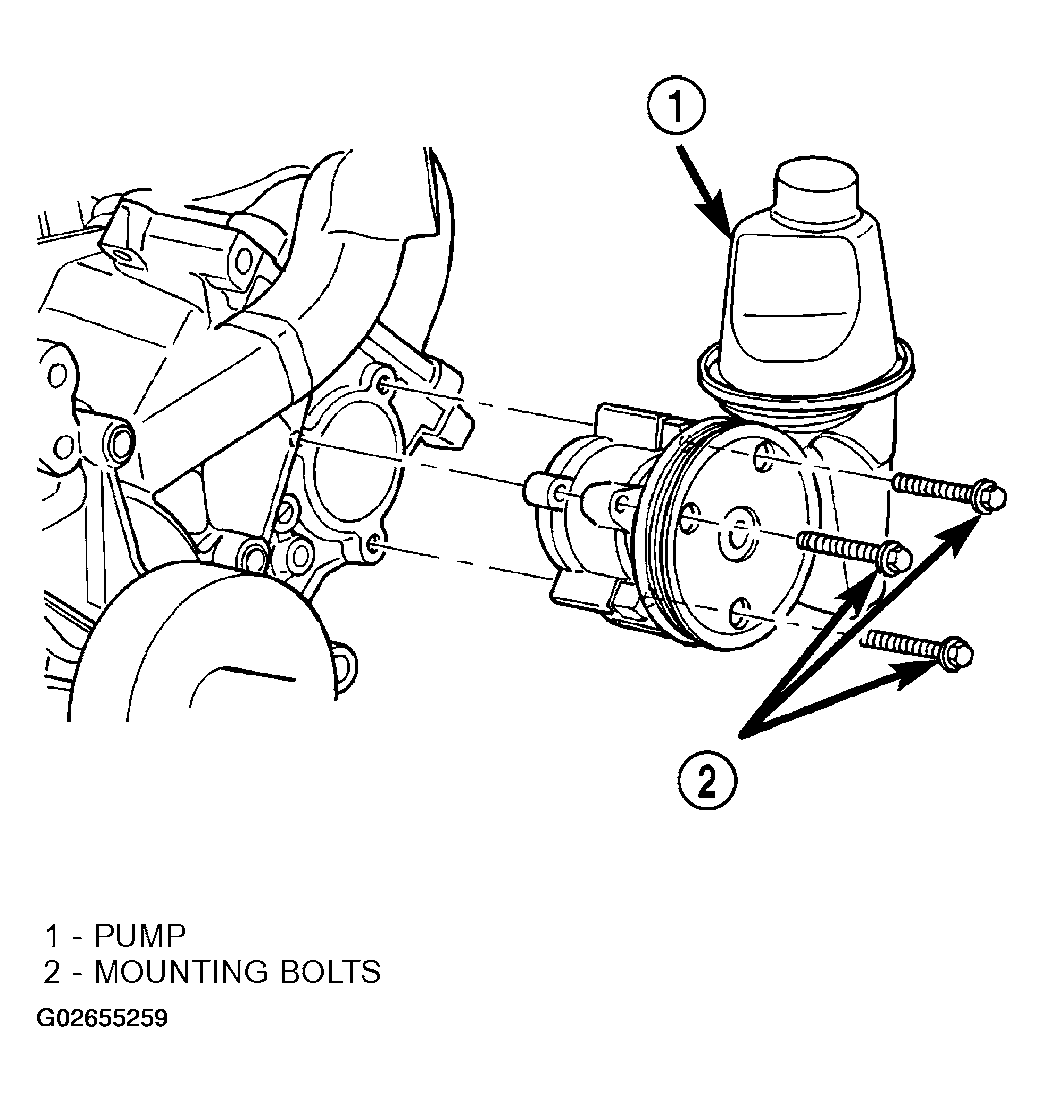

    Fig 1: Removing 3 Pump Mounting Bolts
    G02655259Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the pump from the left cylinder head.
