Removal-Power Steering Pump-3.9L & 5.9L

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the serpentine drive belt, (Refer to DRIVE BELTS ).
  2. Clamp the fluid return hose and disconnect the hoses from the power steering pump. Cap the fittings.
  3. Remove battery ground cable and bracket bolts.
  4. Remove the pump assembly (Fig 1 ).
    Fig 1: Removing Pump Assembly
    G02655260Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the pump pulley, (Refer to PULLEY  ). This will allow access to the pump attaching screws.
  6. Remove the pump bracket bolts (Fig 2 ) and remove the bracket.

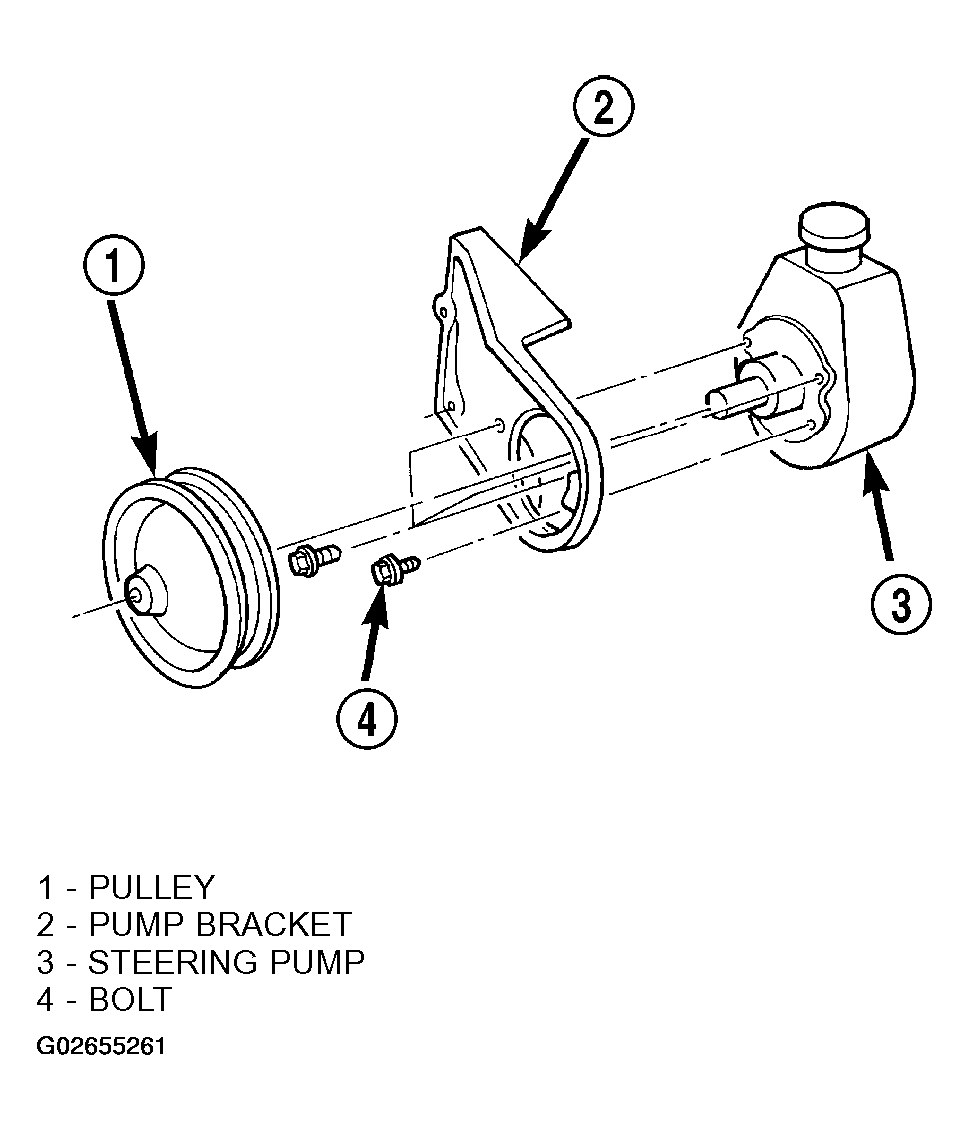

    Fig 2: Installing Pump Mounting Bracket
    G02655261Courtesy of DAIMLERCHRYSLER CORP.
