Plate, Brake Backing: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove wheel and tire assembly.
  3. Remove the disc brake caliper. Refer to CALIPER, DISC BRAKE, REMOVAL .
  4. Remove the caliper adapter. Refer to ADAPTER, DISC BRAKE CALIPER, REMOVAL .
  5. Remove the rotor. Refer to ROTOR, BRAKE, REMOVAL .
  6. Remove the axle shaft. Refer to REMOVAL .
  7. Remove the park brake shoes. Refer to SHOES, PARKING BRAKE, REMOVAL .
  8. Remove the parking brake cable from the brake lever.

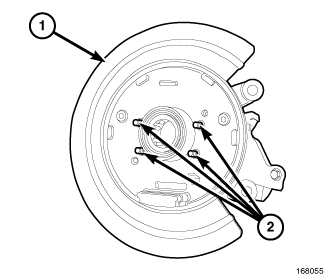

    GC0083393Courtesy of CHRYSLER GROUP, LLC
    1 - SUPPORT PLATE
    2 - MOUNTING STUDS
  9. Remove the bolts (2) attaching the support plate (1) to the axle and remove the support plate.
