Shoes, Parking Brake: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

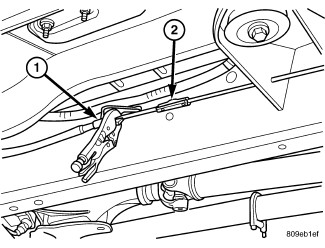

| 1 - LOCKING PLIERS |
| 2 - PARKING BRAKE CABLE |
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly.
- Remove the disc brake caliper. Refer to CALIPER, DISC BRAKE, REMOVAL .
- Remove the disc brake rotor. Refer to ROTOR, BRAKE, REMOVAL .
- Lockout the parking brake cable (2).

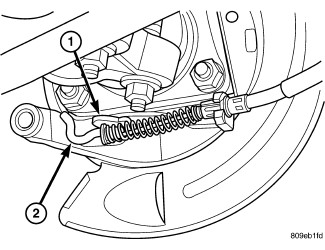

1 - LEVER 2 - CABLE END - Disengage the park brake cable (2) from behind the rotor assembly to allow easier disassembly of the park brake shoes.
- Remove the axleshaft (1). Refer to REMOVAL .
- Disassemble the rear park brake shoes (4).
