Bracket, Caliper Mounting: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

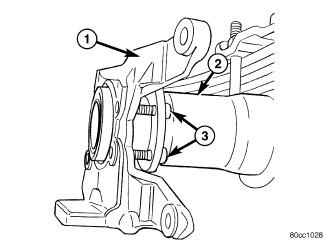

Leaf spring system shown, coil spring system similar.

GC0083381Courtesy of CHRYSLER GROUP, LLC
1 - CALIPER ADAPTER MOUNT
2 - AXLE TUBE
3 - MOUNTING STUDS
  1. Remove wheel and tire assembly.
  2. Remove the disc brake caliper. Refer to CALIPER, DISC BRAKE, REMOVAL .
  3. Remove the caliper adapter. Refer to ADAPTER, DISC BRAKE CALIPER, REMOVAL .
  4. Remove the rotor. Refer to ROTOR, BRAKE, REMOVAL .
  5. Remove the axle shaft. Refer to REMOVAL .
  6. Remove the park brake shoes. Refer to SHOES, PARKING BRAKE, REMOVAL .
  7. Remove the parking brake cable from the brake lever.
  8. Remove the nuts (3) attaching the support plate to the axle and remove the support plate.
  9. Remove the caliper adapter mount (1) from the axle housing (2).
