Valve, Exhaust Gas RECIRCULATION (EGR): Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover.
  3. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL, 6.7L .
  4. Remove the front EGR tube. Refer to TUBE, EXHAUST GAS RECIRCULATION (EGR), CROSSOVER, REMOVAL .
    GC0174021Courtesy of CHRYSLER GROUP, LLC

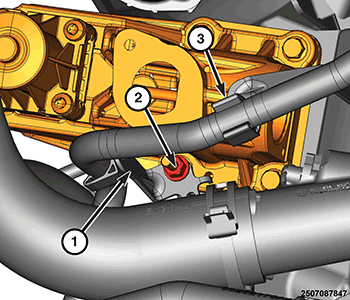

  5. Remove the nut (2) and position the coolant hose aside (1, 3).
    GC0174004Courtesy of CHRYSLER GROUP, LLC

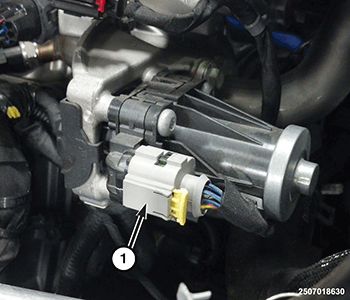

  6. Disconnect the EGR valve wire harness connector (1).
    GC0173995Courtesy of CHRYSLER GROUP, LLC

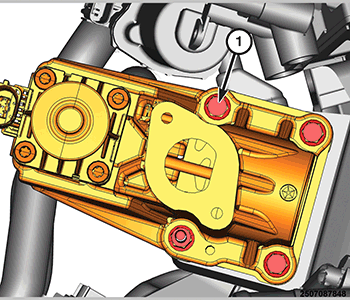

  7. Remove the bolts (1), nut and the EGR valve
    GC0174017Courtesy of CHRYSLER GROUP, LLC

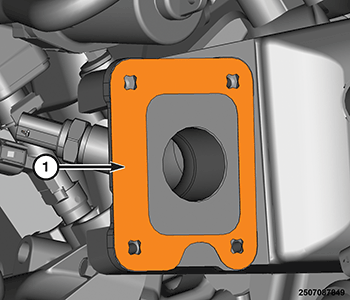

  8. Remove and discard the gasket (1).
